Detailed Specifications

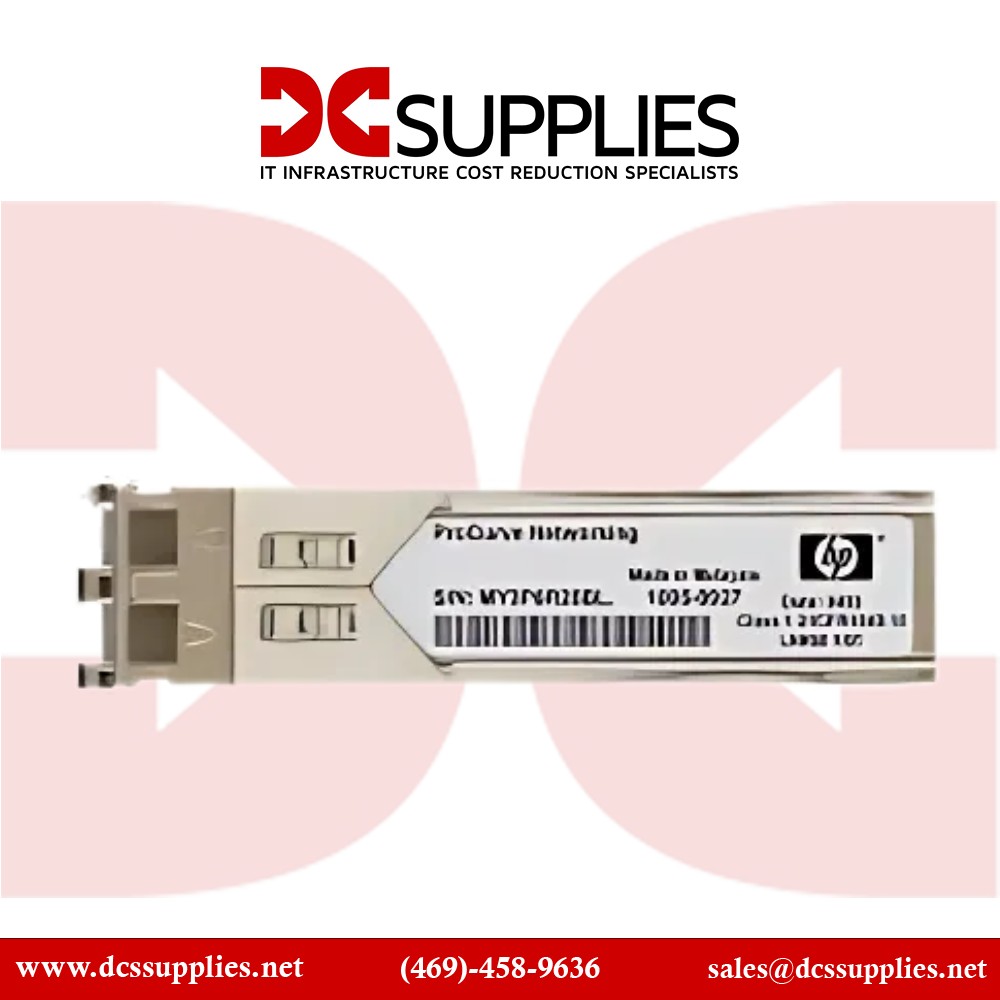

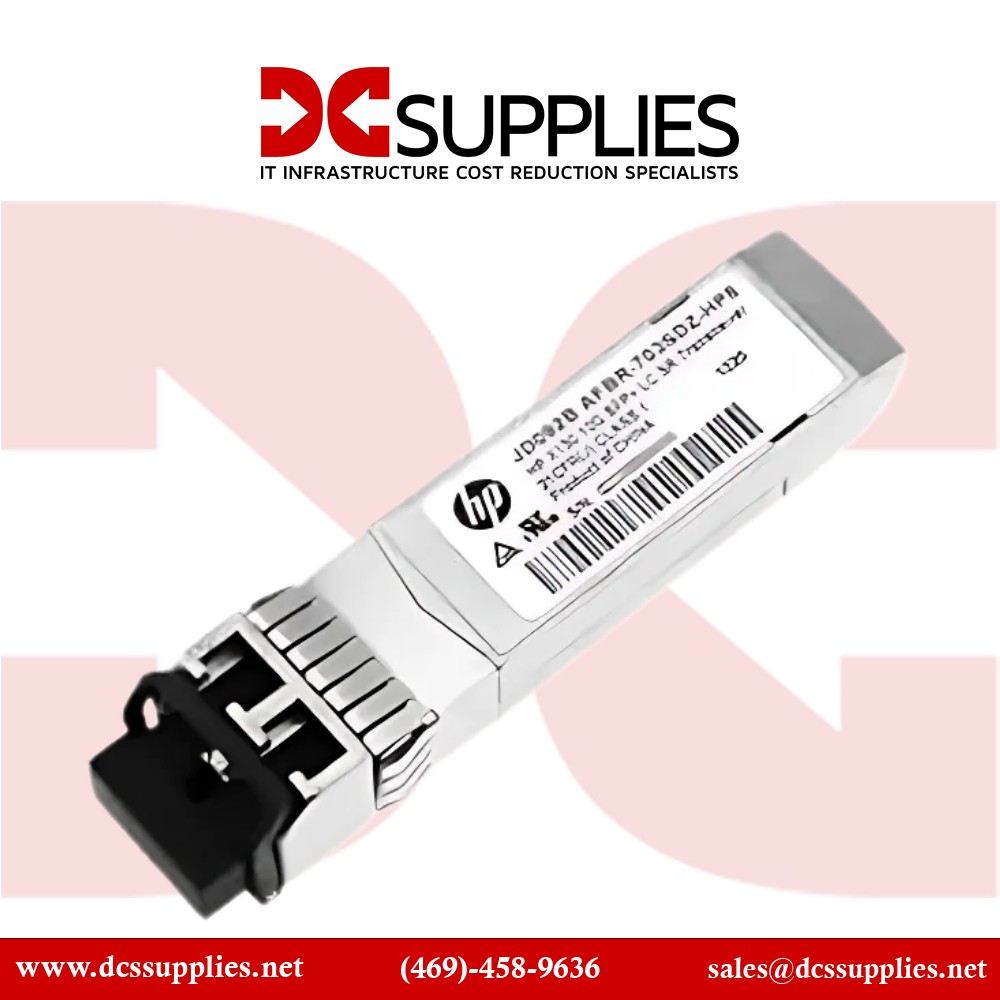

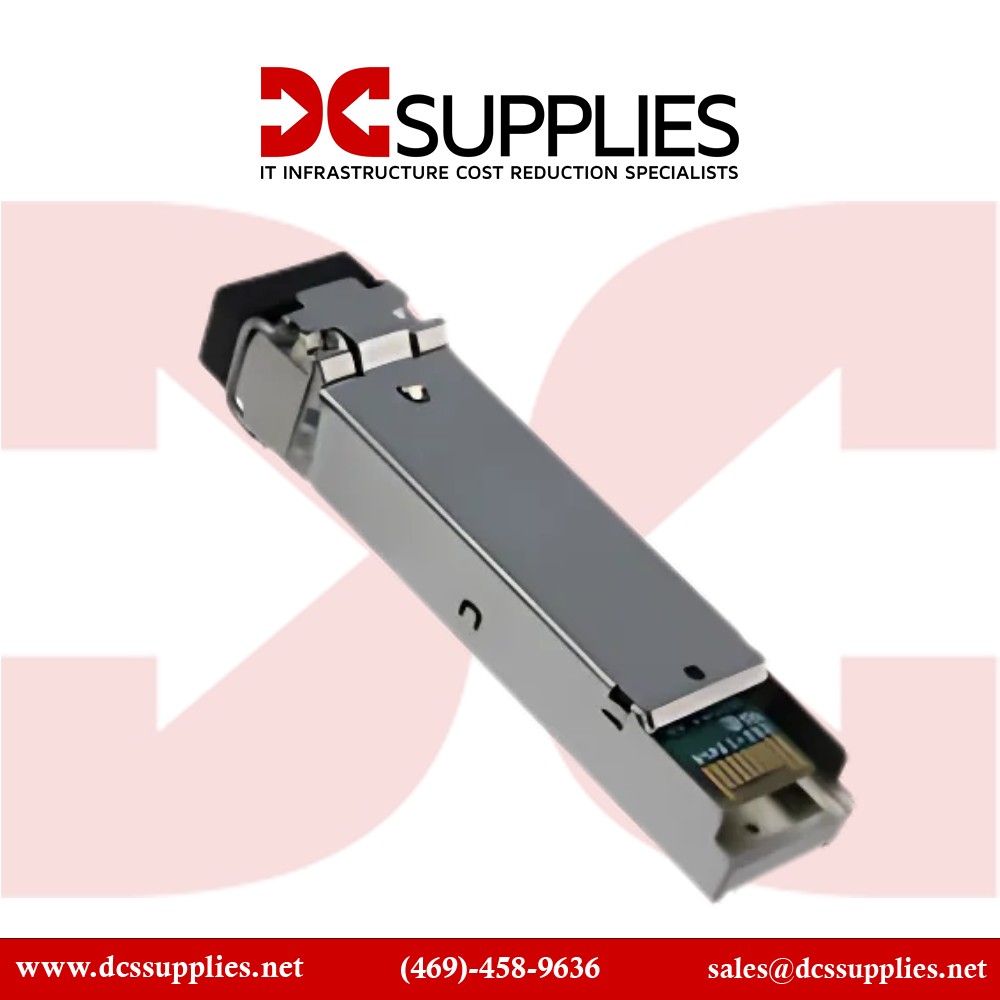

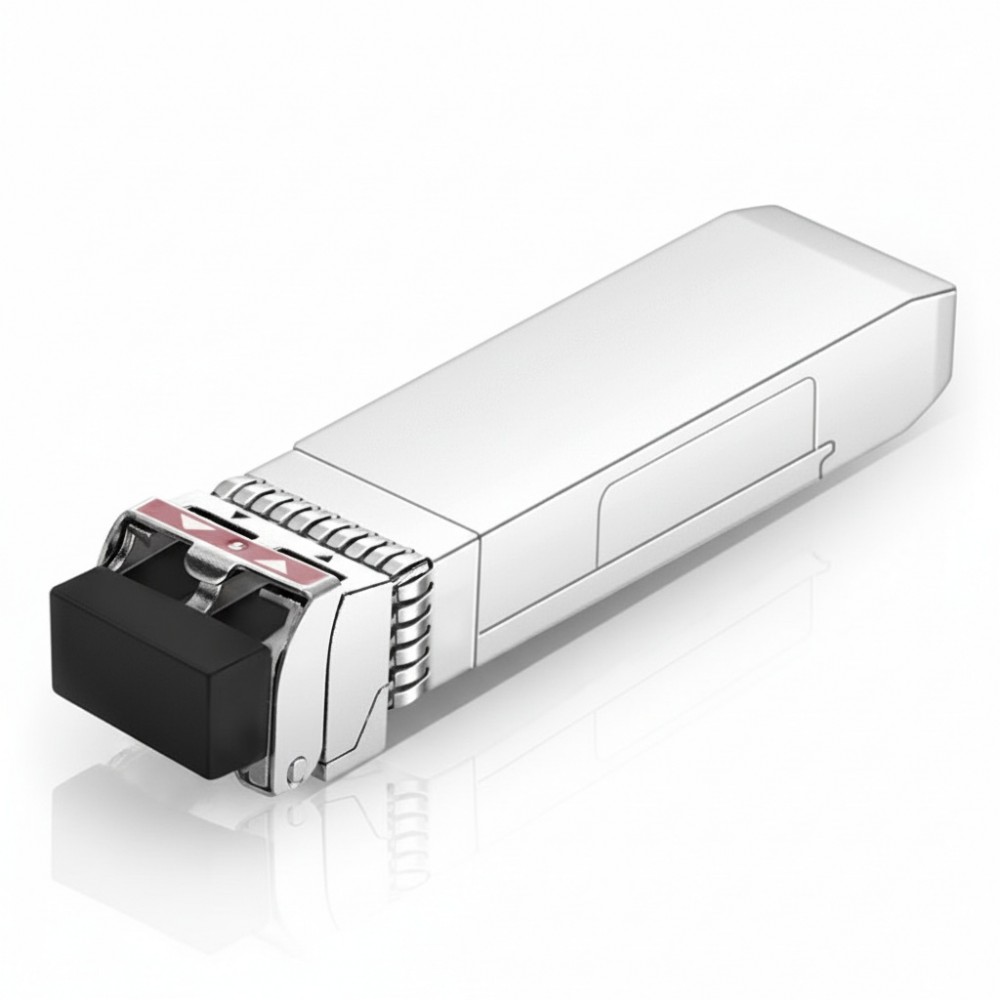

HPE JD094A - 10 Gb SFP+ Transceiver Module 10 km Single-Mode Fibre
Overview
The HPE JD094A is a high-performance SFP+ optical transceiver that supports 10 Gigabit Ethernet over single-mode fibre (SMF) with a reach up to 10 km. It uses the 1310 nm wavelength and a duplex LC connector form-factor, making it suitable for enterprise aggregation links, data-centre inter-rack or inter-building fibre runs where single-mode fibre infrastructure exists. Typical deployment: linking two aggregation switches across a campus or data-centre with standard SMF and LC patching.It fits into SFP+ ports in HPE/Aruba networking equipment and supports hot-plug operation and digital diagnostics monitoring (DDM) in compliant systems.
Key Features
10 Gbps data rate over SMF enables high-bandwidth uplinks and backbone fibre connectivity.
1310 nm wavelength with up to ~10 km reach on single-mode fibre allows building-to-building or campus links.
Duplex LC connector in SFP+ form enables modular installation and hot-swapping without major downtime.
Built-in Digital Diagnostics Monitoring (DDM) support allows monitoring of optical signal parameters when supported by host gear.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) |
| Part Number | JD094A |
| Product Type | Optical Transceiver Module - 10 Gb SFP+ (10GBASE-LR) |
| Key Specification | Data Rate: 10 Gbps |
| Key Specification | Wavelength: 1310 nm |
| Key Specification | Maximum Reach: ~10 km over single-mode fibre |
| Management | Hot-swappable SFP+ module; DDM supported |
| Power Requirements | Typical power supply +3.3 V, power consumption < ~1.3W |
| Dimensions & Weight | Standard SFP+ form-factor (approx ~13.4 mm × 56.5 mm × ~8-9 mm) |
| Warranty | Standard HPE networking optics warranty (verify region) |
