Detailed Specifications

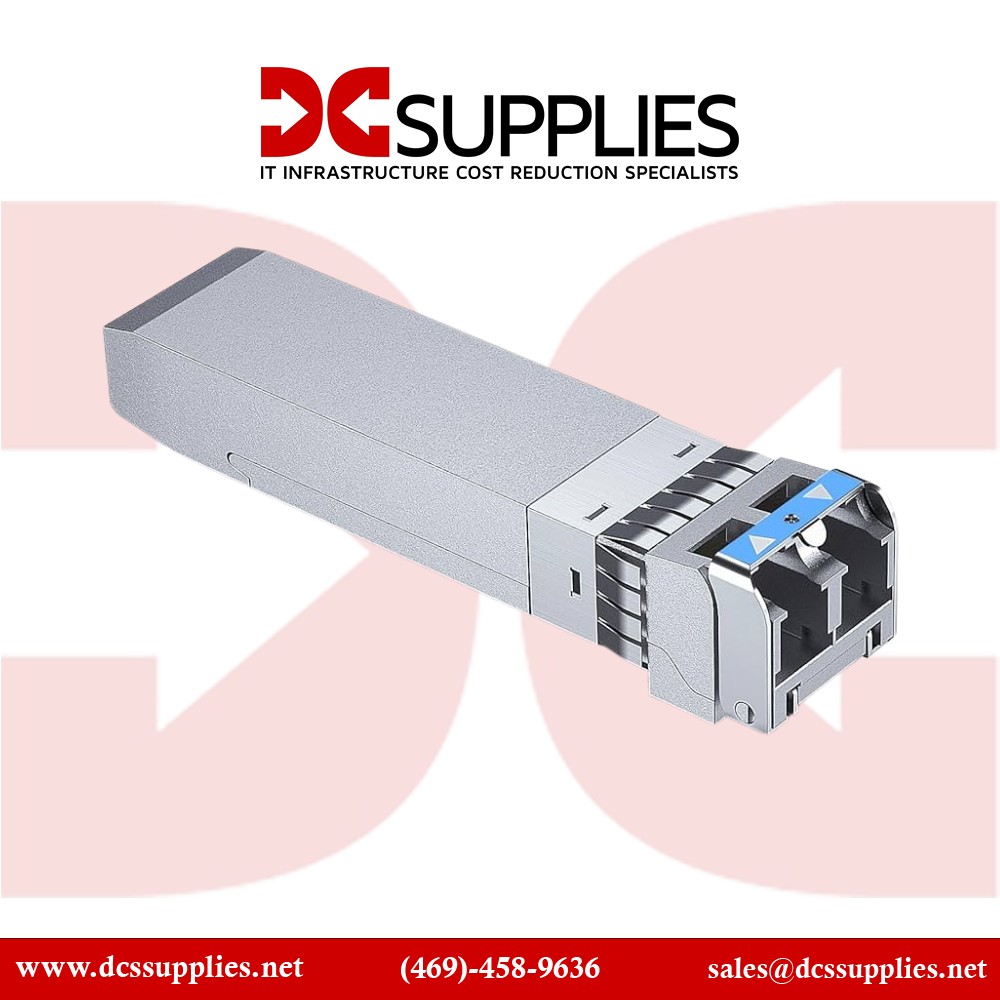

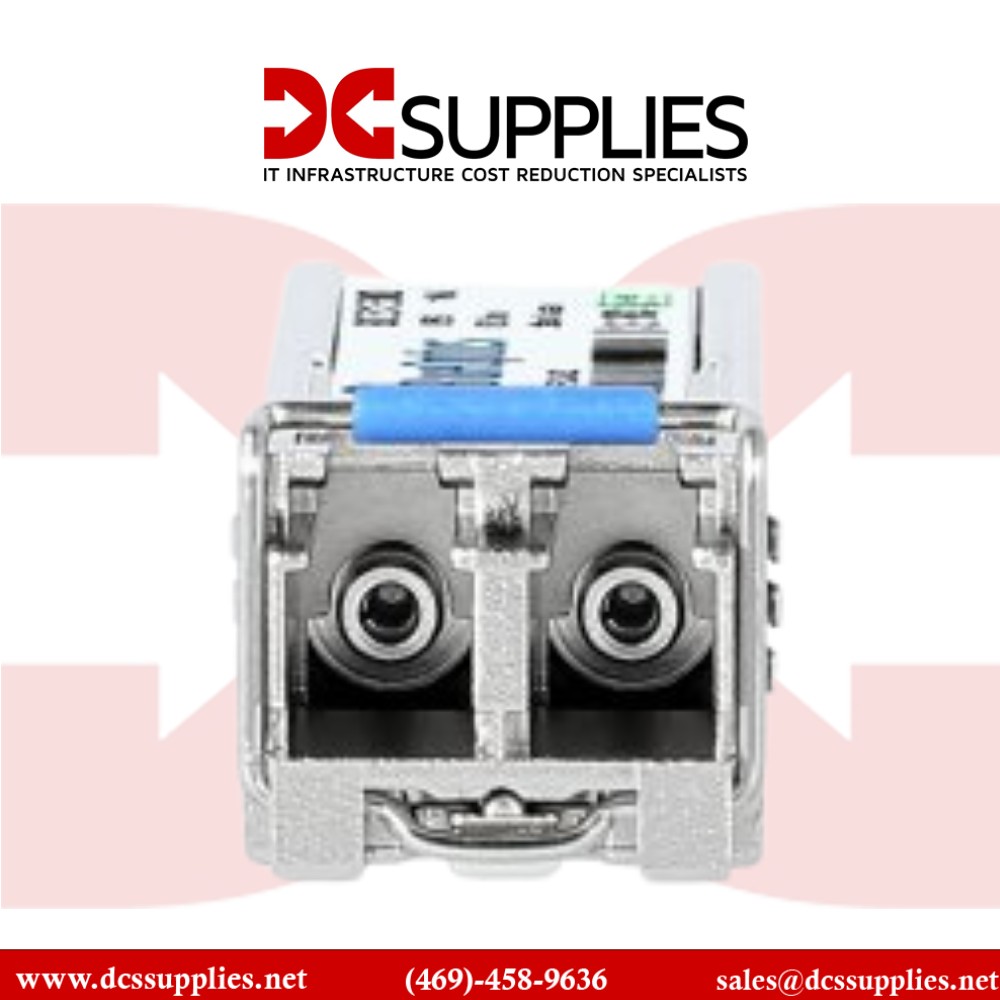

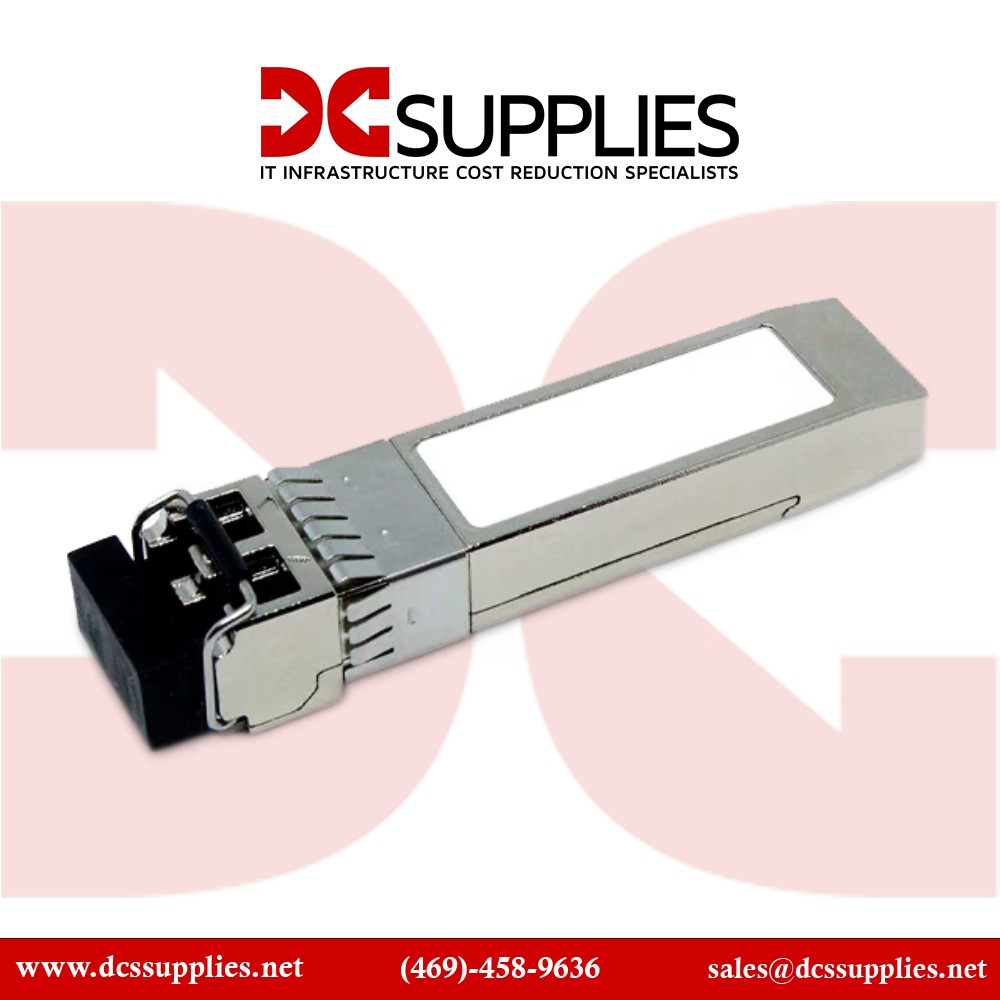

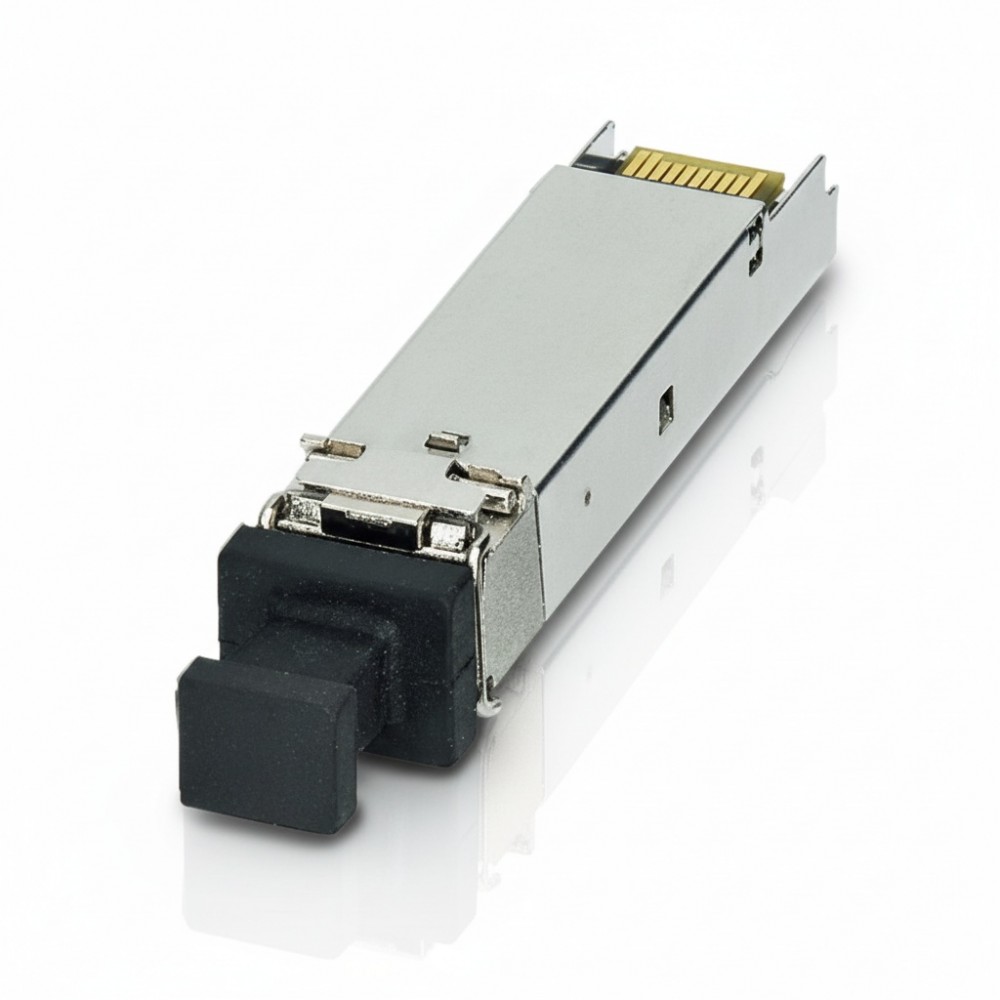

HPE JW087A - 1 Gb SFP Transceiver Module (1000BASE-LX Single-Mode)
Overview
The HPE JW087A is a 1-gigabit small form-factor pluggable (SFP) optical transceiver module designed for enterprise network uplinks and fibre backbone links. It supports the 1000BASE-LX standard, uses a 1310 nm wavelength over single-mode fibre (SMF), and is rated for distances up to approximately 10 km in typical installations. It fits in standard SFP ports in HPE/Aruba switches and mobility controllers and enables long-reach fibre links between wiring closets, buildings or campus segments. In deployment you might use one JW087A module per end of a fibre run linking two campus buildings, providing a clean gigabit uplink without the complexity of higher-speed modules.
Key Features
1 Gbps data rate using the 1000BASE-LX standard for longer-reach single-mode fibre links.
1310 nm wavelength over SMF with reach up to about 10 km×suitable for inter-building links or campus backbone segments.
LC duplex connector form-factor in SFP module×hot-swappable and compatible with HPE/Aruba SFP-port equipment.
Supports digital diagnostics (DOM/ DDM) for monitoring optical signal quality when used in supported systems.
Technical Specifications
| Specification | Detail |
|---|
| Brand | HPE (Hewlett Packard Enterprise) / Aruba Networking |
| Part Number | JW087A |
| Product Type | Optical Transceiver Module - 1 Gb SFP (1000BASE-LX) |
| Key Specification | Data Rate: 1 Gbps |
| Key Specification | Wavelength: 1310 nm |
| Key Specification | Reach: Up to ~10 km over single-mode fibre |
| Management | Hot-swappable SFP module; supports DOM diagnostics |
| Power Requirements | +3.3 V typical supply (standard SFP form-factor) |
| Dimensions & Weight | Standard SFP size (~13.4 mm × 56.5 mm × ~8.5 mm) |
| Warranty | Limited lifetime (per vendor specification) |
