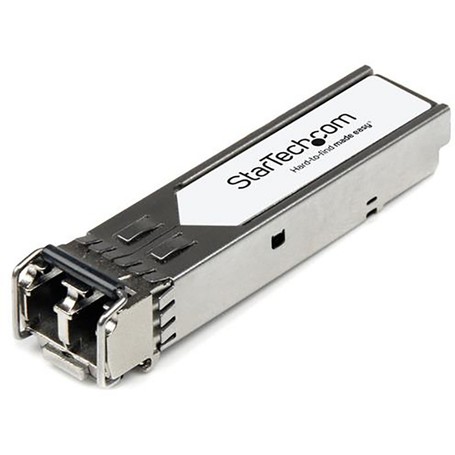

The StarTech MASFP10GBLR is a 10 Gigabit SFP+ transceiver engineered for long-range fiber connectivity in enterprise and data center networks. It is used by network engineers to extend uplinks between switches, routers, and aggregation layers over single-mode fiber where copper or short-range optics are not viable.
This module supports 10GBASE-LR operation at 1310 nm over single-mode fiber, delivering up to 10 km transmission distance with full 10 Gbps throughput. It includes Digital Diagnostics Monitoring (DDM) for real-time optical performance tracking and operates with low power consumption (<1.2W), making it suitable for dense switching environments.
Designed for Cisco Meraki compatibility, it is fully programmed and tested for seamless integration with supported switches and routers. The hot-swappable SFP+ form factor allows live installation or replacement without network downtime.
It is ideal for long-distance backbone links and campus interconnects. It should not be used for multimode fiber or short-range SR applications where different optics are required.
10GbE SFP+ for long-range SMF links
Up to 10km transmission over single-mode fiber
LC duplex interface for standard fiber patching
DDM support for optical link monitoring
Hot-swappable for live network upgrades
| Specification | Details |
|---|---|
| Brand | StarTech |
| Part Number | MASFP10GBLR |
| Product Type | SFP+ Transceiver Module |
| Data Rate | 10 Gbps |
| Standard | 10GBASE-LR |
| Fiber Type | Single-mode fiber (SMF) |
| Wavelength | 1310 nm |
| Max Distance | 10 km (6.2 miles) |
| Connector | LC Duplex |
| Form Factor | SFP+ |
| Monitoring | Digital Diagnostics (DDM) |
| Power Consumption | < 1.2 W |
| Hot Swappable | Yes |
| Compatibility | Cisco Meraki MA-SFP-10GB-LR |
