Detailed Specifications

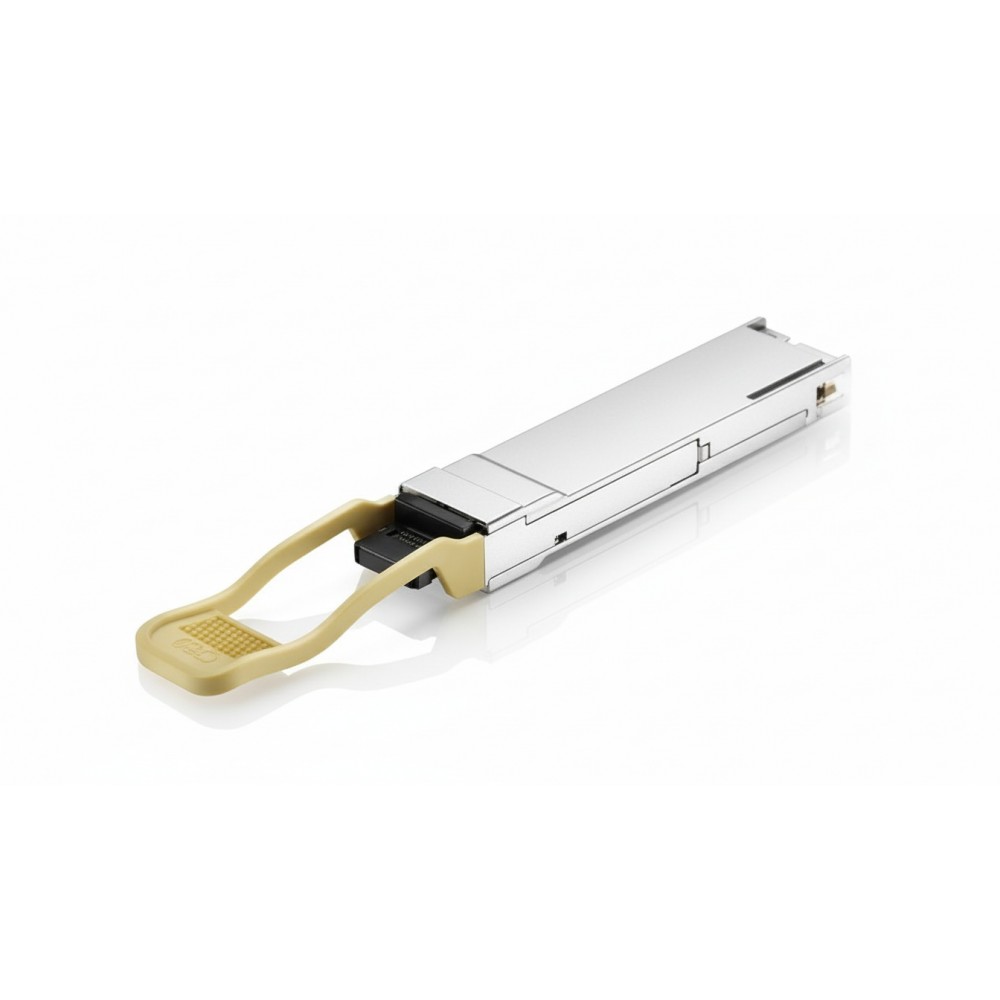

HPE Q7F11A 40GBASE-SR4 QSFP+ Optical Transceiver
Overview
The HPE Q7F11A is a QSFP+ transceiver module designed for 40 Gigabit Ethernet over multimode fiber. It uses 850 nm optics and supports link distances up to ~100 m on OM3 fiber and more on OM4, enabling high-density, high-throughput connections in data-center and HPC environments. The module is hot-pluggable, supports digital diagnostics monitoring (DDM), and is compatible with HPE M-Series switches and other standard QSFP+ ports.
Key Features
40 Gb/s aggregated throughput via SR4 optics
850 nm wavelength VCSEL for multimode fiber (MMF)
MPO/MTP-12 connector for high-density fiber cabling
Hot-plug QSFP+ form factor
Digital diagnostics (DDM) for real-time monitoring
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | Q7F11A |
| Product Type | 40 Gb Ethernet Transceiver |
| Form Factor | QSFP+ |
| Data Rate | 40 Gb/s (4 × 10 Gb lanes) |
| Wavelength | 850 nm |
| Fiber Type | Multimode (MMF) |
| Connector | MPO / MTP-12 |
| Maximum Reach | ~100 m on OM3; up to ~150 m on OM4 (certified variants) |
| Power Consumption | Typically < 3.5 W |
| Monitoring | Digital Diagnostics Monitoring (DDM) |
| Compliance | IEEE 802.3ba (40GBASE-SR4), QSFP+ MSA, RoHS |
