Detailed Specifications

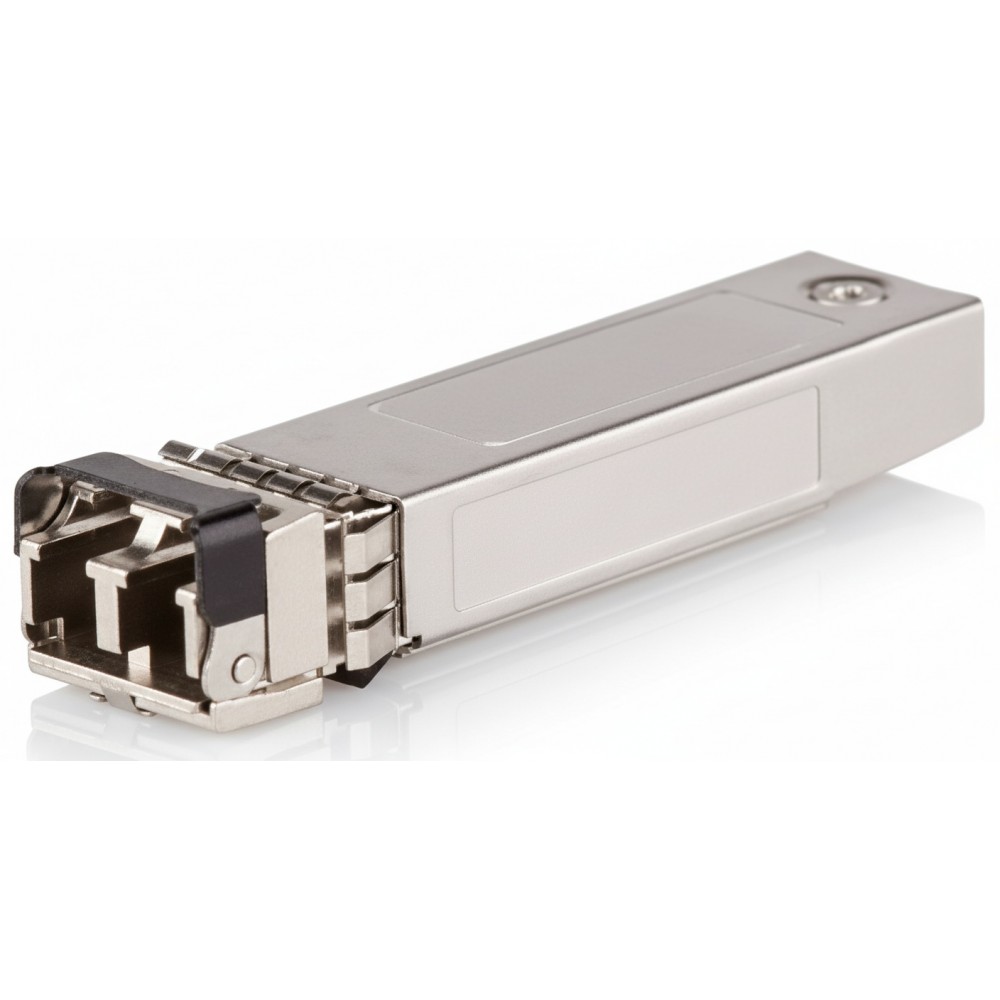

HPE 1990-4363 1Gb 1000Base-LH SFP Transceiver
Overview
The HPE 1990-4363 is a 1 Gb small-form-factor pluggable (SFP) transceiver designed for long-distance single-mode fiber links. It uses a 1550 nm laser to achieve up to 70 km reach over SMF (single-mode fiber). It is suited for enterprise campus backhaul, data-center interconnects or branch-office WAN links. The transceiver fits any compatible SFP slot on HPE / Aruba switches, routers or other networking equipment, and supports standard Gigabit Ethernet signaling.
Key Features
1 Gb/s data rate for Gigabit Ethernet
1550 nm wavelength optimized for long-distance SMF
Reach up to 70 km over single-mode fiber
Duplex LC connector for stable fiber links
Digital diagnostics (DDM) support for real-time monitoring
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | 1990-4363 |
| Product Type | SFP transceiver module |
| Interface | Duplex LC fiber connector |
| Data Rate | 1 Gb/s |
| Wavelength | 1550 nm |
| Fiber Type | Single-mode fiber (SMF) |
| Maximum Reach | Up to 70 km |
| Diagnostic Monitoring | Yes (DDM/DOM capable) |
| Power Consumption | Low power (typical) |
| Operating Temperature | 0 °C to ~70 °C |
| Compatible Standards | IEEE 802.3 (Gigabit Ethernet) |
