Detailed Specifications

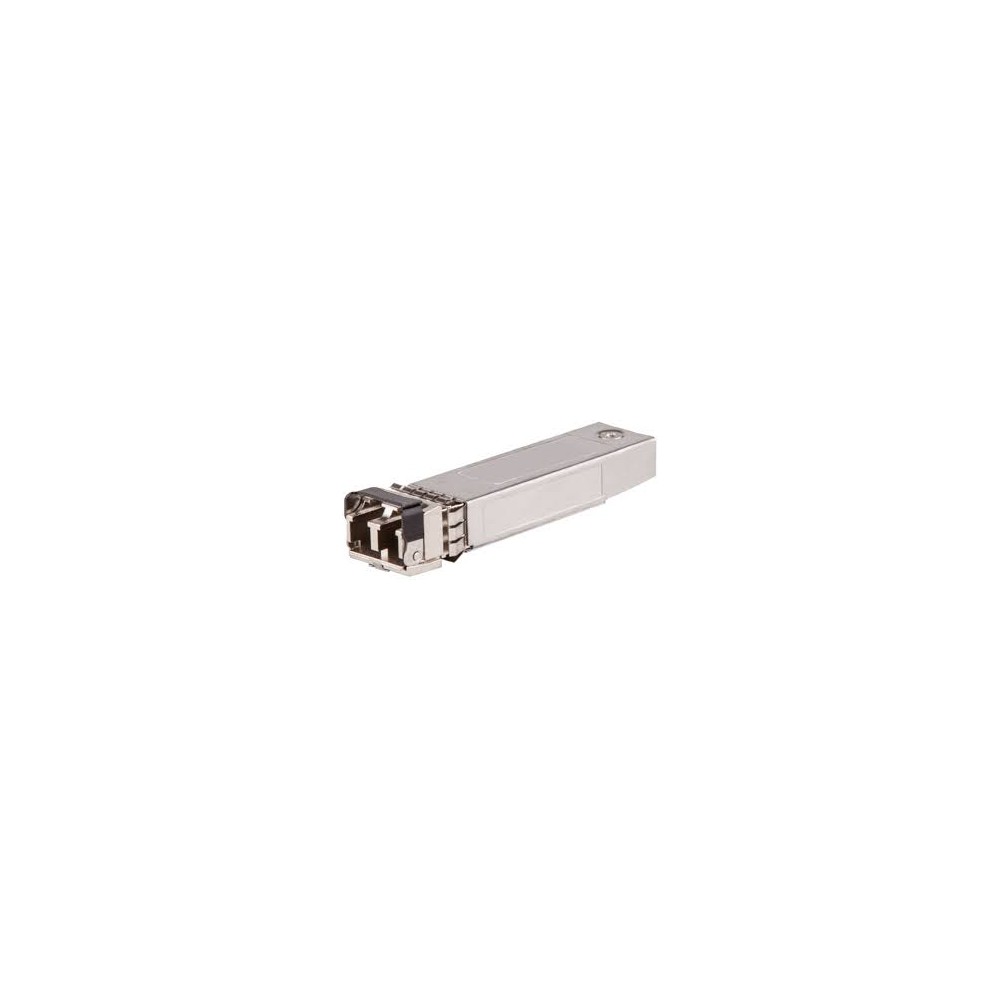

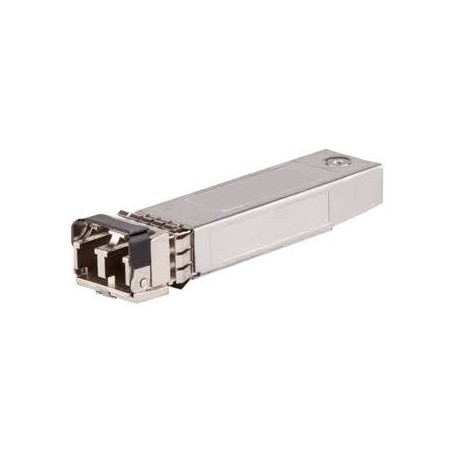

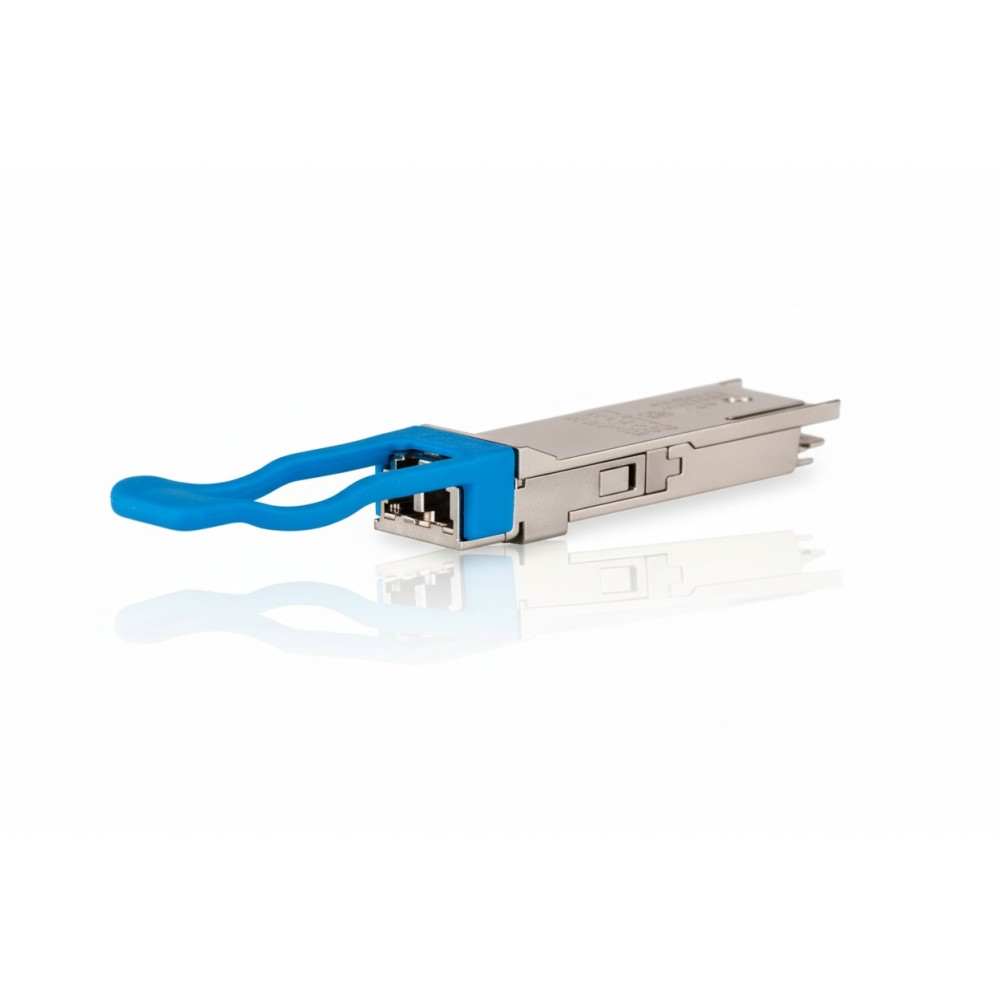

HPE R0Z30-61001 Aruba QSFP28,100 GbE Transceiver Module
Overview
The HPE R0Z30-61001 is a hot-pluggable QSFP28 optical transceiver module intended for data centre network engineers who need high-bandwidth uplink or spine-leaf connections in modern Ethernet fabrics. It supports 100 Gbps full duplex data rates using 100GBASE-CWDM4 protocol over single-mode fibre with an LC connector, and is typically deployed for server-rack aggregation, top-of-rack uplinks, or inter-data-centre links where space and power must be optimised. The module is compatible with the Aruba and HPE switch platforms that accept QSFP28 modules, enabling integration with large switching fabrics and reducing the footprint of uplink wiring. It fits into high-density switch line-cards or chassis systems in enterprise campus or cloud data-centre racks, and can be upgraded without replacing the entire switch. The module supports monitoring of diagnostics via DDM (Digital Diagnostic Monitoring) and integrates with the management plane of the host switch chassis to allow error tracking, link status and fibre diagnostics.
Key Features
QSFP28 form-factor, hot-pluggable 100 Gbps optical module
Supports 100GBASE-CWDM4 on single-mode fibre via LC duplex
Up to approximately 2 km link distance over SMF (single-mode fibre)
Compatible with HPE/Aruba switch platforms with QSFP28 uplink ports
Allows high-density uplinks in data centre aggregation and spine layers
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R0Z30-61001 |
| Product Type | QSFP28,100 GbE optical transceiver module |
| Protocol Supported | 100 GBASE-CWDM4 |
| Data Rate | 100 Gbps full-duplex |
| Fibre Type | Single-mode fibre (SMF) |
| Connector Type | LC duplex |
| Maximum Link Distance | Approximately 2 km |
| Form Factor | QSFP28 hot-pluggable module |
| Compatible Platforms | HPE/Aruba switch chassis supporting 100 GbE QSFP28 uplink |
| Digital Diagnostic | Yes (DDM monitoring) |
| Typical Power Consumption | (Not publicly verified) |
| Operating Temperature | Standard data-centre range (0 °C to 70 °C typical) |
| Compliance Standards | Industry optical transceiver standards |
| Warranty | Standard HPE/Aruba warranty (region dependent) |
