Detailed Specifications

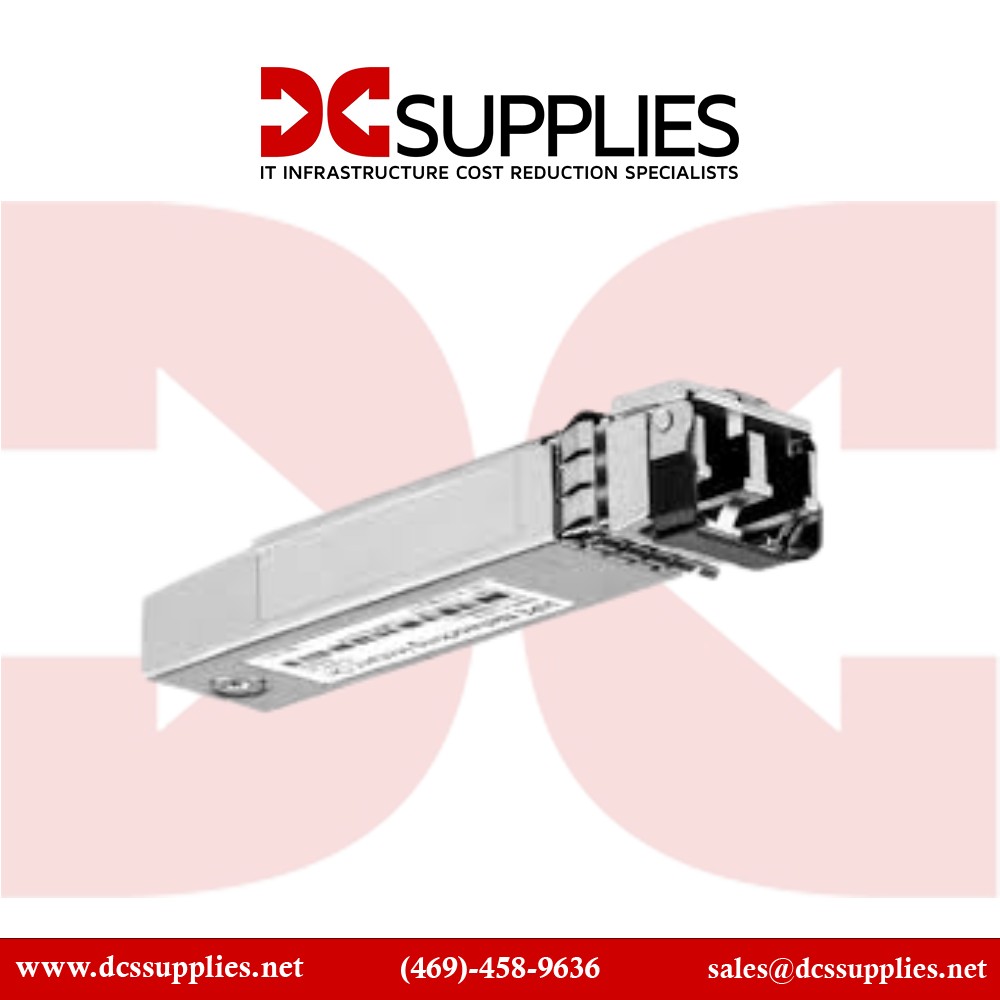

HPE S0G21-61001 Instant On 10G LR SFP+ LC Transceiver
Overview
The HPE S0G21-61001 is a 10 Gb/s LR SFP+ optical transceiver designed for long-range single-mode fiber links. It supports up to 10 km of reach over SMF (single-mode fiber) using a duplex LC connector, making it suitable for backbone or uplink connections in enterprise or campus networks. This module is part of HPE's Instant On line and is compatible with HPE/Aruba switches with SFP+ ports. It is hot-pluggable and optimized for reliable, low-latency 10 Gb connectivity.
Key Features
10 Gb/s data rate (10GBase-LR)
Duplex LC connector for SMF deployment
Up to 10 km reach on single-mode fiber
SFP+ form-factor, hot-swappable
Digital Optical Monitoring (DOM) capable for real-time diagnostics
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | S0G21-61001 |
| Product Type | Instant On transceiver module |
| Ethernet Standard | 10GBase-LR (IEEE 802.3ae) |
| Data Rate | 10 Gb/s |
| Wavelength | 1310 nm |
| Fiber Mode | Single-mode fiber (SMF) |
| Connector Type | Duplex LC |
| Maximum Reach | Up to 10 km |
| Form Factor | SFP+ |
| Hot-Swappable | Yes |
| Operating Temperature | 0 °C to 70 °C |
| Digital Diagnostics (DOM) | Supported |
| Power Consumption | Low (typical SFP+ LR) |
| Weight | ~0.10 lb (≈ 45 g) |
| Use Case | Uplinks, long-range network links |
