Detailed Specifications

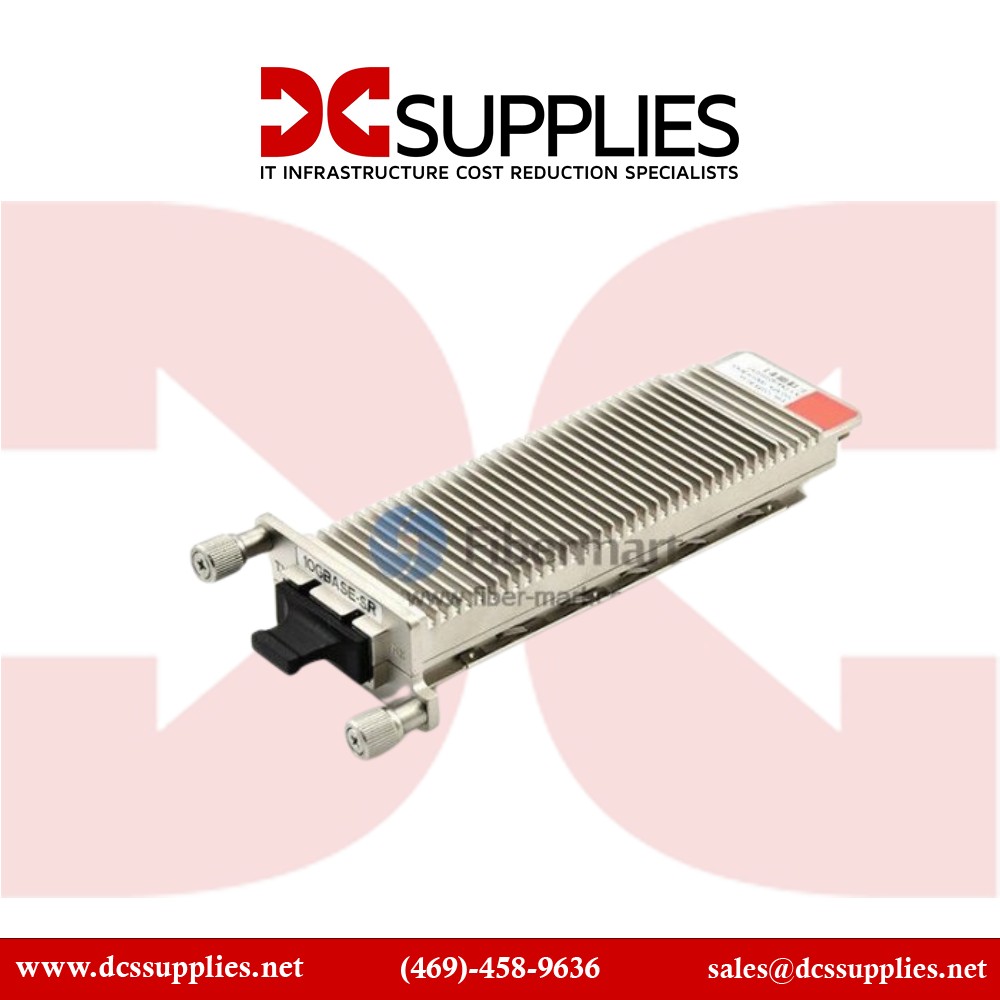

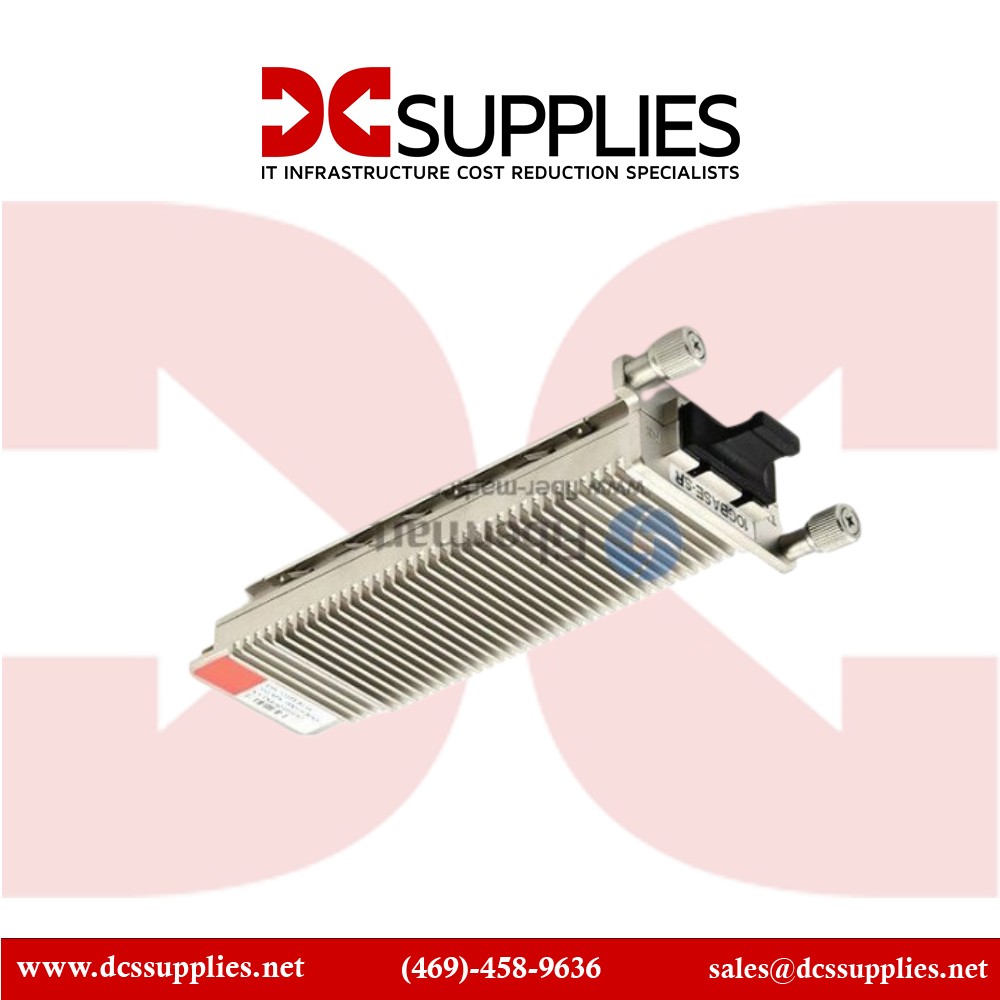

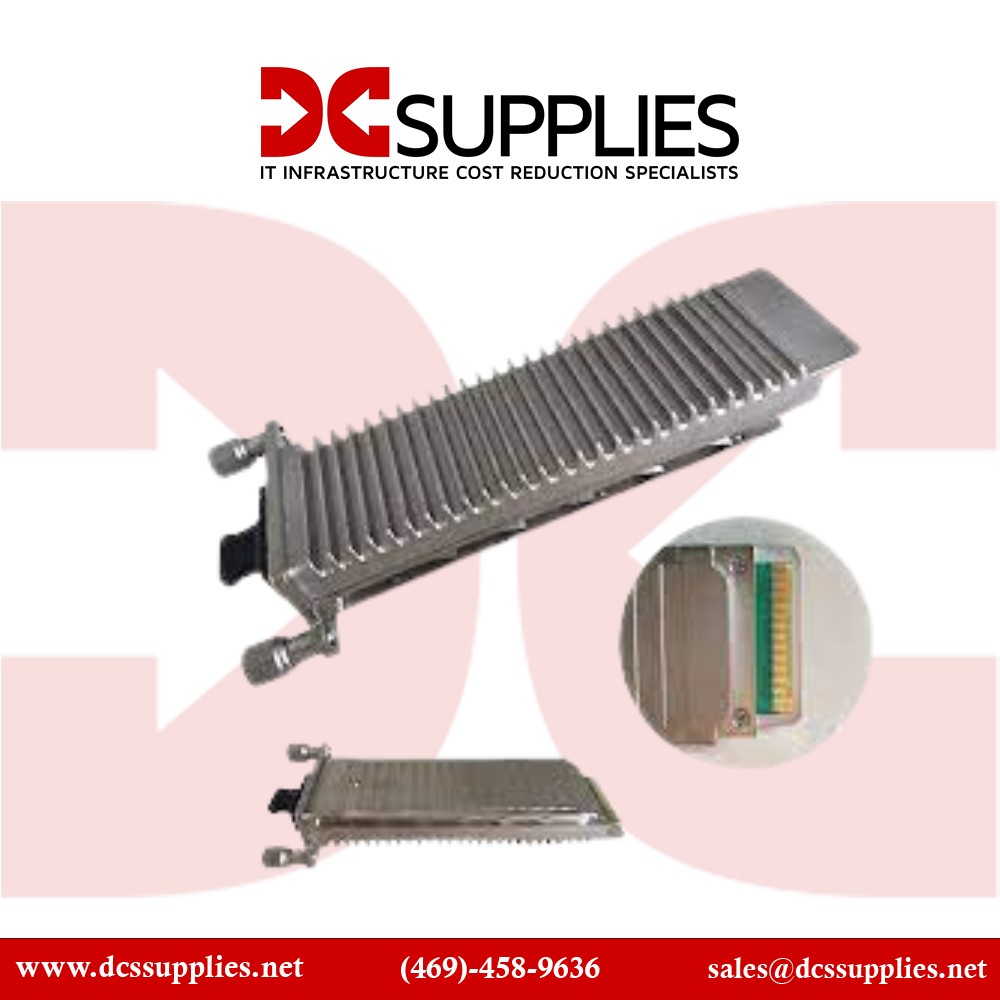

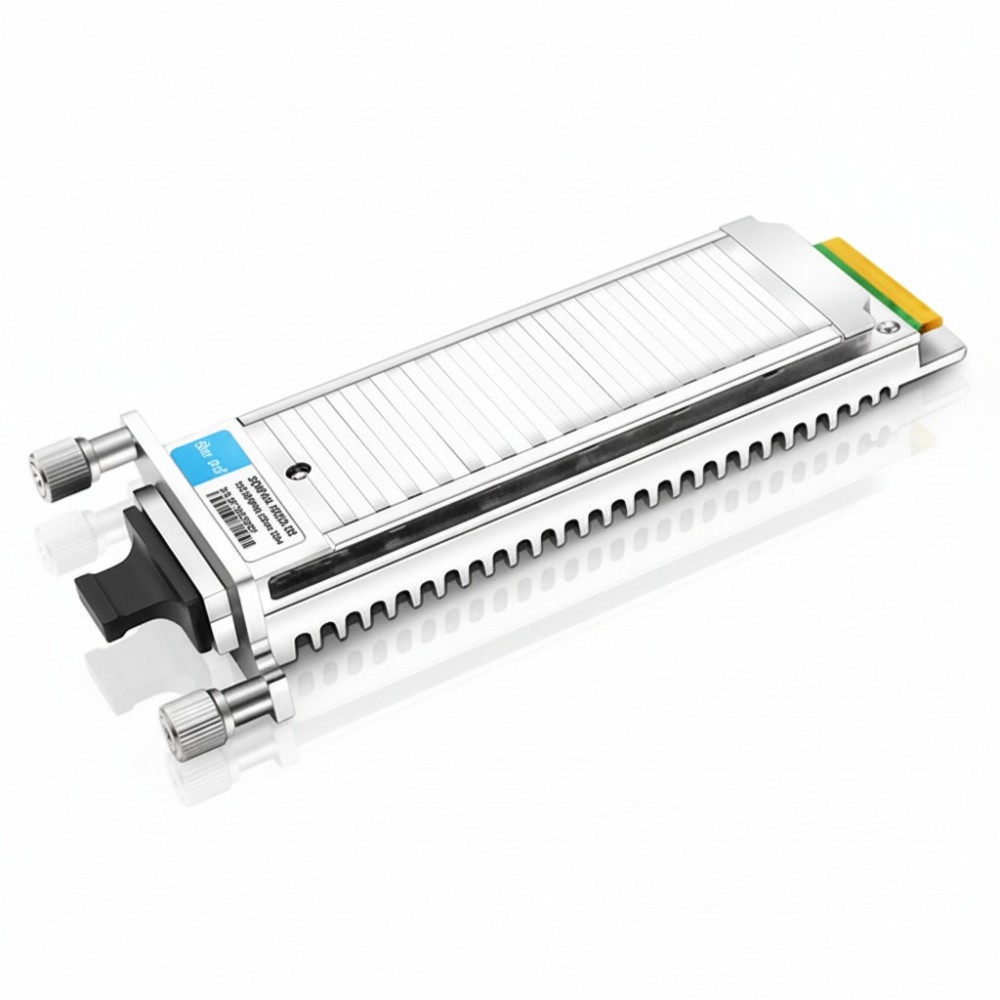

HPE J8175A ProCurve 10Gb/s 10GBase-SR XENPAK Transceiver
Overview
The HPE J8175A is a 10 Gb/s XENPAK transceiver module for ProCurve switches, specifically compatible with the 9300 series. It provides 10GBase-SR connectivity over multimode fiber, using an 850 nm VCSEL light source. With a duplex SC connector, it delivers reliable short-range fiber links up to 300 meters on OM3 multimode. This refurbished module is a cost-efficient choice for extending fiber connections in data-center or campus environments. It is hot-swappable and integrates seamlessly into ProCurve networking infrastructure.
Key Features
10 Gb/s data rate for high-speed fiber links
850 nm VCSEL for SR (short-range) multimode fiber
Duplex SC connector for standard fiber cabling
Reach up to 300 m on OM3 MMF
Hot-pluggable XENPAK form factor
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | J8175A |
| Product Type | XENPAK transceiver module (10 Gb/s) |
| Data Rate | 10 Gb/s |
| Ethernet Standard | IEEE 802.3ae (10GBase-SR) |
| Wavelength | 850 nm |
| Fiber Type | Multimode fiber (MMF) |
| Connector Type | Duplex SC |
| Maximum Reach | Up to 300 m (on OM3) |
| Form Factor | XENPAK |
| Hot-Swappable | Yes |
| Operating Temperature | 0 °C to 70 °C |
| Power Consumption | Low power (typical for XENPAK) |
