Detailed Specifications

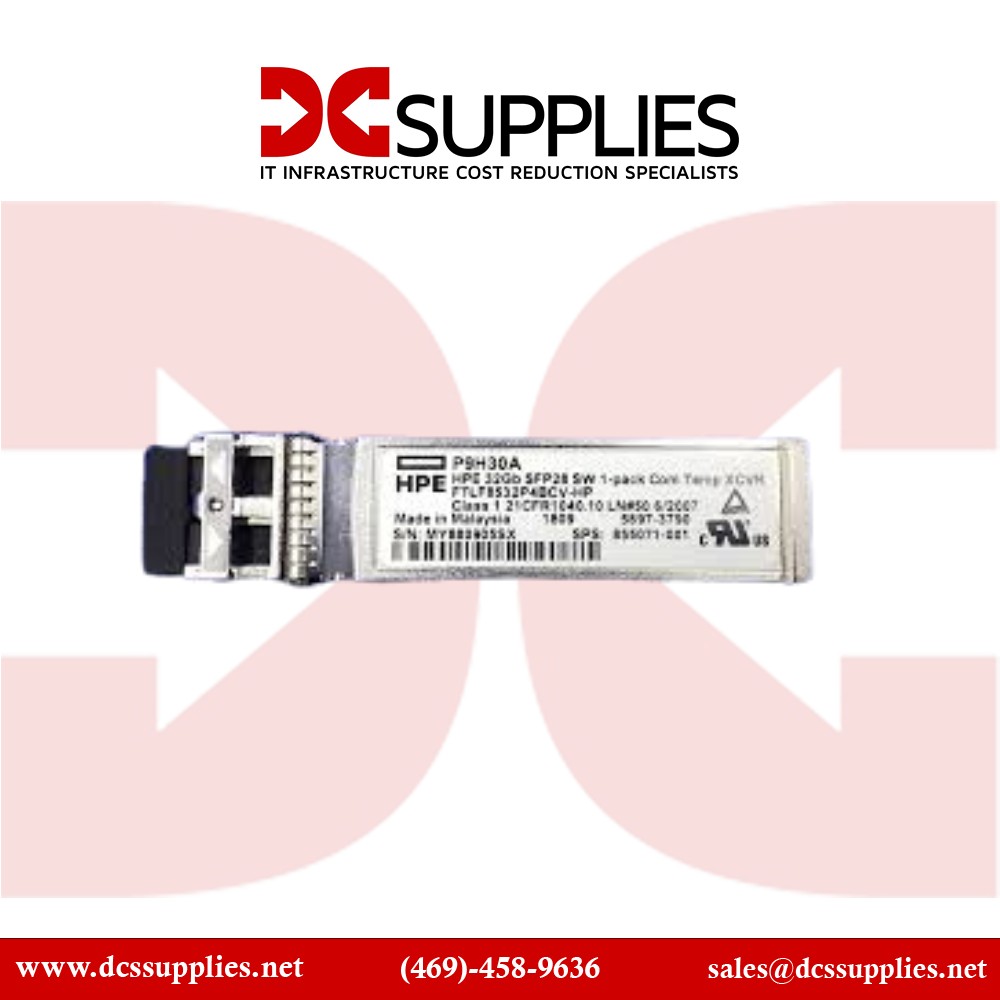

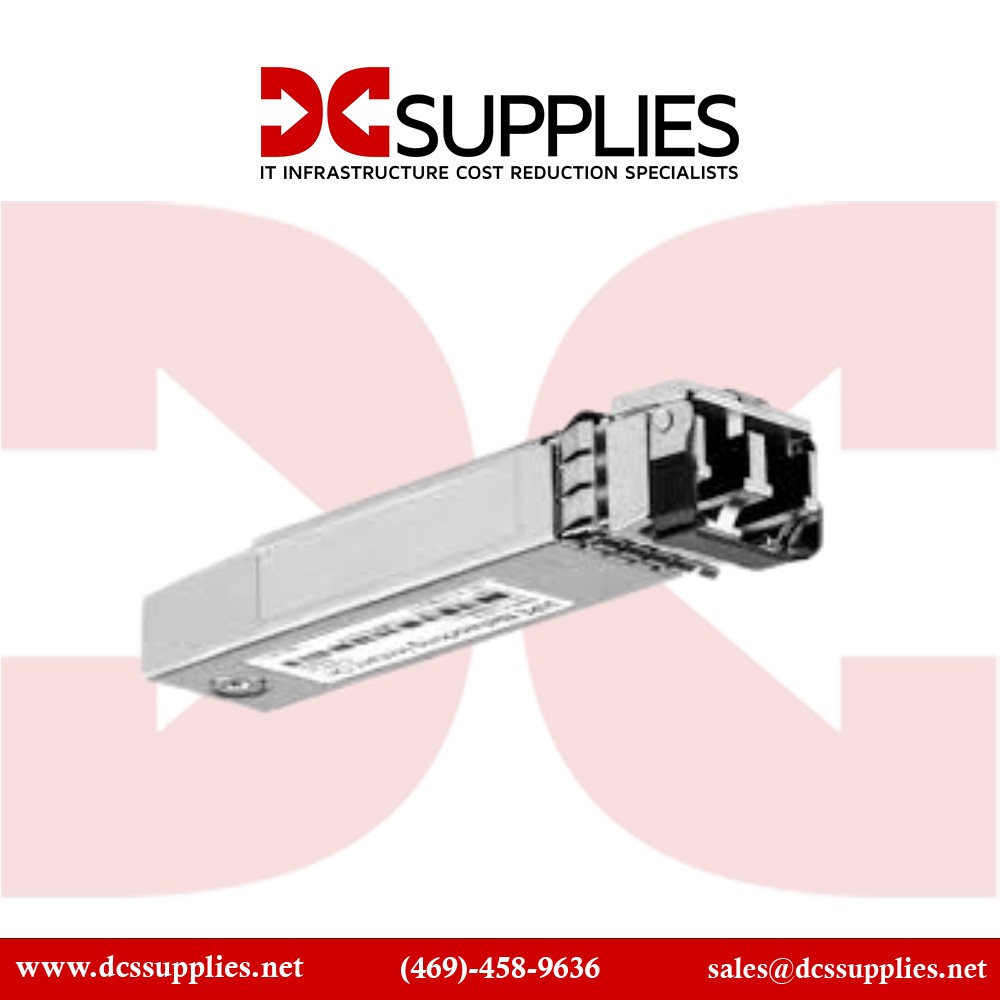

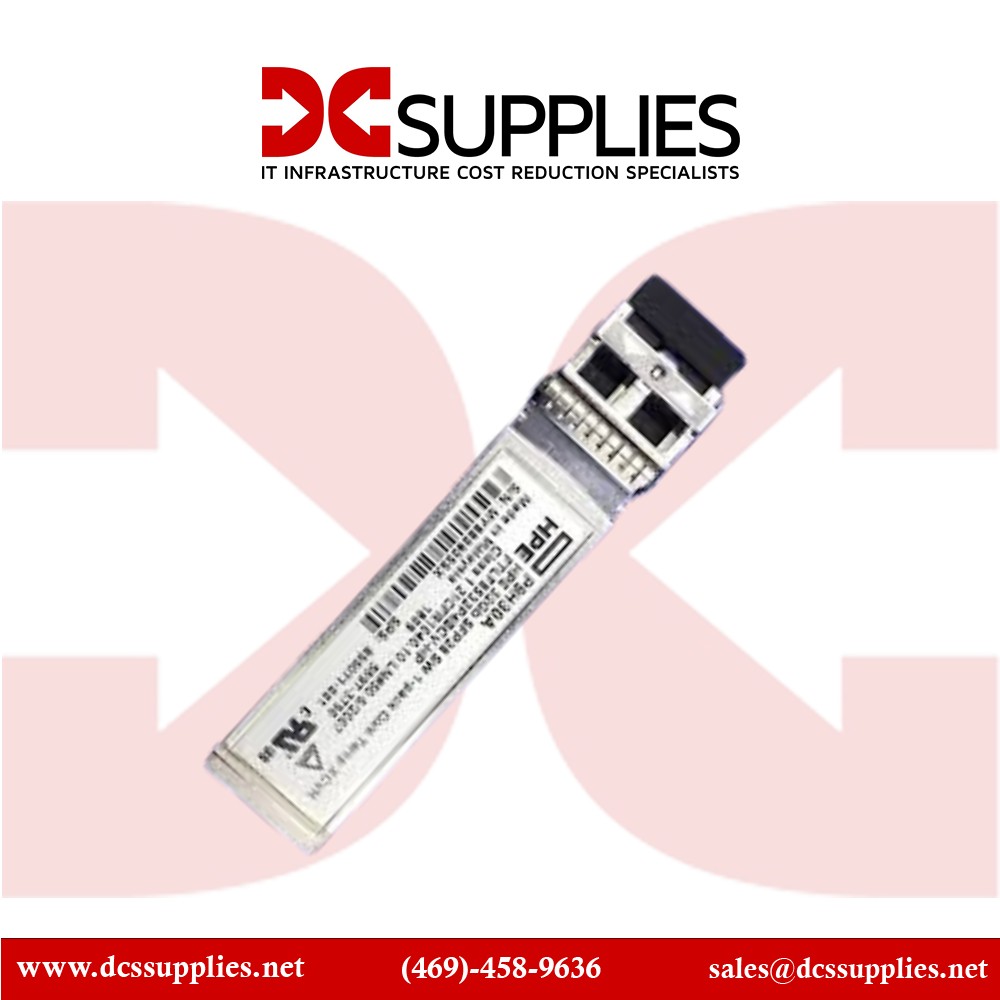

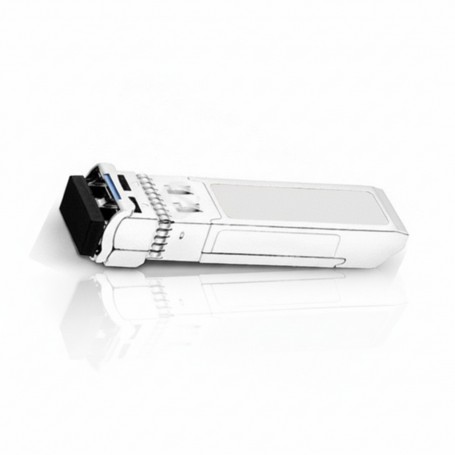

HPE P9H30-63001 Fibre Channel 32G SFP+ Module
Overview
The HPE P9H30-63001 is a hot-pluggable SFP+ optical transceiver module engineered for 32 Gb/s Fibre Channel fabrics in enterprise SAN environments. It operates at short-wavelength (approx. 850 nm) over multimode fibre, supports link distances up to 100 m on OM4 MMF and up to around 70 m on OM3 MMF, making it well suited for data-centre switch-to-switch or array interconnects. The duplex LC connector ensures compatibility with standard fibre cabling systems, while the SFP+ form-factor allows insertion into the SFP+ slot of storage switches, HBAs or array controllers. It is designed for low-latency, high-throughput SAN traffic, and supports digital diagnostic monitoring (DDM) to provide real-time optical and electrical parameter read-outs. The module fits into blade, rack or converged infrastructure deployments requiring dense 32 Gb/s Fibre Channel links and high serviceability.
Key Features
Linear 32 Gb/s Fibre Channel link speed via SFP+
Short-wave 850 nm VCSEL transmitter for multimode fibre
Duplex LC connector in hot-pluggable SFP+ form-factor
Up to around 100 m reach on OM4 MMF, shorter on OM3
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | P9H30-63001 |
| Product Type | 32 Gb/s Fibre Channel SFP+ Transceiver |
| Maximum Link Speed | Up to ~32 Gb/s |
| Wavelength | ~850 nm |
| Connector Type | Duplex LC |
| Fibre Type | Multimode fibre (50/125 µm) |
| Maximum Reach | Up to ~100 m on OM4 MMF |
| Operating Temperature Range | 0 °C to ~70 °C |
| Supply Voltage | 3.3 V typical |
| Digital Diagnostics Monitoring | Supported |
| Form Factor | SFP+ |
| Hot-Pluggable | Yes |
| Bit Error Rate (BER) | ≤ 10⁻¹² |
| Typical Weight | ~0.18 lb (~0.08 kg) |
| Compliance Standards | FC-PI-6, SFF-8472/SFF-8431/SFF-8432 |
