Detailed Specifications

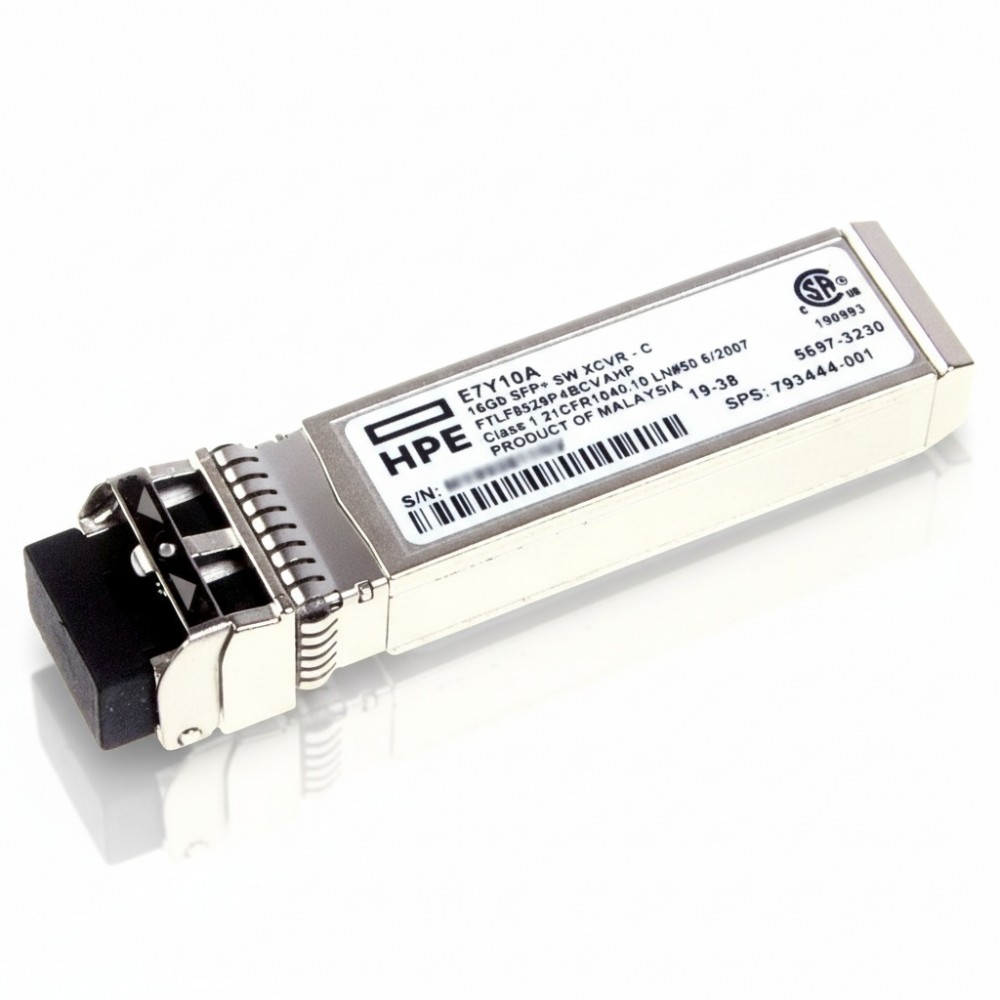

HPE E7Y10A 16Gb Fibre Channel Short-Wave SFP+ Transceiver
Overview
The HPE E7Y10A is a 16 Gb/s short-wave (SW) SFP+ transceiver designed for SAN and storage network engineers deploying fibre channel links in data-centre or storage-array environments. It supports 16 Gb Fibre Channel sessions over multi-mode fibre (MMF) using an 850 nm wavelength and duplex LC connector, enabling upgrades from 8 Gb to 16 Gb FC with minimal infrastructure change. It is suited to data-centre top-of-rack SAN switching, storage-array interconnects or compute-to-storage fabric linking in campus or enterprise sites. The module integrates into HPE storage and networking platforms and supports digital optical monitoring (DOM) for real-time diagnostics of optical link health.
Key Features
16 Gb Fibre Channel (SW) data-link protocol support
Duplex LC connector and MMF media at 850 nm wavelength
Hot-pluggable SFP+ form-factor for minimal downtime
Commercial operating temperature range 0 °C to 70 °C
Digital Optical Monitoring (DOM) support for link diagnostics
Technical Specifications
| Parameter | Value |
|---|
| Brand | Hewlett Packard Enterprise (HPE) |
| Part Number | E7Y10A |
| Product Type | 16 Gb Fibre Channel Short-Wave SFP+ |
| Data Transfer Rate | 16 Gb/s |
| Wavelength | 850 nm |
| Media Type | Multi-Mode Fibre (MMF) |
| Connector | Duplex LC |
| Maximum Distance (MMF) | Up to 300 m |
| Operating Temperature | 0 °C to 70 °C |
| Optical Budget (min) | 2.7 dB |
| Transmitter Power (min) | -7.8 dBm |
| Receiver Sensitivity | -10.5 dBm |
| Dimensions (W × D × H) | 2.70 in × 4.30 in × 0.70 in |
| Weight | Approx. 1 lb |
| Compatibility | HPE storage/network platforms |
