Detailed Specifications

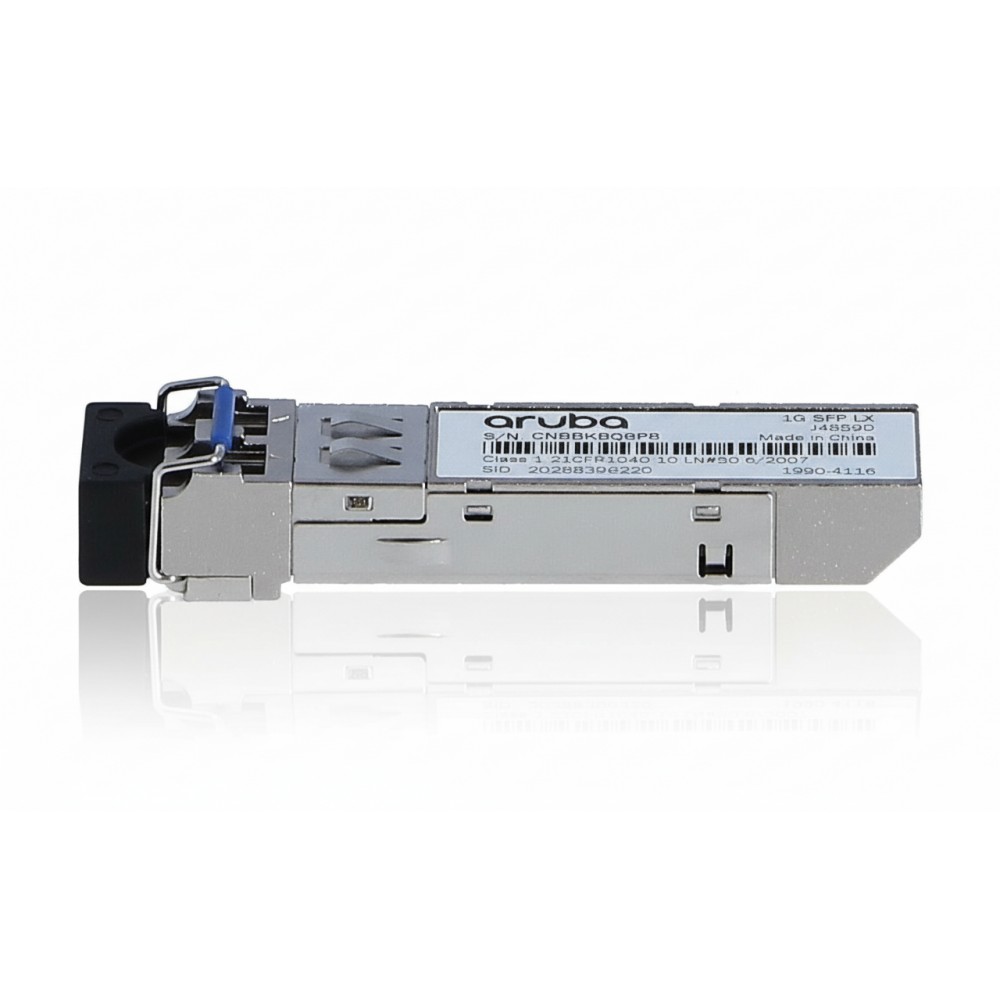

HPE 1990-4116 - 1 Gb/s LX SFP Transceiver
Overview :
The HPE Aruba 1990-4116 is a 1 Gb/s LC-connector SFP (mini-GBIC) optical transceiver designed for network engineers deploying Gigabit Ethernet links over single-mode fibre. It supports 1000Base-LX operation at a wavelength of 1310 nm and reaches up to approximately 10 km, solving the need to extend gigabit connectivity beyond short-reach copper or multimode links. This module is suitable for campus backbone, data-centre uplinks or inter-building links rather than access-layer switching in branch offices. The transceiver integrates with HP/Aruba switches and is compatible with platforms that support the J4859D family; it also supports DOM/monitoring for optical diagnostics and fits standard SFP cages.
Key Features :
1000Base-LX 1 Gb/s throughput over fibre
1310 nm wavelength for long-reach SMF links
Duplex LC connector interface for SFP cage compatibility
Reaches approximately 10 km over 9/125 µm single-mode fibre
Supports digital optical monitoring (DOM) for diagnostics
Specifications :
| Specification | Value |
|---|
| Brand | HP / Aruba |
| Part Number | 1990-4116 |
| Product Type | 1 Gb/s LX SFP Transceiver (mini-GBIC) |
| Data Rate | 1 Gb/s (1000Base-LX) |
| Wavelength | 1310 nm |
| Fibre Mode | Single-mode (9/125 µm) |
| Maximum Reach | 10 km over SMF |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Yes |
| Tx Optical Power | -9.5 dBm (minimum) |
| Rx Sensitivity | -20 dBm (minimum) |
| Fiber Diameter (SMF) | 9/125 µm |
| Compliance | RoHS, suitable for HP/Aruba platforms |
| Temperature Range | Commercial 0 °C to +70 °C |
| Supported Platforms | HP/Aruba switches with SFP support |
