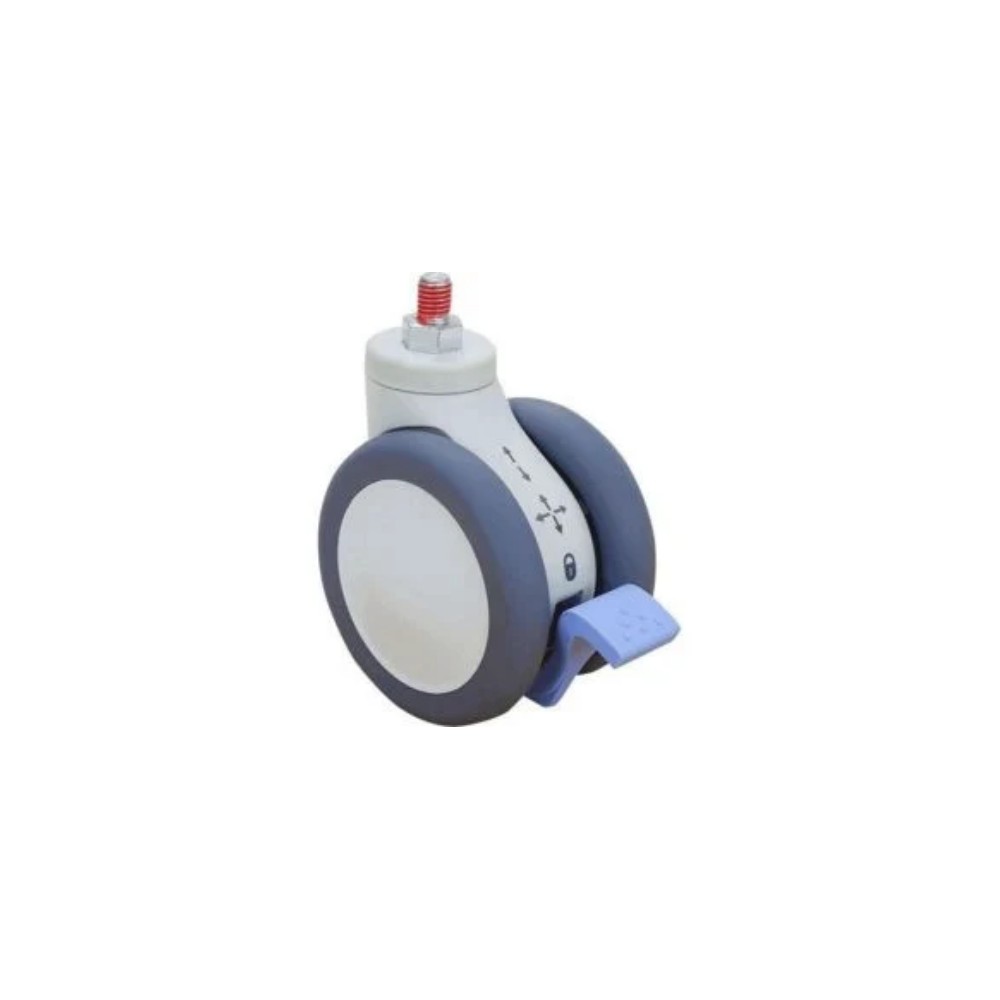

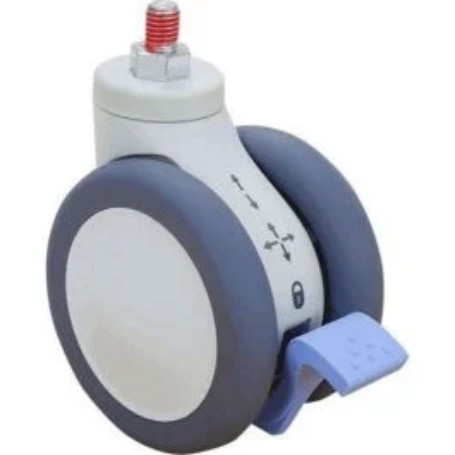

Ergotron 98-069 – SV 3-Function Caster, White/Gray with Blue Pedal
Overview
The Ergotron 98-069 SV 3-Function Caster is a replacement or configuration accessory designed to improve the maneuverability of compatible StyleView mobile carts. Its pedal-controlled mechanism provides three operating modes: full swivel, uni-directional tracking and locked stop. The blue pedal distinguishes this specialized caster from standard cart casters.
Technical Information
The caster uses a 4-inch dual-wheel, ball-bearing construction. Pressing the pedal disables side-to-side swivel to help maintain directional control while moving the cart forward or around corners. Releasing the pedal re-engages swivel operation. Ergotron documentation identifies the caster as supporting the maneuverability and stability requirements of compatible StyleView carts.
Compatibility
The 98-069 is compatible with Ergotron StyleView SV40, SV41, SV42, SV43 and SV44 carts. Supporting documentation recommends one 98-069 caster per cart, installed on the front right-hand side, where the directional-control function can be used for cart maneuverability.
Key Features
- 4-inch dual-wheel caster for compatible StyleView carts.
- Three operating modes: full swivel, uni-directional and locked stop.
- Blue pedal provides easy identification and directional control.
- Ball-bearing construction supports smooth cart movement.
- Designed as a dedicated caster for StyleView SV-series carts.
Applications
The 98-069 is intended for healthcare, clinical and mobile workstation environments using compatible StyleView carts. Its tracking function helps operators maintain directional control when moving the cart through corridors, around corners or between work areas.
DC Supplies Product Note
This listing is for the exact Ergotron 98-069 SV 3-Function Caster. It is a caster component rather than a complete cart. The compatible StyleView cart is not included. Ergotron documentation identifies the 98-069 as an accessory for SV40, SV41, SV42, SV43 and SV44 carts.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-069 |
|---|
| Product Type | 3-Function Caster |
|---|
| Product Name | SV 3-Function Caster |
|---|
| Caster Diameter | 4 in (101.6 mm) |
|---|
| Construction | Dual-wheel, ball-bearing |
|---|
| Operating Modes | Full swivel; uni-directional; locked stop |
|---|
| Control | Pedal-operated |
|---|
| Color | White / Gray with Blue Pedal |
|---|
| Compatible Carts | StyleView SV40, SV41, SV42, SV43, SV44 |
|---|
| Recommended Installation | Front right-hand side of cart |
|---|
| Product Dimensions | 5.75 W × 6.75 H × 7.5 L in |
|---|
| Product Weight | 1.4 lb (0.7 kg) |
|---|
| Shipping Dimensions | 7.5 × 5.75 × 6.75 in |
|---|
| Shipping Weight | 2.2 lb (1 kg) |
|---|
| Warranty | 5 years |
|---|
Exact-model identification and compatibility are confirmed by Ergotron and supporting distributor documentation. Product-weight data is reported by current supporting documentation; shipping data is cross-checked against distributor specifications.
FAQs
What is the Ergotron 98-069?
The 98-069 is the Ergotron SV 3-Function Caster, a specialized caster for compatible StyleView mobile carts.
What are the three caster modes?
The caster provides full swivel, uni-directional tracking and locked-stop modes.
How is the caster controlled?
A pedal controls the caster's swivel function. Pressing the pedal disables side-to-side swivel for directional control, while releasing it re-engages swivel.
What size is the caster?
The caster has a 4-inch (101.6 mm) diameter.
Which StyleView carts are compatible?
The published compatibility includes StyleView SV40, SV41, SV42, SV43 and SV44 carts.
Where is the 98-069 normally installed?
Ergotron supporting documentation recommends one 98-069 per cart, installed on the front right-hand side.
Does the blue pedal have a purpose?
Yes. The blue pedal distinguishes the 3-function tracking caster from the other casters on the cart and provides access to its directional-control functions.
What warranty does Ergotron provide?
The 98-069 carries a five-year limited warranty.
