Detailed Specifications

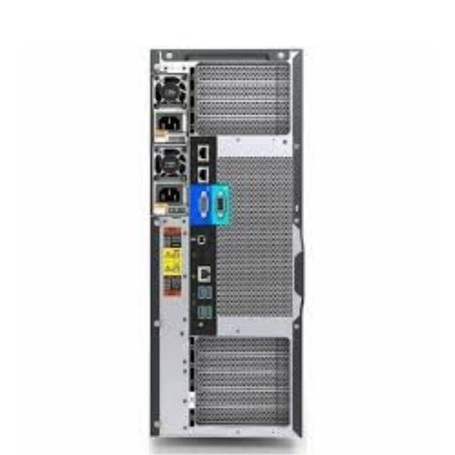

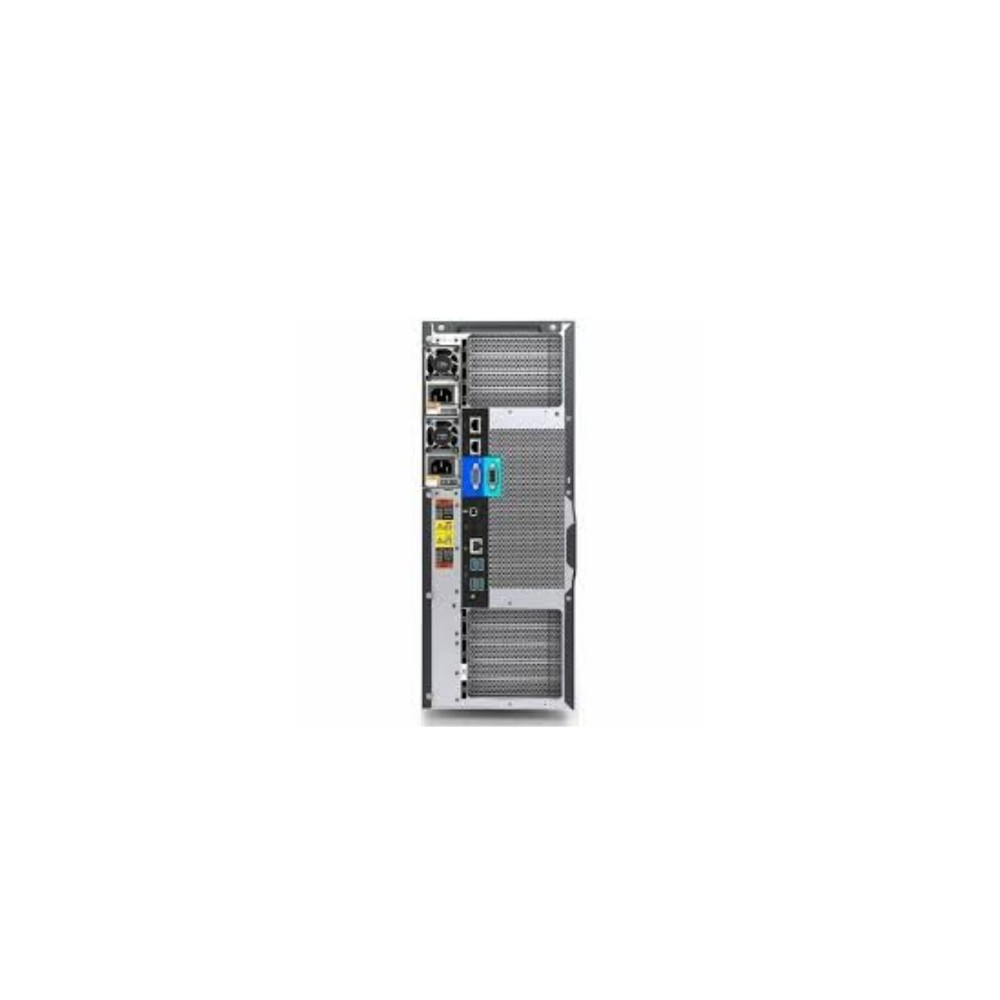

Lenovo 7D7A100KNA ThinkSystem ST650 V3 4U Tower Server
Overview
The Lenovo 7D7A100KNA is a high-performance 4U tower server from the ThinkSystem ST650 V3 series, engineered for enterprise-grade workloads including virtualization, private cloud deployments, and intensive database management.Powered by a 5th Generation Intel Xeon Silver 4510 dodeca-core processor, this server provides a significant uplift in compute density and power efficiency over previous generations.It is designed to scale with growing businesses, supporting a dual-processor configuration and a massive memory footprint of up to 4TB via TruDDR5 technology.
This specific SKU is optimized for high-speed data throughput, featuring 10 Gigabit Ethernet connectivity and support for up to nine PCIe expansion slots, five of which utilize the ultra-fast PCIe 5.0 standard.The 4U rackable tower form factor offers the flexibility of standalone deployment in branch offices or integration into standard data center racks. Thermal management is handled by high-efficiency fans, maintaining stability for high-TDP components while keeping noise levels suitable for office environments.
Storage versatility is a core strength of the 7D7A100KNA, providing 8 SFF (2.5-inch) hot-swappable drive bays with an integrated Serial ATA controller.Security is integrated at the hardware level through Lenovo's Root of Trust module, TPM 2.0, and Platform Firmware Resiliency (PFR).Managed by the XClarity Controller (XCC) Platinum, it offers IT administrators comprehensive remote monitoring and lifecycle management capabilities to ensure maximum uptime for mission-critical applications.
Key Features
5th Gen Intel Xeon Silver 4510 CPU delivers 12 cores for pro multitasking
32GB TruDDR5 5600MHz ECC memory ensures high-speed data reliability
10 Gigabit Ethernet dual-port interface provides ultra-fast networking
4U rackable tower chassis offers flexible deployment for branch or DC
XClarity Controller Platinum enables advanced secure remote management
Specifications
| Feature | Details |
| Brand | Lenovo |
| Part Number | 7D7A100KNA |
| Product Type | 4U Tower Server |
| Processor | 1x Intel Xeon Silver 4510 (12C / 24T, 2.4GHz / 4.1GHz) |
| Processor Support | Up to 2x 5th Gen Intel Xeon Scalable |
| Memory | 32GB TruDDR5-5600 (1x32GB RDIMM) |
| Max Memory | Up to 4TB (32x Slots) |
| Storage Bays | 8x SFF (2.5") Hot-Swap Bays |
| RAID Controller | Integrated SATA (Software RAID) |
| Networking | 2x 10GbE RJ-45 Ports |
| Expansion Slots | Up to 9x PCIe (5x Gen 5, 4x Gen 4) |
| Power Supply | 1x 1100W Titanium Hot-Swap |
| Remote Management | XClarity Controller (XCC) Platinum |
| Operating System | Windows Server, RHEL, SUSE, VMware Certified |
