Detailed Specifications

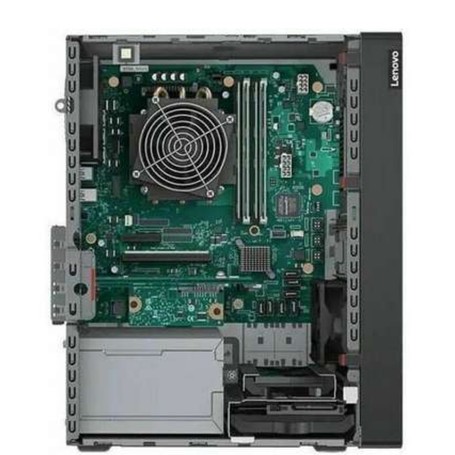

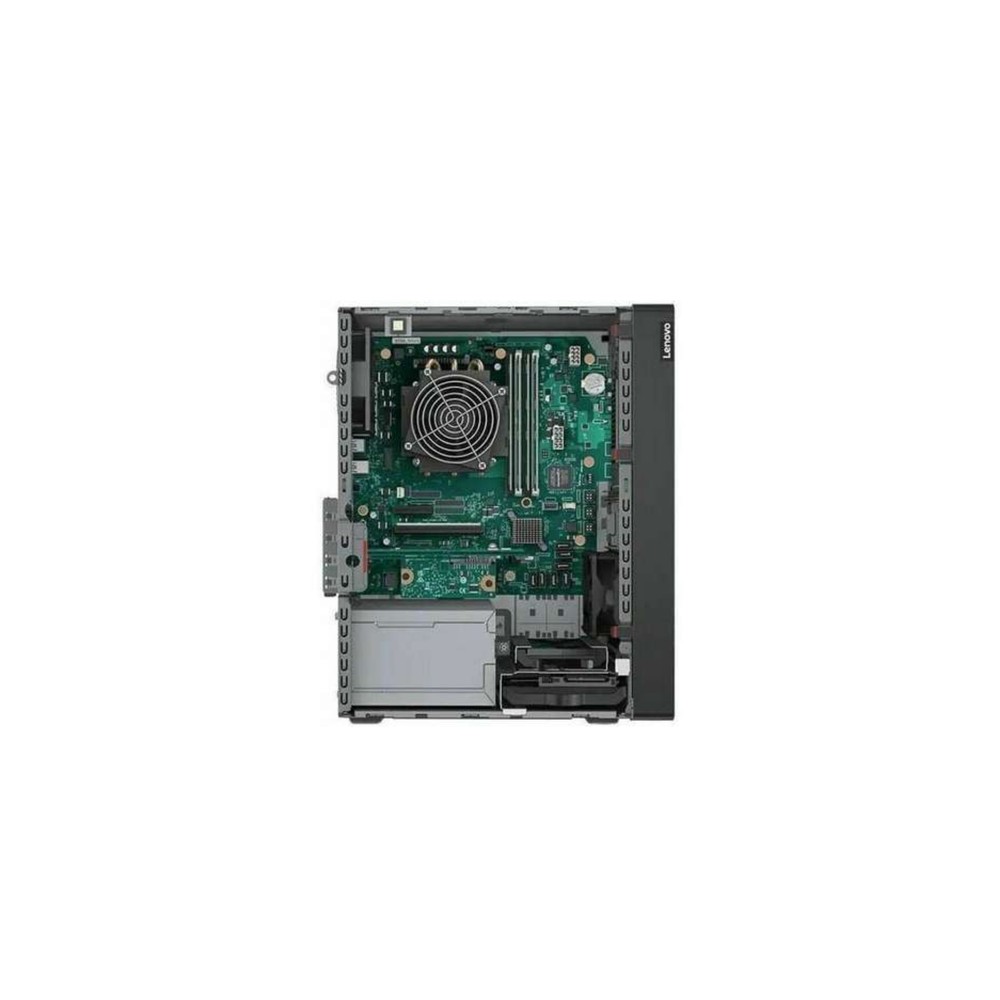

Lenovo 7DF31007NA ThinkSystem ST50 V3 Tower Server
Overview
The Lenovo ThinkSystem ST50 V3 (7DF31007NA) is an entry-level, single-socket 4U tower server designed specifically for small-to-medium businesses (SMBs), retail banking, and remote branch offices.This configuration is powered by the Intel Xeon 6353P processor, delivering high-frequency performance for localized IT infrastructure tasks.It is primarily deployed for file and print serving, small-scale web hosting, and running business-critical office applications where space and budget efficiency are prioritized.
Technically, the ST50 V3 represents a significant platform update, utilizing the Intel C266 chipset and TruDDR5 memory for improved data bandwidth.It features a compact 17L chassis that operates at low decibel levels, making it ideal for environments where it must be placed in proximity to office staff.While small, it incorporates enterprise-grade security including a hardware Root of Trust (RoT) and the Lenovo XClarity Controller 2 (XCC2) for standardized remote management across a distributed fleet.
Deployment is intended for standalone desktop placement, though it retains the flexibility for rack installation via an optional shelf. It is a cost-effective choice for decentralized business operations but should not be utilized for high-density virtualization or large-scale database clusters that require dual-socket processing or extensive hot-swap storage arrays.
Key Features
Intel Xeon 6353P 8-core processor provides high-frequency compute power.
32GB of TruDDR5 4400MHz ECC memory ensures data integrity and speed.
Compact 17L tower form factor with ultra-quiet acoustics for office use.
PCIe Gen5 x16 expansion slot supports next-generation high-speed hardware.
XClarity Controller 2 (XCC2) enables remote deployment and diagnostics.
Specifications
| Brand | Lenovo |
| Part Number | 7DF31007NA |
| Product Type | Tower Server |
| Form Factor | 4U Tower (17L) |
| Processor | 1x Intel Xeon 6353P (8C / 16T, 2.70GHz) |
| Chipset | Intel C266 |
| Memory | 32GB TruDDR5 ECC (1x 32GB Installed) |
| Maximum Memory | Up to 128GB (4x DIMM slots) |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4 |
| Storage Bays | 4 Bays Total (3x 3.5" LFF, 1x 5.25" ODD bay) |
| Storage Controller | Integrated SATA 6Gb/s (Software RAID 0/1/5) |
| Network Interface | 2x Gigabit Ethernet (RJ-45) |
| USB Connectivity | 5x USB 3.2 Gen 1, 1x USB 2.0 |
| Management | Lenovo XClarity Controller 2 (XCC2) |
| Power Supply | 500W Platinum Fixed PSU |
| Security | TPM 2.0, Kensington Cable Lock, Padlock Loop |
