Detailed Specifications

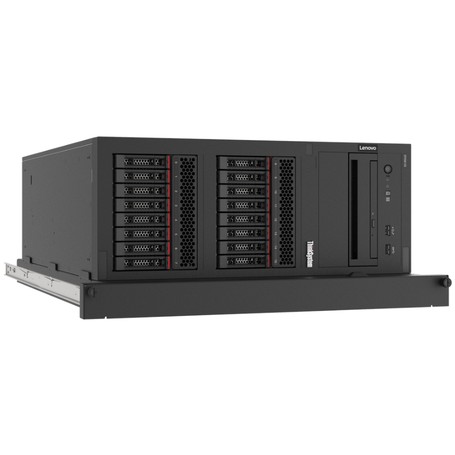

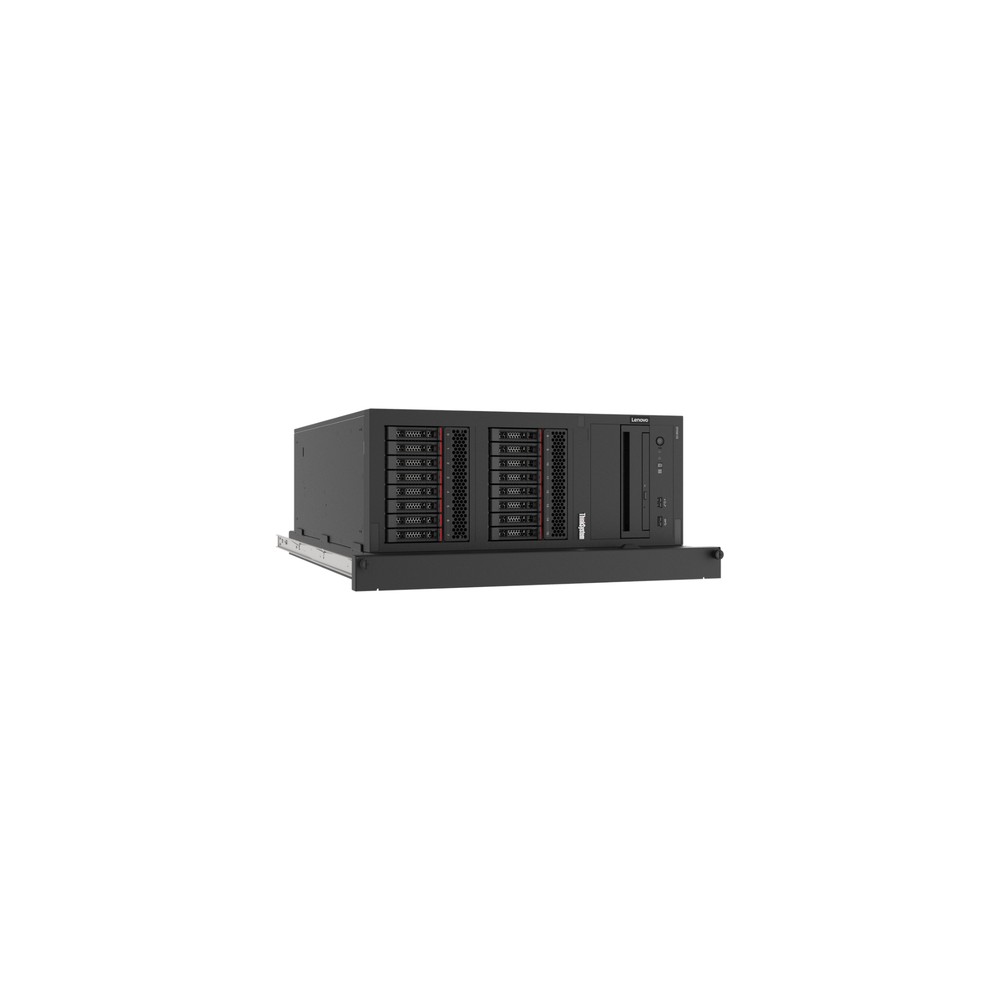

Lenovo 7DCE100JNA ThinkSystem ST250 V3 Tower Server
Overview
The Lenovo ThinkSystem ST250 V3 (7DCE100JNA) is a single-socket 4U tower server designed to provide enterprise-grade performance and reliability for small-to-medium businesses (SMBs) and remote office/branch office (ROBO) environments.Powered by the Intel Xeon 6353P 8-core processor, this configuration is optimized for high-bandwidth data processing and transactional workloads. It is primarily deployed for localized application hosting, retail management, and secure file services where a dedicated server room may not be available.
Technically, the ST250 V3 utilizes the Intel C266 chipset and introduces TruDDR5 memory technology to significantly improve data throughput compared to previous generations. It features a high-bandwidth PCIe Gen5 x16 slot, making it compatible with next-generation network adapters and NVMe storage controllers.For centralized management, it incorporates the Lenovo XClarity Controller 2 (XCC2), which allows IT administrators to perform remote hardware-level diagnostics and automated firmware updates.
Deployment is optimized for office environments due to its quiet acoustic profile and compact 4U footprint, which can also be rack-mounted via an optional conversion kit. It is ideal for growing business infrastructures but should not be utilized for high-density virtualization or massive database clusters that require dual-socket processing power.
Key Features
Intel Xeon 6353P 8-core processor delivers a 2.70GHz base frequency.
32GB of high-speed TruDDR5 memory for enhanced multitasking efficiency.
One PCIe Gen5 x16 slot provides double the bandwidth of PCIe 4.0.
Integrated XClarity Controller 2 for standardized enterprise remote management.
4U tower form factor with optional rack-mount capability for flexible deployment.
Specifications
| Brand | Lenovo |
| Part Number | 7DCE100JNA |
| Product Type | Tower Server |
| Form Factor | 4U Tower (Rack-convertible) |
| Processor | 1x Intel Xeon 6353P (8C / 16T, 2.70GHz) |
| Chipset | Intel C266 |
| Memory | 32GB TruDDR5 ECC |
| Maximum Memory | Up to 128GB (4x DIMM slots) |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| Storage Bays | Supports 2.5" or 3.5" SAS/SATA Hot-Swap (Config dependent) |
| Network | 2x 1GbE RJ-45 + 1x Dedicated Management Port |
| USB Ports | 1x USB 3.2 Gen 1 (Front), 4x USB 3.2 Gen 1 (Rear) |
| Management | Lenovo XClarity Controller 2 (XCC2) |
| Power Supply | Redundant Hot-Swap (Typically 550W/800W Platinum) |
| Security | TPM 2.0, ThinkShield, Optional Security Bezel |
