Detailed Specifications

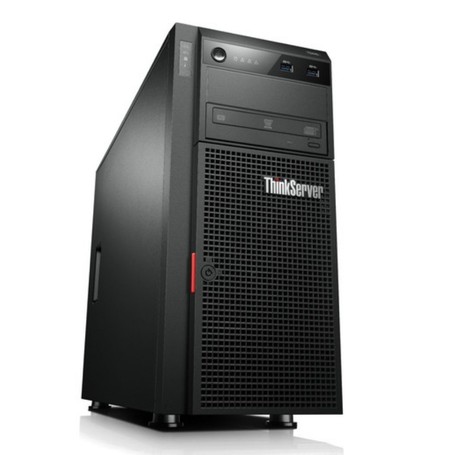

Lenovo 7DH5A01VNA ThinkSystem ST250 V3
Overview
The Lenovo ThinkSystem ST250 V3 (7DH5A01VNA) is a compact, single-socket 4U tower server designed for small-to-medium businesses (SMBs), remote branch offices, and retail environments. Powered by the Intel Xeon E-2400 processor family, it provides enterprise-grade reliability and manageability in a footprint optimized for office use. This server is typically deployed for file and print serving, retail point-of-sale management, and light virtualization workloads.
Technically, the ST250 V3 features significant generational upgrades including support for high-speed DDR5 memory and PCIe Gen5 expansion. It incorporates the Lenovo XClarity Controller 2 (XCC2), which enables advanced remote management and hardware monitoring, crucial for locations without dedicated on-site IT staff. The server is designed with a quiet acoustic profile and an optional security bezel, making it suitable for placement directly in workspace environments rather than a dedicated server room.
Deployment is intended for standalone tower configurations, though it can be rack-mounted via an optional conversion kit. It is highly compatible with Windows Server and various Linux distributions but should not be selected for high-density compute clusters or massive database workloads that require dual-socket processing or extremely high memory footprints.
Key Features
Intel Xeon E-2400 series processor for efficient single-socket performance.
Support for up to 128GB of high-speed DDR5 4800MHz ECC memory.
Four PCIe expansion slots including one high-bandwidth PCIe Gen5 x16 slot.
Tool-less internal access simplifies hardware maintenance and upgrades.
XClarity Controller 2 provides standardized enterprise remote management.
Specifications
| Brand | Lenovo |
| Part Number | 7DH5A01VNA |
| Product Type | Tower Server |
| Form Factor | 4U Tower |
| Processor Support | 1x Intel Xeon E-2400 Series (Up to 8 Cores) |
| Memory Capacity | Up to 128 GB (4x 32GB UDIMMs) |
| Memory Type | DDR5 4800 MHz ECC UDIMM |
| Expansion Slots | 1x PCIe 5.0 x16, 2x PCIe 4.0 x4, 1x PCIe 3.0 x1 |
| Local Storage | Up to 8x 2.5" or 4x 3.5" Hot-Swap bays |
| Network Interface | 2x 1GbE (RJ-45) + 1x Dedicated Management |
| RAID Support | Onboard Intel VROC (SATA); Optional HW RAID |
| Management | Lenovo XClarity Controller 2 (XCC2) |
| Power Supply | Single or Dual Redundant Hot-Swap (Fixed options avail) |
| Security | TPM 2.0, Root of Trust, Lockable Security Bezel |
