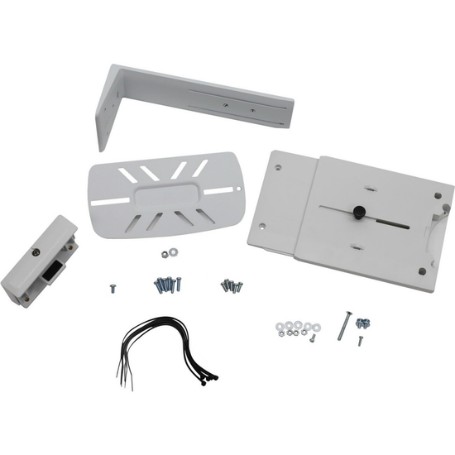

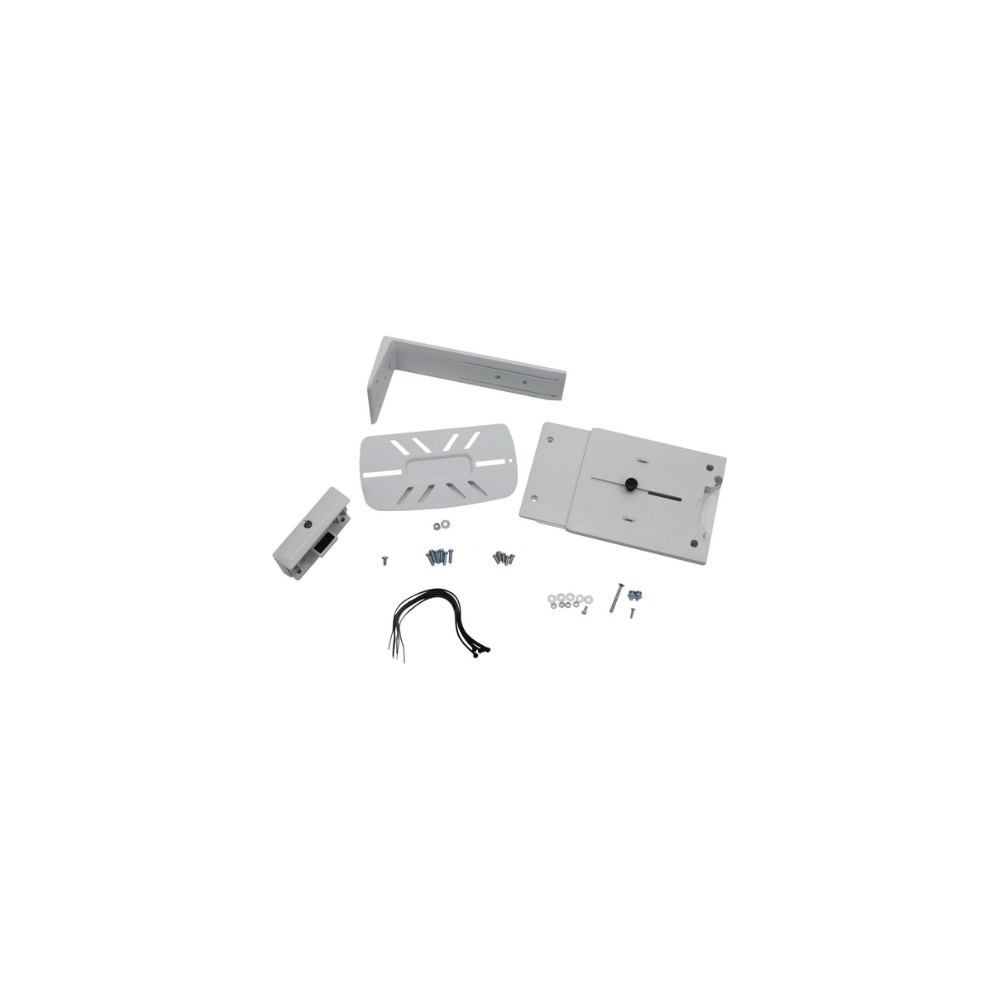

Ergotron 97-815-062 – Scanner Shelf, VESA Attach, White
Overview
The Ergotron 97-815-062 Scanner Shelf, VESA Attach is a white monitor-mounted accessory designed to position a wireless barcode scanner conveniently beside a display. The bracket attaches directly to the monitor mount's VESA hole pattern, while the shelf provides a universal interface for mounting a compatible scanner base.
Technical Information
The 97-815-062 supports displays up to 24 inches and has a maximum shelf capacity of 1.5 lb (0.7 kg). It uses the VESA FDMI MIS-D mounting standard with 75 × 75 mm and 100 × 100 mm hole patterns. Integrated cable management provides a routing path for the scanner base power cable.
The accessory includes hardware to lock out portrait-to-landscape monitor rotation when a fixed, level display orientation is required. The scanner and scanner base are not included.
Compatibility
The 97-815-062 is designed for compatible Ergotron monitor arms, mounts and StyleView workstation configurations using VESA MIS-D 75 × 75 mm or 100 × 100 mm mounting patterns. It can position the scanner shelf on either side of a compatible monitor without interfering with normal monitor movement when properly installed.
Key Features
- White Scanner Shelf, VESA Attach configuration
- Supports displays up to 24 inches
- Maximum scanner shelf capacity of 1.5 lb (0.7 kg)
- VESA MIS-D 75 × 75 mm and 100 × 100 mm compatibility
- Integrated scanner-base cable management and rotation lockout hardware
Applications
The 97-815-062 is intended for point-of-care computing, healthcare workstations and other environments where a barcode scanner needs to remain accessible beside a monitor. Its VESA-mounted design helps consolidate the scanner and display into a single workstation configuration.
DC Supplies Product Note
This listing applies specifically to Ergotron manufacturer part number 97-815-062, the white Scanner Shelf, VESA Attach. The related 97-815 is the black version. The scanner and scanner base are not included with this accessory.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Manufacturer Part Number | 97-815-062 |
| Product | Scanner Shelf, VESA Attach |
| Product Type | Scanner Shelf / VESA Mount Accessory |
| Color | White |
| Supported Display Size | Up to 24 inches |
| Maximum Capacity | 1.5 lb (0.7 kg) |
| VESA Standard | VESA FDMI MIS-D |
| VESA Hole Patterns | 75 × 75 mm and 100 × 100 mm |
| Monitor Rotation | Portrait/landscape lockout hardware included |
| Cable Management | Integrated routing for scanner-base power cable |
| Includes | VESA mount bracket, angle bracket, shelf, P/L lockout hardware and mounting hardware |
| Scanner Included | No |
| Scanner Base Included | No |
| Product Weight | 0.7 kg |
| Shipping Weight | 1.1 kg |
| Shipping Dimensions | 11 × 9 × 5.5 inches (28 × 24 × 14.6 cm) |
| Warranty | 5 years |
FAQs
What is the Ergotron 97-815-062?
The 97-815-062 is Ergotron's white Scanner Shelf, VESA Attach, designed to mount a wireless scanner beside a compatible monitor.
What display size does the 97-815-062 support?
Ergotron documentation specifies displays up to 24 inches for this scanner shelf.
What is the maximum capacity?
The scanner shelf supports up to 1.5 lb (0.7 kg).
Which VESA patterns are supported?
The accessory supports VESA MIS-D 75 × 75 mm and 100 × 100 mm mounting patterns.
Does the scanner come with the shelf?
No. The scanner and scanner base are not included.
Does the accessory provide cable management?
Yes. The shelf includes cable-management provisions for routing the scanner-base power cable.
What is included in the package?
The package includes the VESA mount bracket, angle bracket and shelf, portrait/landscape lockout hardware and mounting hardware.
What is the warranty?
Ergotron specifies a five-year warranty for the 97-815-062.
