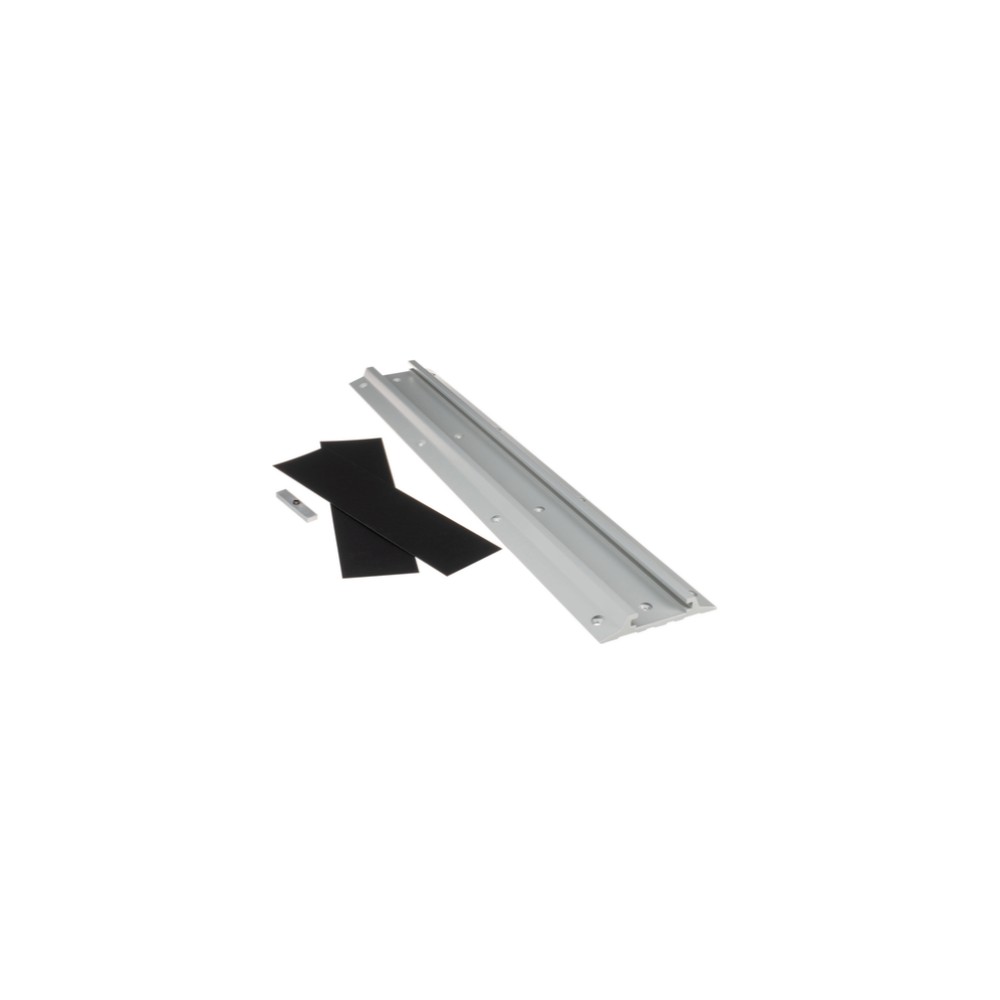

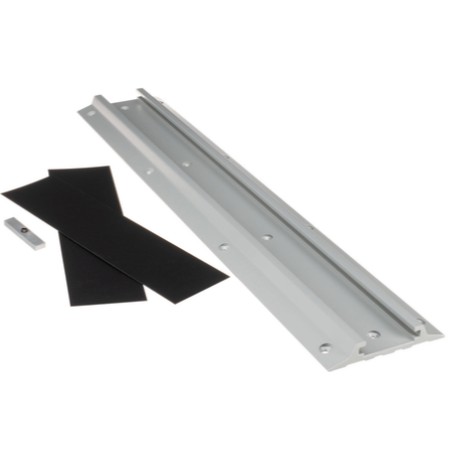

Ergotron 31-017-182 – 26-Inch Wall Track, Silver
Overview
The Ergotron 31-017-182 is a 26-inch Wall Track designed to provide a common wall-mounted interface for compatible Ergotron workstation components. Its extruded aluminum construction distributes mounting loads across the wall while providing a zero-floor-footprint installation for computer equipment.
Technical Information
The Wall Track measures 26 × 5 × 0.87 inches (660 × 127 × 22 mm). It includes channel covers that conceal and route cables along the track. Components attach through separately ordered Ergotron track brackets, allowing their mounting position to be adjusted vertically along the track.
Compatibility
The 31-017-182 is designed as a common interface for compatible Ergotron wall-mount arms, CPU holders and workstation components. Ergotron specifies bracket 97-091 for LX, HX and MX Arms, 400, 200 and 100 Series Arms and Pivots, and Universal CPU Holder applications. Bracket 60-156 is specified for Medium and Small CPU Holders. Wall mounting hardware is not included and must be selected separately for the installation surface.
Key Features
- 26-inch wall-mounted workstation track
- Sturdy extruded aluminum construction
- Provides a common interface for compatible Ergotron components
- Includes channel covers for cable concealment and routing
- Zero-footprint wall installation with OSHPD pre-approval OPA-0620
Applications
The 31-017-182 is suited to healthcare, clinical, office and technical workstation installations where Ergotron monitor arms, CPU holders and other components need to be mounted directly to a vertical surface. Its distributed mounting surface is useful where floor space and desktop space are limited.
DC Supplies Product Note
The 31-017-182 is the 26-inch Wall Track only. It does not include wall mounting hardware or the component-specific brackets required to attach Ergotron equipment. Verify the required track bracket and wall fastener for the specific workstation components and wall construction before installation.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 31-017-182 |
|---|
| Product | 26-Inch Wall Track |
|---|
| Product Type | Wall-mounted workstation track |
|---|
| Color | Silver |
|---|
| Material | Extruded aluminum |
|---|
| Length | 26 in (660 mm) |
|---|
| Width | 5 in (127 mm) |
|---|
| Depth | 0.87 in (22 mm) |
|---|
| Product Weight | 4 lb (1.8 kg) |
|---|
| Shipping Weight | 5.6 lb |
|---|
| Cable Management | Channel covers included |
|---|
| Mounting Hardware | Not included |
|---|
| Component Brackets | Required; ordered separately |
|---|
| OSHPD Pre-Approval | OPA-0620 |
|---|
| Warranty | 5 years |
|---|
FAQs
What is the Ergotron 31-017-182?
The 31-017-182 is Ergotron's 26-inch Wall Track, a vertical wall-mounted interface for attaching compatible Ergotron workstation components.
What is the length of the Wall Track?
The track is 26 inches (660 mm) long.
What are the track dimensions?
The track measures 26 × 5 × 0.87 inches (660 × 127 × 22 mm).
What is the Wall Track made from?
The track uses sturdy extruded aluminum construction.
Does the 31-017-182 include mounting hardware?
No. Wall mounting hardware is not included. Ergotron specifies separate fastener kits depending on the wall construction.
Are brackets included for mounting monitors or CPUs?
No. Component-specific brackets are ordered separately. For example, Ergotron specifies 97-091 for several compatible monitor arms and CPU-holder applications.
Does it provide cable management?
Yes. The Wall Track includes channel covers designed to conceal and route cables.
Can components be repositioned vertically?
Yes. Compatible components can be repositioned along the track by loosening the set screws on their track brackets.
What wall surfaces can it be installed on?
The Wall Track is designed to attach to most vertical surfaces, but the appropriate wall fastener must be selected separately according to the wall construction.
Is the 31-017-182 approved for healthcare installations?
Ergotron documentation lists OSHPD pre-approval number OPA-0620 for this Wall Track.
What is the warranty?
The 31-017-182 carries a 5-year warranty.
