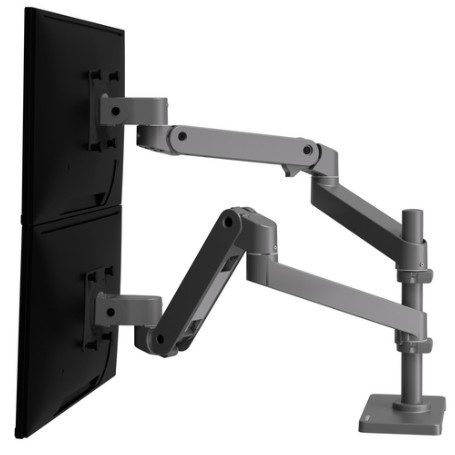

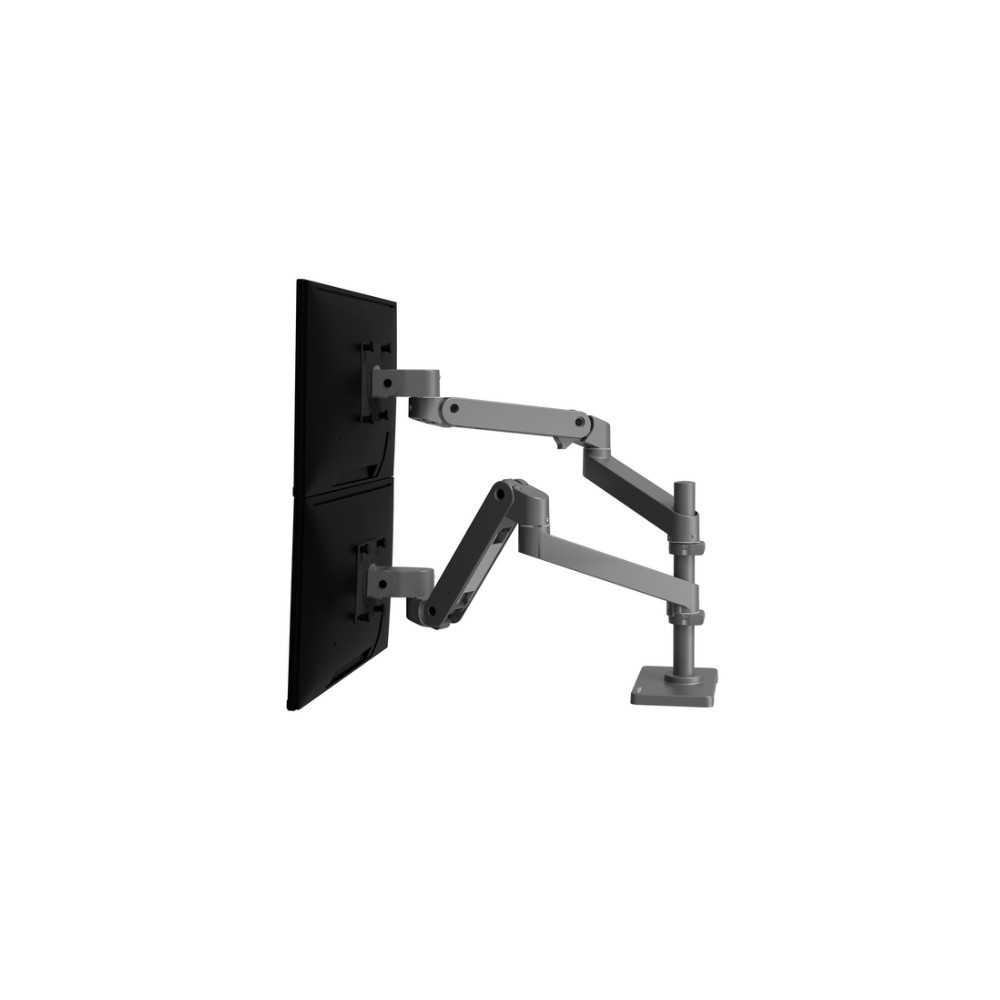

Ergotron 45-710-293 – LX Pro Dual Stacking Arm Clamp Mount
Overview
The Ergotron 45-710-293 is an LX Pro Dual Stacking Arm with a desk clamp mount for positioning two monitors in a vertically stacked configuration. It uses Constant Force™ technology for smooth display positioning and provides independent adjustment of the mounted displays.
Technical Information
The arm supports a combined display load from 7.94 to 44.09 lb (3.6 to 20.0 kg) and accommodates two monitors with VESA FDMI MIS-D mounting patterns of 75 × 75 mm or 100 × 100 mm.
The arm provides up to 13 inches (33 cm) of lift, 360° pan, 360° rotation, and an 85° tilt range. Its articulated structure extends up to 25 inches (64 cm) and incorporates integrated cable management and a rotation stop.
Compatibility
The 45-710-293 supports two compatible LCD monitors or displays up to 27 inches, subject to the total 20 kg load limit and supported VESA mounting patterns.
The desk clamp mounting system attaches to compatible desktop surfaces and provides a secure alternative to the grommet-mounted 45-710-292 configuration.
Key Features
- Dual stacking configuration for two monitors
- 20 kg (44.09 lb) total load capacity
- Desk clamp mounting for compatible desktop surfaces
- 360° pan and rotation with up to 33 cm of lift
- VESA 75 × 75 mm and 100 × 100 mm support with integrated cable management
Applications
The LX Pro Dual Stacking Arm is suited to office workstations, trading desks, design workstations, control rooms, shared workspaces, and other desktop environments requiring two vertically arranged monitors with flexible positioning.
DC Supplies Product Note
Confirm both monitor weights, VESA mounting patterns, and desktop suitability before installation. The 45-710-293 uses a desk clamp mounting configuration and supports a combined display load of 3.6 to 20.0 kg.
Specifications
| Specification | Details |
|---|
| Brand | Ergotron |
| Part Number / MPN | 45-710-293 |
| Product Type | Dual Monitor Mounting Arm |
| Series | LX Pro |
| Model | LX Pro Dual Stacking Arm, Desk Clamp Mount |
| Color | Black |
| Displays Supported | 2 |
| Maximum Display Size | 27 inches |
| Minimum Load Capacity | 7.94 lb (3.6 kg) |
| Maximum Load Capacity | 44.09 lb (20.0 kg) |
| VESA Mounting Interface | 75 × 75 mm, 100 × 100 mm |
| Tilt | 85° |
| Pan | 360° |
| Rotation | 360° |
| Lift | 13 in (33 cm) |
| Maximum Extension | 25 in (64 cm) |
| Mounting Type | Desk Clamp |
| Cable Management | Integrated |
| Technology | Constant Force™ |
| Warranty | 10 years |
FAQs
How many monitors does the Ergotron 45-710-293 support?
The LX Pro Dual Stacking Arm supports two monitors in a vertically stacked arrangement.
What is the maximum supported monitor weight?
The combined supported display load is up to 44.09 lb (20.0 kg), with a minimum supported load of 7.94 lb (3.6 kg).
Which VESA patterns are supported?
The monitor mounts support VESA 75 × 75 mm and 100 × 100 mm mounting patterns.
How does the 45-710-293 attach to a desk?
This model uses a desk clamp mounting configuration rather than a grommet mount.
What adjustment range does the LX Pro Dual Stacking Arm provide?
The arm provides up to 33 cm of lift, 360° pan, 360° rotation, and an 85° tilt range, with extension up to 64 cm.
