Lenovo 4XC1K20994 ThinkStation Front Access NVMe Enclosure View larger

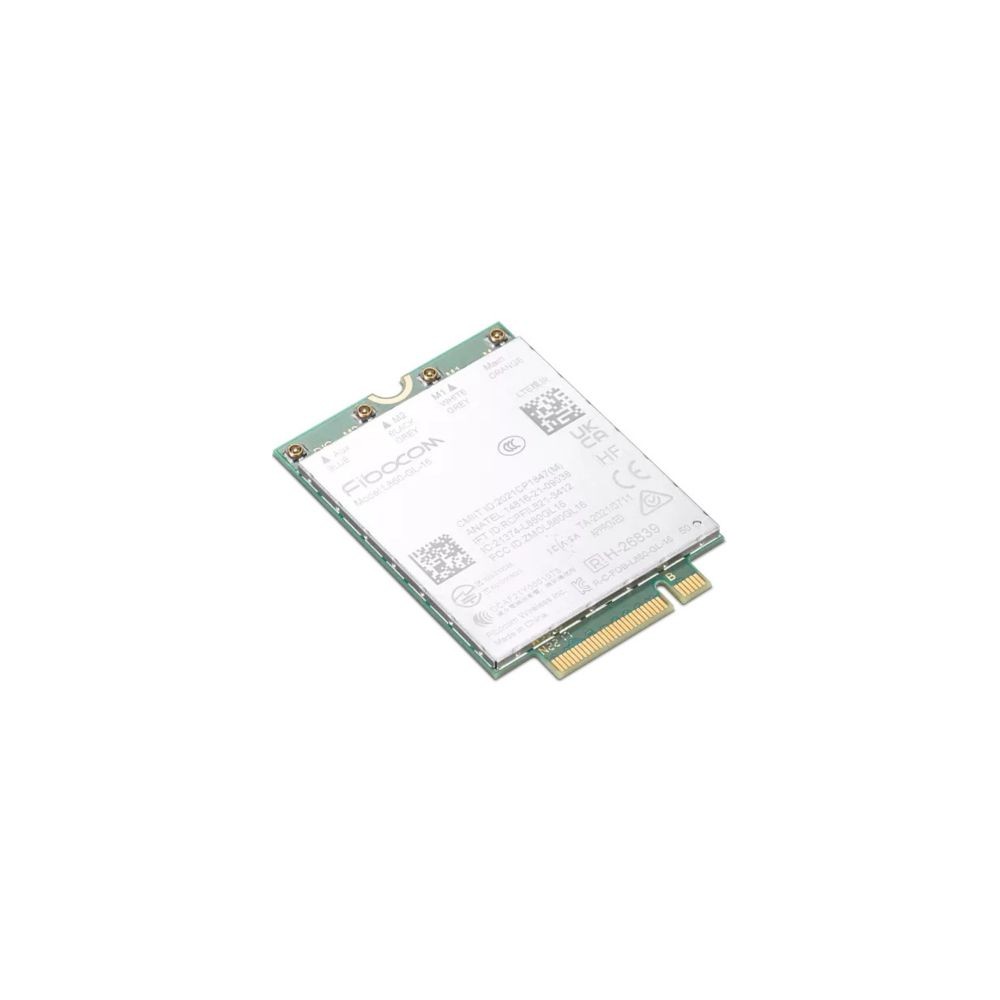

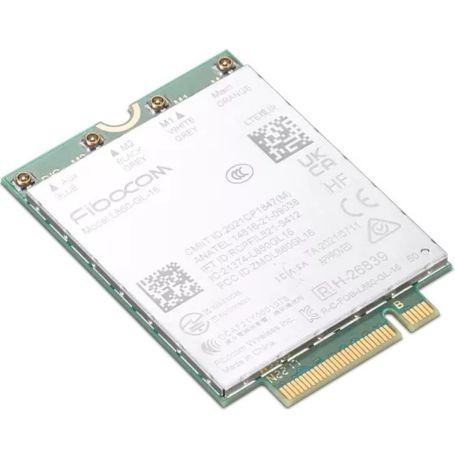

Lenovo 4XC1K20994 ThinkPad Fibocom L860-GL-16 4G LTE Module

4XC1K20994

New

High-Speed CAT16 4G WWAN Module – Internal PCIe M.2

×




Detailed Specifications

Lenovo 4XC1K20994 – Fibocom L860-GL-16 4G LTE-A CAT16 for ThinkPad

Overview :

Lenovo 4XC1K20994 aik high-performance wireless communication module hai jo ThinkPad laptops ko mobile data connectivity faraham karta hai. Ye Fibocom L860-GL-16 chipset par mabni hai aur 4G LTE-A CAT16 technology ko support karta hai, jis se aapko 1Gbps tak ki download speed mil sakti hai. Ye module un logo ke liye behtareen hai jo safar ke doran baghair Wi-Fi ke internet istemal karna chahte hain.

Technically, ye module PCIe Gen2 M.2 interface ke sath aata hai aur is mein "Receive Diversity" ki khasiyat mojood hai jo signal reliability ko behtar banati hai. Is mein embedded eSIM functionality bhi shamil hai, jo physical SIM ke sath mil kar flexibility deti hai. Ye khaas tor par ThinkPad T14 Gen 3 aur isi tarah ke professional models ke liye optimize kiya gaya hai.

Key Features :

  • Ultra-Fast 4G: CAT16 technology ke zariye 1Gbps download aur 150Mbps upload speeds.

  • Global Connectivity: FDD-LTE aur TDD-LTE bands ki wasee range ko support karta hai.

  • Advanced Interface: PCIe Gen2 M.2 Key-B interface stable aur tez connection deta hai.

  • eSIM Ready: Physical Nano-SIM slot ke sath sath embedded eSIM ki sahulat.

  • Professional Grade: Windows 10 aur Windows 11 ke sath fully compatible aur certified.

Specifications

Technical Specifications
Brand4XC1K20994
Product Type4G LTE WWAN Module
ModelFibocom L860-GL-16
Form FactorM.2 Key-B
Network Generation4G LTE (CAT16)
Max Download Speed1000 Mbps (1 Gbps)
Max Upload Speed150 Mbps
Voltage3.135V to 4.4V (Typical 3.3V)
Operating Temp-10°C to +55°C
Supported OSWindows 10, Windows 11
GNSS SupportGPS, GLONASS, BeiDou, Galileo
CompatibilityThinkPad T14 Gen 3 / P14s Gen 3 (Intel Models)
