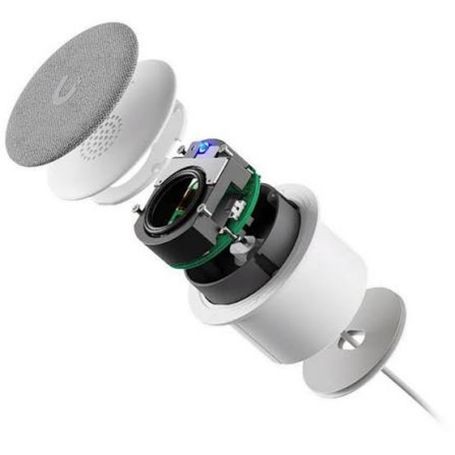

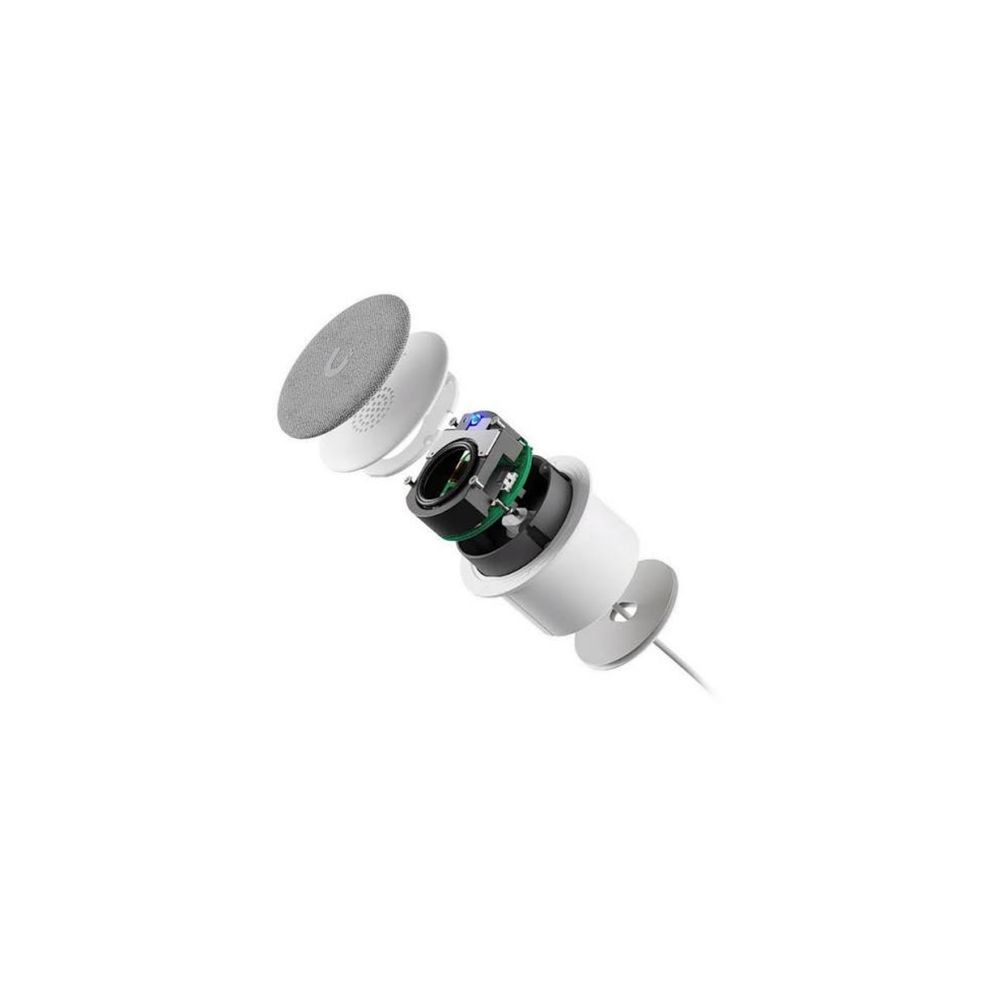

Ubiquiti UVC-AI-THETA-AUDIO – UniFi AI Theta Two-Way Audio Module
Overview
The Ubiquiti UVC-AI-THETA-AUDIO is a two-way audio module designed for UniFi AI Theta deployments. It connects to an AI Theta Hub and adds an integrated speaker and microphone for two-way audio functionality within a UniFi Protect system.
The module supports flush-mounted installation and uses an aluminum alloy and polycarbonate enclosure. The package includes the flush mount and a 1-meter proprietary Theta audio cable for connection to the AI Theta Hub.
Technical Information
UVC-AI-THETA-AUDIO measures 61.5 mm in diameter by 39 mm in depth and weighs 65 g. The flush mount weighs 22 g and the supplied cable weighs 18 g.
The audio module uses USB Type-C power at 5V DC and 0.9A, with maximum power consumption specified at 4.5W. The integrated microphone can be disabled through software.
Compatibility
The module is designed to connect to an AI Theta Hub through its proprietary Theta connection. The AI Theta Hub provides the network and system connection for the audio module. UniFi Protect Web version 2.7.18 or later and UniFi Protect iOS or Android version 1.11.0 or later are specified for management.
UVC-AI-THETA-AUDIO is an audio accessory rather than a standalone network camera. An AI Theta Hub is required for integration into a UniFi Protect AI Theta deployment.
Key Features
- Two-way audio module for UniFi AI Theta Hub
- Integrated speaker and software-disableable microphone
- Flush-mount installation support
- 1-meter proprietary Theta connection cable
- 4.5W maximum power consumption
Applications
- Two-way audio for UniFi AI Theta camera installations
- Security monitoring environments requiring audio communication
- Flush-mounted AI Theta deployments
- UniFi Protect surveillance systems with integrated audio
- Commercial and infrastructure security installations
DC Supplies Product Note
UVC-AI-THETA-AUDIO is an accessory for the AI Theta platform and does not operate as an independent network audio endpoint. Confirm that an AI Theta Hub is available before deployment.
Specifications
| Specification | Details |
|---|
| Brand | Ubiquiti |
| Part Number / MPN | UVC-AI-THETA-AUDIO |
| Product Type | Two-Way Audio Module |
| Platform | UniFi AI Theta |
| System Compatibility | AI Theta Hub |
| Speaker | Yes |
| Microphone | Yes; can be disabled in software |
| Mounting | Flush mount |
| Module Dimensions | Ø61.5 × 39 mm |
| Module Weight | 65 g |
| Flush Mount Weight | 22 g |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate |
| Power Method | USB Type-C |
| Power Requirements | 5V DC, 0.9A |
| Maximum Power Consumption | 4.5 W |
| Cable Length | 1 m |
| Cable Connector | Theta proprietary |
| Operating Temperature | -20 to 40°C |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| NDAA Compliant | Yes |
FAQs
What is the Ubiquiti UVC-AI-THETA-AUDIO?
It is a two-way audio module that connects to an AI Theta Hub and adds speaker and microphone functionality to an AI Theta deployment.
Does the module include a microphone and speaker?
Yes. The module has an integrated speaker and microphone, with the microphone capable of being disabled through software.
Does UVC-AI-THETA-AUDIO include a mounting solution?
Yes. Ubiquiti specifies a flush mount as included with the audio module.
What cable is included?
The product includes a 1-meter proprietary Theta cable for connection to the AI Theta system.
What power does the module require?
The module uses USB Type-C at 5V DC and 0.9A, with maximum power consumption of 4.5W.
What software manages the audio module?
The module is managed through UniFi Protect Web and the UniFi Protect iOS and Android applications.
