Overview

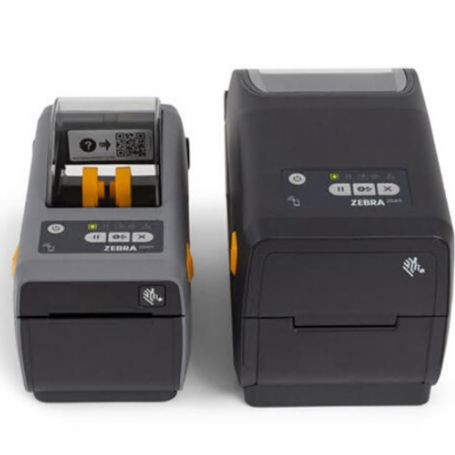

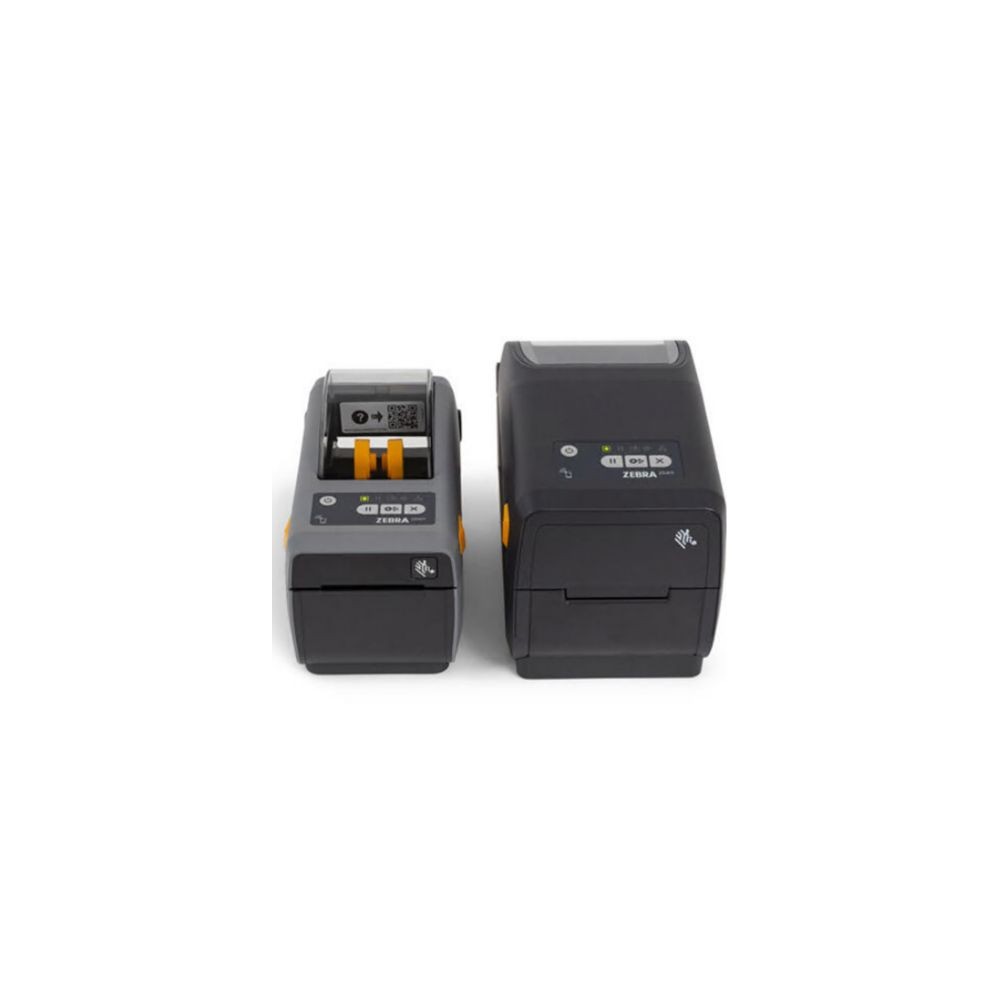

The Zebra ZD411 ZD4A022-D01E00EZ is a compact direct thermal desktop printer designed for printing barcode labels, product labels, price tags, shipping labels and other compatible media. Its 203 dpi print resolution supports everyday text and barcode printing, while its small footprint makes it suitable for counters, workstations, retail environments and office operations.
This configuration includes USB, USB Host, Ethernet and Bluetooth Low Energy 5 connectivity. It uses Zebra's Link-OS printer platform and supports EZPL configuration for integration with compatible printing workflows. Direct thermal printing uses heat-sensitive media, eliminating the need for ink or toner cartridges.
Key Features
- 203 dpi printing: Produces text, graphics and barcodes for everyday label printing applications.
- Direct thermal technology: Prints on compatible heat-sensitive media without requiring ink or toner.
- Wired and wireless connectivity: Includes USB, USB Host, Ethernet and Bluetooth Low Energy 5 for setup and supported communication tasks.
- Compact desktop design: Its small footprint helps conserve workspace in retail, office and inventory environments.
- Flexible media support: Handles compatible roll-fed and fanfold labels, tags and receipt media within the printer's specified media limits.
Printing Performance
The printer offers 203 dpi resolution, equivalent to 8 dots per millimetre, and supports print speeds of up to 6 inches per second, or approximately 152 mm per second. Maximum print speed depends on the print settings, media and application.
The maximum print width at 203 dpi is 56 mm (2.2 inches). Compatible media can include die-cut labels, continuous media, black-mark media, tags, receipts and wristbands, provided the media dimensions and material specifications are supported.
Connectivity and Integration
USB provides a direct connection to a compatible computer, while Ethernet allows the printer to be integrated into a wired local network. The USB Host port supports compatible peripherals and accessories. Bluetooth Low Energy 5 supports printer setup through compatible Zebra mobile tools and supported low-data communication tasks.
The printer supports Zebra's printer software ecosystem and compatible label-design applications. Confirm that your operating system, printer driver, application and command language are suitable for the exact EZPL configuration before deployment.
Applications
- Retail price and shelf labels
- Product identification and barcode labels
- Inventory and asset labels
- Shipping and logistics labels within the supported print width
- Receipts, tags and compatible wristband media
- Office and small-business label printing
Compatibility and Media Requirements
- Uses compatible direct thermal media; thermal transfer ribbon is not required for direct thermal printing.
- Supports compatible media widths from approximately 15 mm to 60 mm.
- Supports media rolls with an outside diameter of up to 127 mm.
- USB and Ethernet connections require suitable ports, cabling and compatible software.
- Bluetooth Low Energy is intended for supported setup and communication functions; confirm application requirements before relying on it for print-data transfer.
- This part number specifies a US power cord. Check the power connection and local electrical compatibility before installation.
Specifications
| Brand | Zebra Technologies |
|---|
| Part Number / MPN | ZD4A022-D01E00EZ |
|---|
| Printer Model | ZD411d |
|---|
| Product Type | Desktop barcode and label printer |
|---|
| Print Technology | Direct thermal |
|---|
| Print Resolution | 203 dpi (8 dots/mm) |
|---|
| Maximum Print Speed | 6 inches per second (152 mm/s) |
|---|
| Maximum Print Width | 56 mm (2.2 inches) |
|---|
| Maximum Label Length | 991 mm (39 inches), subject to media and print-mode requirements |
|---|
| Media Width | 15–60 mm (approximately 0.585–2.36 inches) |
|---|
| Maximum Media Roll Diameter | 127 mm (5 inches) |
|---|
| Media Types | Compatible roll-fed or fanfold labels, tags, continuous media, receipts and wristbands |
|---|
| USB Connectivity | USB 2.0 |
|---|
| USB Host | 1 x USB Host port |
|---|
| Network Connectivity | Ethernet |
|---|
| Bluetooth | Bluetooth Low Energy 5 |
|---|
| Programming Language / Configuration | EZPL configuration for this part number |
|---|
| Printer Operating System | Zebra Link-OS |
|---|
| Flash Memory | 512 MB |
|---|
| SDRAM | 256 MB |
|---|
| Maximum Media Roll Outside Diameter | 127 mm |
|---|
| Dimensions (L x W x H) | Approximately 220 x 115 x 151 mm |
|---|
| Weight | Approximately 1.0 kg |
|---|
| Power Cord Configuration | US power cord |
|---|
DC Supplies Product Note
This configuration is a direct thermal printer, so it requires compatible heat-sensitive labels rather than thermal transfer ribbon. Before ordering supplies, confirm the label width, roll diameter, core size and media type. Also verify that the US power cord and EZPL configuration suit your installation and printing software.
Frequently Asked Questions
Does the Zebra ZD4A022-D01E00EZ require ink or toner?
No. This is a direct thermal printer that uses heat-sensitive media and does not require ink or toner.
What is the print resolution?
This specific configuration prints at 203 dpi, equivalent to 8 dots per millimetre.
Does this model support Ethernet?
Yes. Ethernet is included in the connectivity configuration identified by part number ZD4A022-D01E00EZ.
Can it print shipping and barcode labels?
Yes. It supports barcode and label printing on compatible media, provided the label dimensions and application requirements are within the printer's specifications.
Does it include Bluetooth?
Yes. This configuration includes Bluetooth Low Energy 5, intended for supported setup and communication functions. Confirm application requirements if you need wireless printing from a specific device.
What should I check before purchasing labels?
Check media width, roll diameter, core size, label material and whether the media is suitable for direct thermal printing. These details help ensure the labels fit and print correctly.
