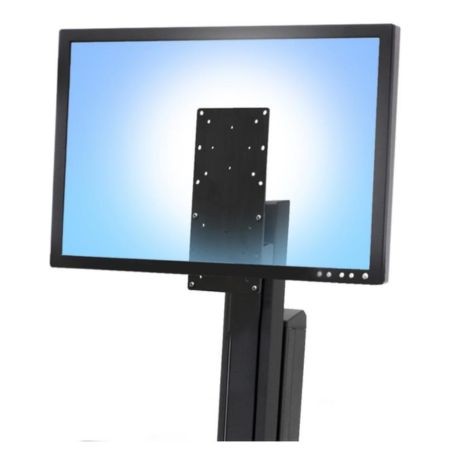

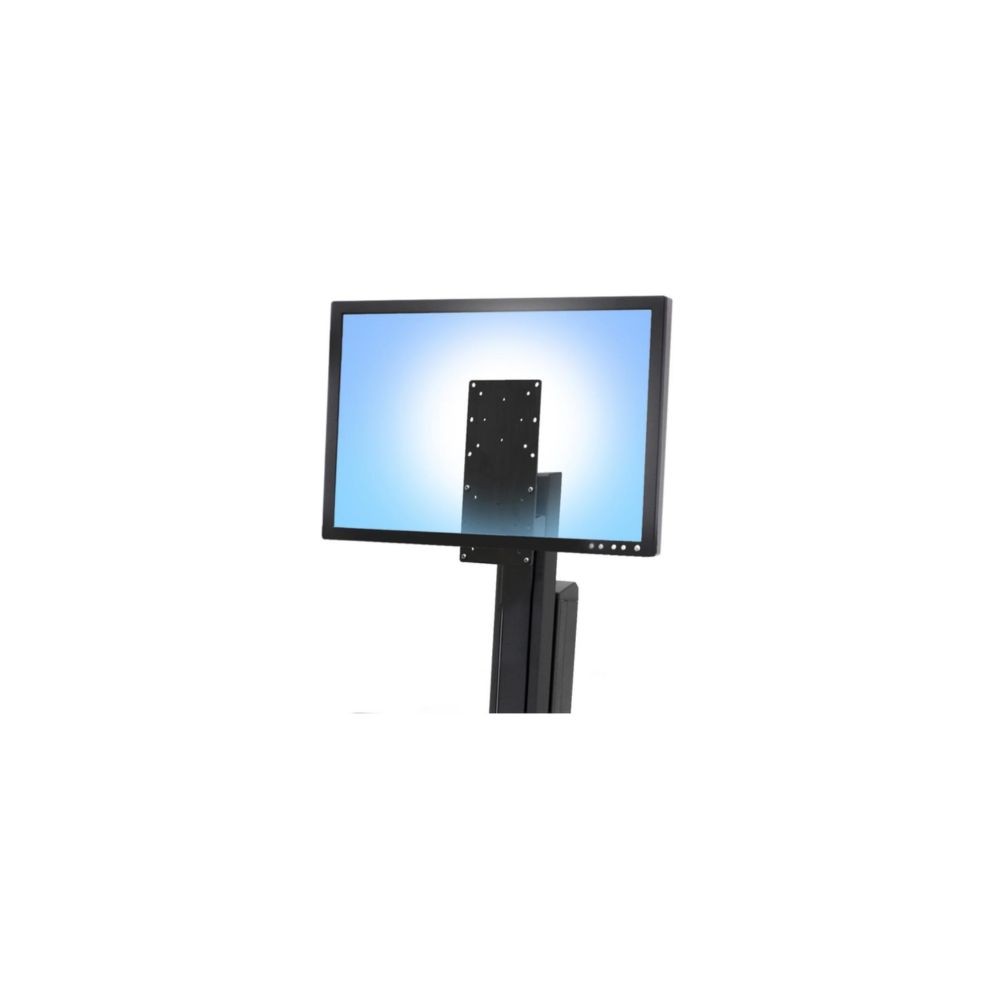

The Ergotron 97-845 Tall-User Kit is a monitor mounting accessory designed to increase screen height on compatible single-display workstations and VESA mounts. It raises the monitor by 4 inches (10 cm) or 6 inches (15 cm), helping users position the display at a more suitable viewing height relative to the keyboard.
Key Features
- Two height options: Raises the monitor by 4 inches or 6 inches, depending on the installation configuration.
- Durable steel construction: Built from solid steel with a black finish.
- VESA compatibility: Supports 75 x 75 mm and 100 x 100 mm mounting patterns.
- Installation hardware included: Includes the bracket, recess spacer and screws for mounting to the monitor.
- Designed for compatible mounts: Suitable for selected Ergotron WorkFit systems and other VESA mounts where portrait/landscape rotation is locked or unavailable.
Product Specifications
| Brand | Ergotron |
|---|
| Part Number / MPN | 97-845 |
|---|
| Product Type | Tall-user monitor mounting kit |
|---|
| Colour | Black |
|---|
| Material | Solid steel |
|---|
| Height Increase | 4 in (10 cm) or 6 in (15 cm) |
|---|
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
|---|
| Maximum Monitor Weight | 29 lb (13.2 kg), subject to the capacity of the supporting mount |
|---|
| Included Components | Bracket, recess spacer and mounting screws |
|---|
| Warranty | Five years, according to Ergotron's published product specifications |
|---|
Compatibility and Installation Notes
The 97-845 is listed for compatible Ergotron WorkFit-S, WorkFit-A and WorkFit-T products, as well as VESA mounts that do not provide portrait/landscape adjustment or have that adjustment locked. Confirm compatibility with your specific workstation or monitor arm before ordering.
Important: Portrait-to-landscape pivot rotation is unavailable when this kit is installed. The kit adds approximately 1 lb (0.45 kg) to the mounting system, so the supporting mount's rated capacity must be reduced accordingly. The monitor must not exceed 29 lb (13.2 kg), and the complete setup must remain within the supporting mount's own load limits.
Frequently Asked Questions
1. What does the Ergotron 97-845 kit do?
It raises a compatible single monitor to provide additional vertical positioning between the screen and keyboard.
2. How much higher can the monitor be positioned?
The kit provides a 4-inch (10 cm) or 6-inch (15 cm) height increase, depending on the configuration.
3. Which VESA mounting patterns does it support?
It supports 75 x 75 mm and 100 x 100 mm VESA mounting patterns.
4. Can the monitor still rotate between portrait and landscape?
No. Portrait/landscape pivot rotation is not available with the Tall-User Kit installed. Use it only with mounts where this adjustment is locked or not present.
5. What should I check before ordering?
Verify that your monitor mount is compatible, that its load rating accommodates both the monitor and added kit weight, and that the monitor weighs no more than 29 lb (13.2 kg).
DC Supplies Product Note
Before purchasing, confirm your existing mount model, VESA hole pattern and monitor weight. Compatibility and available height adjustment depend on the mounting system used with this accessory.
