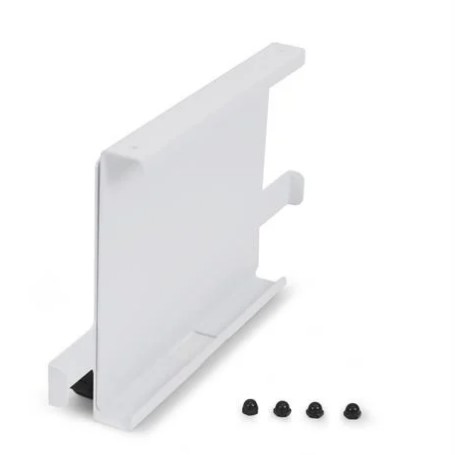

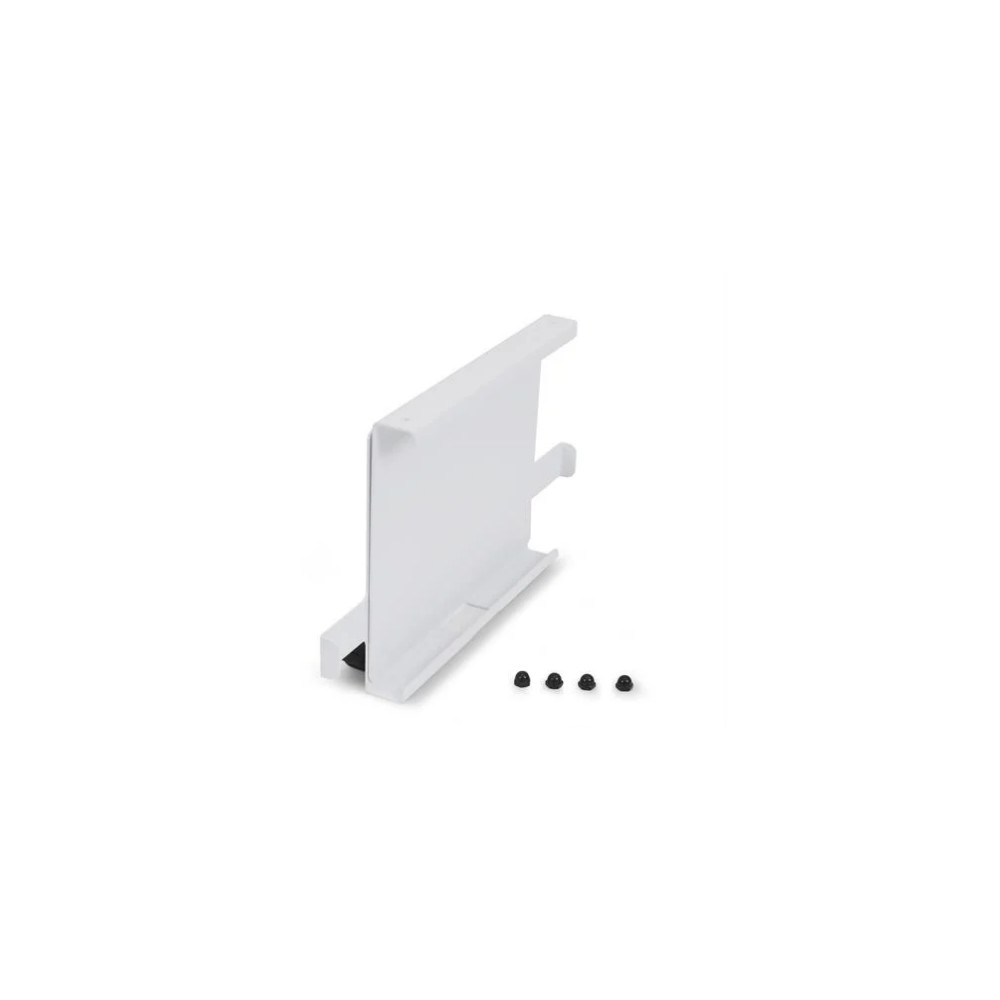

Ergotron 98-003 – SV10 Tablet Easel, White
Overview
The Ergotron 98-003 SV10 Tablet Easel is an adjustable tablet mounting bracket designed to convert compatible Ergotron cart configurations for tablet use. The easel accommodates tablets with different chassis dimensions by allowing the bracket height to be adjusted to securely grip the device. Ergotron identifies the 98-003 as the Tablet Easel within the SV10 Tablet Riser & Easel Conversion Kit.
Technical Information
The 98-003 uses a VESA MIS-D 100 × 100 mm mounting interface and supports tablets up to 12 inches with a maximum load of 2.5 lb (1.1 kg). The adjustable easel is designed for tablets up to 12.25 inches wide, 9.5 inches high and 0.8 inches thick.
Compatibility
The 98-003 is part of the SV10 Tablet Riser & Easel Conversion Kit and is designed to attach to the compatible Tablet Riser 98-002. Ergotron documentation also lists the 98-003 as an accessory for the StyleView Pole Cart and SV10 tablet configurations.
Key Features
- Adjustable tablet easel for compatible Ergotron cart and arm configurations.
- Supports tablets up to 12 inches and up to 2.5 lb (1.1 kg).
- Uses a 100 × 100 mm VESA mounting interface.
- Adjustable bracket height accommodates different tablet chassis sizes.
- White powder-coated steel construction with included attachment hardware.
Applications
The 98-003 is intended for mobile tablet workstation applications where a tablet needs to be positioned above the cart or worksurface. It is suitable for compatible Ergotron SV10 and StyleView configurations in environments requiring a compact, adjustable tablet mounting solution.
DC Supplies Product Note
This listing is for the exact Ergotron 98-003 SV10 Tablet Easel, White. The easel is an accessory and does not include the SV10 cart or the separate 98-002 Tablet Riser. The tablet itself is also not included.
Specifications
| Brand | Ergotron |
|---|
| Manufacturer Part Number | 98-003 |
|---|
| Product Type | Tablet Easel / Mounting Bracket |
|---|
| Product Name | SV10 Tablet Easel |
|---|
| Color | White |
|---|
| Supported Device | Tablet |
|---|
| Maximum Screen Size | 12 in |
|---|
| Maximum Load Capacity | 2.5 lb (1.1 kg) |
|---|
| Maximum Tablet Width | 12.25 in (31 cm) |
|---|
| Maximum Tablet Height | 9.5 in (24 cm) |
|---|
| Minimum Tablet Height | 6.5 in (16.5 cm) |
|---|
| Maximum Tablet Thickness | 0.8 in (2 cm) |
|---|
| Mounting Standard | VESA MIS-D, 100 × 100 mm |
|---|
| Material | Steel |
|---|
| Finish | Powder-coated painted finish |
|---|
| Included | 2-piece easel bracket and attachment hardware |
|---|
| Product Weight | 2.3 lb |
|---|
| Shipping Dimensions | 14.5 × 11.5 × 3.5 in (37 × 29 × 9 cm) |
|---|
| Shipping Weight | 3.4 lb (1.4 kg) |
|---|
| Warranty | 5 years |
|---|
The listed specifications are based on exact-model documentation for MPN 98-003.
FAQs
What is the Ergotron 98-003?
The 98-003 is the Ergotron SV10 Tablet Easel, an adjustable mounting bracket for securing compatible tablets to an Ergotron cart, arm or pivot.
What size tablet does the 98-003 support?
The published maximum screen size is 12 inches. The tablet must also remain within the specified maximum width, height and thickness dimensions.
What is the maximum load capacity?
The maximum supported load is 2.5 lb (1.1 kg).
What VESA pattern does it use?
The easel uses a 100 × 100 mm VESA MIS-D mounting pattern.
Is the tablet included?
No. The 98-003 is the tablet easel accessory and does not include a tablet.
Is the 98-003 adjustable?
Yes. The easel bracket height adjusts to grip tablets with different chassis dimensions.
What does the 98-003 include?
The package includes the two-piece easel bracket and attachment hardware.
What is the warranty?
The Ergotron 98-003 carries a five-year warranty.
