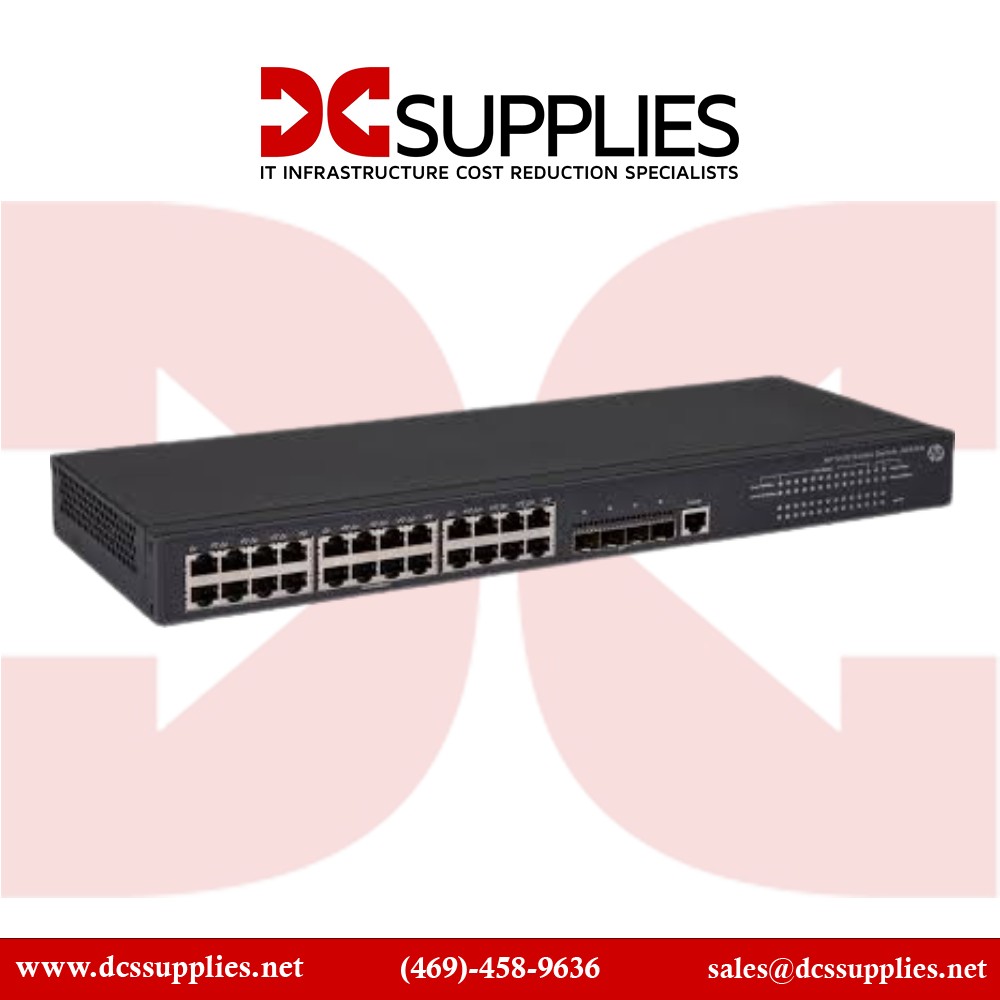

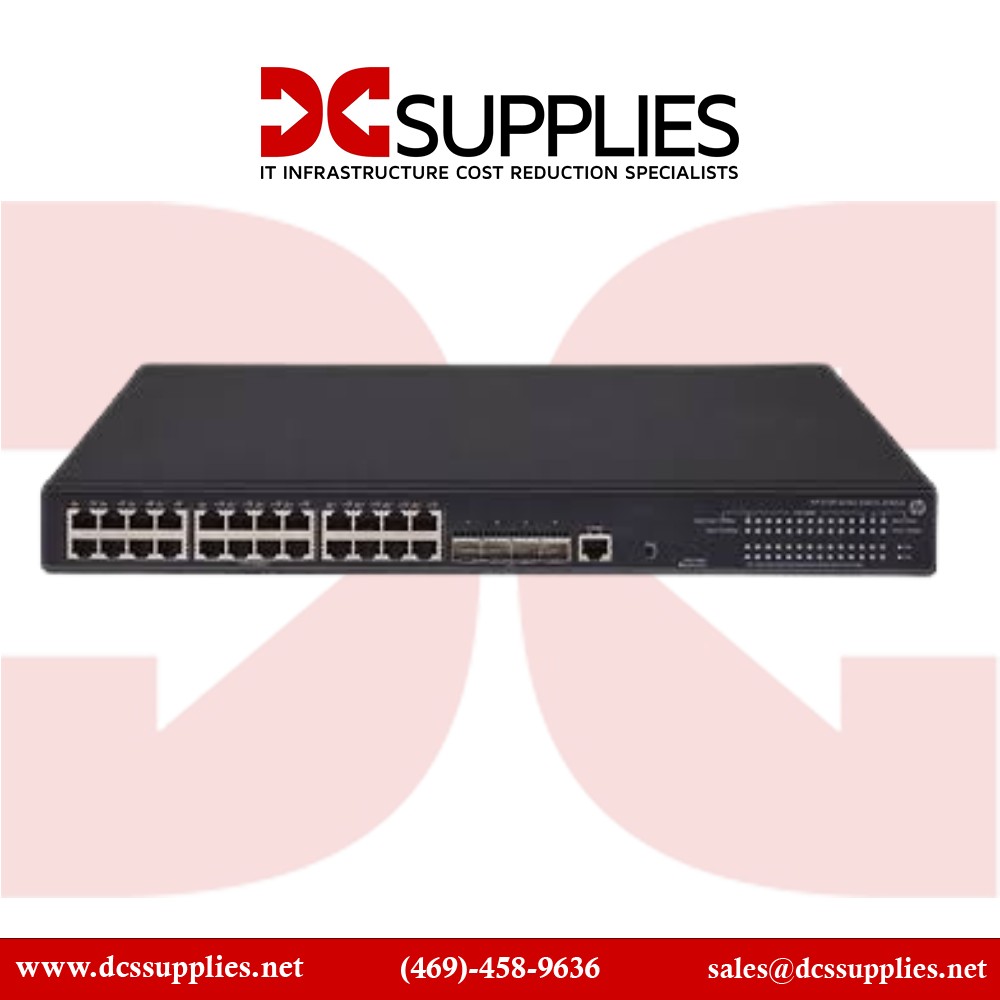

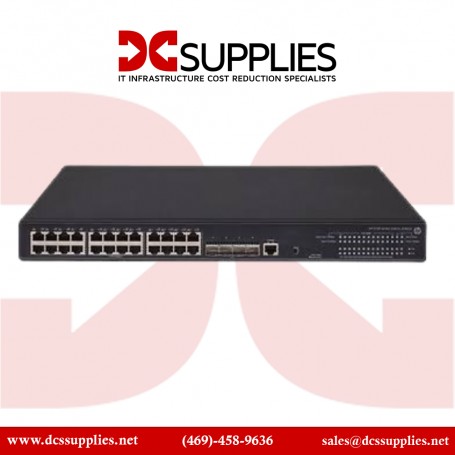

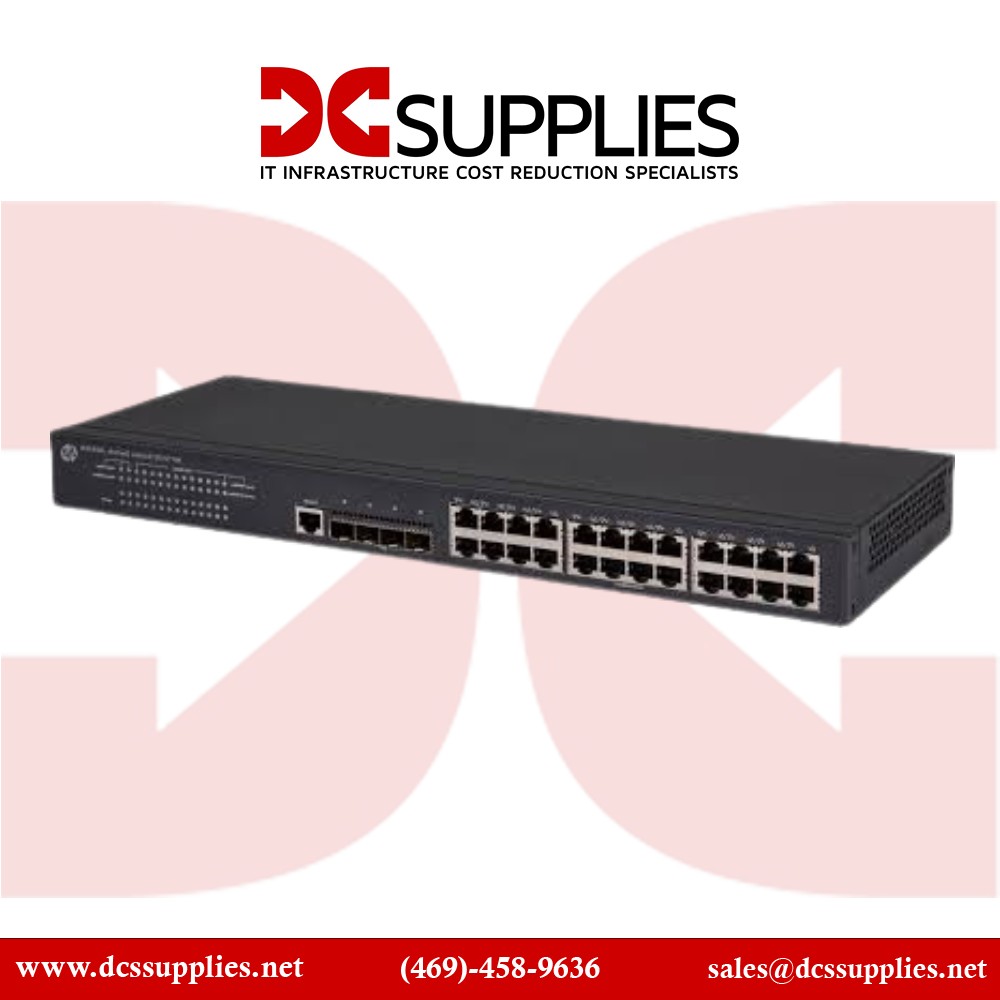

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.
| General Information |
|---|
| Brand Name: |
HPE |
| Manufacturer: |
Hewlett Packard Enterprise |
| Manufacturer Part Number: |
JG932A#ABA |
| Manufacturer Website Address: |
http://www.hpe.com |
| Packaged Quantity: |
1 |
| Product Model: |
5130-24G-4SFP+ EI |
| Product Name: |
5130-24G-4SFP+ EI Switch |
| Product Series: |
5130 EI |
| Product Type: |
Layer 3 Switch |
| I/O Expansions |
|---|
| Expansion Slot Type: |
SFP+ |
| Number of SFP+ Slots: |
4 |
| Number of Total Expansion Slots: |
4 |
| Interfaces/Ports |
|---|
| Bypass: |
No |
| LRE Port: |
No |
| Management Port: |
Yes |
| Modular: |
No |
| Number of Network (RJ-45) Ports: |
24 |
| Port/Expansion Slot Details: |
10 Gigabit Ethernet |
|
24 x Gigabit Ethernet Network |
|
Gigabit Ethernet |
| Token Ring Port: |
No |
| Total Number of Network Ports: |
24 |
| Uplink Port: |
Yes |
| USB: |
No |
| Management & Protocols |
|---|
| Manageable: |
Yes |
| Management: |
- Web-based Management
- SNMP v1/2c/3
- Command Line Interface (CLI)
- RMON
- DHCP
- IMC
- MIB
|
| Media & Performance |
|---|
| Ethernet Technology: |
10 Gigabit Ethernet |
|
Gigabit Ethernet |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
|
10GBase-X |
| Memory |
|---|
| Flash Memory: |
128 MB |
| Memory Technology: |
SDRAM |
| Standard Memory: |
1 GB |
| Miscellaneous |
|---|
| Certifications & Standards: |
Safety:
- UL 60950-1
- EN 60825-1 Safety of Laser Products-Part 1
- EN 60825-2 Safety of Laser Products-Part 2
- IEC 60950-1
- CAN/CSA-C22.2 No. 60950-1
- Anatel
- ULAR
- GOST
- EN 60950-1/A11
- FDA 21 CFR Subchapter J
Emissions:
- EMC Directive 2004/108/EC
- FCC (CFR 47, Part 15) Class A
- EN 61000-4-11:2004
- ANSI C63.4-2009
- EN 61000-3-3:2008
- VCCI V-4/2012.04
- EN 6100-3-2:2006+A1:2009 + A2:2009
- EN 61000-3-2:2006+A1:2009+A2:2009
- EN 61000-4-3:2006
- EN 61000-4-4:2012
- EN 61000-4-5:2006
- EN 61000-4-6:2009
- AS/NZS CISPR 22:2009 Class A
- CISPR 22:2008 Class A
- EN 55022:2010 Class A
- EN 61000-4-29: 2000
- CISPR 24:2010
- EN 300 386 V1.6.1
- VCCI V-3/2013.04 Class A
Immunity:
- Generic: EN 55024
- ESD: EN300 386
IEEE Standards:
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1w
- 802.3
- 802.3a
- 802.3a
- 802.3i
- 802.3x
- 802.3z
|
| Environmental Certification: |
RoHS |
| Environmentally Friendly: |
Yes |
| Package Contents: |
- 5130-24G-4SFP+ EI Switch
- Mounting Brackets
- Power Cord
|
| Network & Communication |
|---|
| Layer Supported: |
3 |
| Physical Characteristics |
|---|
| Compatible Rack Unit: |
1U |
| Depth: |
6.3" |
| Form Factor: |
Rack-mountable |
| Height: |
1.7" |
| Weight (Approximate): |
11.02 lb |
| Width: |
17.3" |
| Power Description |
|---|
| Input Voltage: |
120 V AC |
| PoE (RJ-45) Port: |
No |
| Power Source: |
Power Supply |
| Reliability |
|---|
| MTBF: |
847584 Hour |
| Warranty |
|---|
| Limited Warranty: |
Lifetime |
| Basic |
|---|
| Brand Name: |
HPE |
| Ethernet Technology: |
10 Gigabit Ethernet |
|
Gigabit Ethernet |
| Expansion Slot Type: |
SFP+ |
| Form Factor: |
Rack-mountable |
| Layer Supported: |
3 |
| Manageable: |
Yes |
| Media Type Supported: |
Twisted Pair |
| Network Technology: |
10/100/1000Base-T |
|
10GBase-X |
| Number of Total Expansion Slots: |
4 |
| PoE (RJ-45) Port: |
No |
| Port/Expansion Slot Details: |
10 Gigabit Ethernet |
|
Gigabit Ethernet |
| Power Source: |
Power Supply |
| Product Family: |
5130 EI |
| Product Type: |
Layer 3 Switch |
| Total Number of Network Ports: |
24 |
