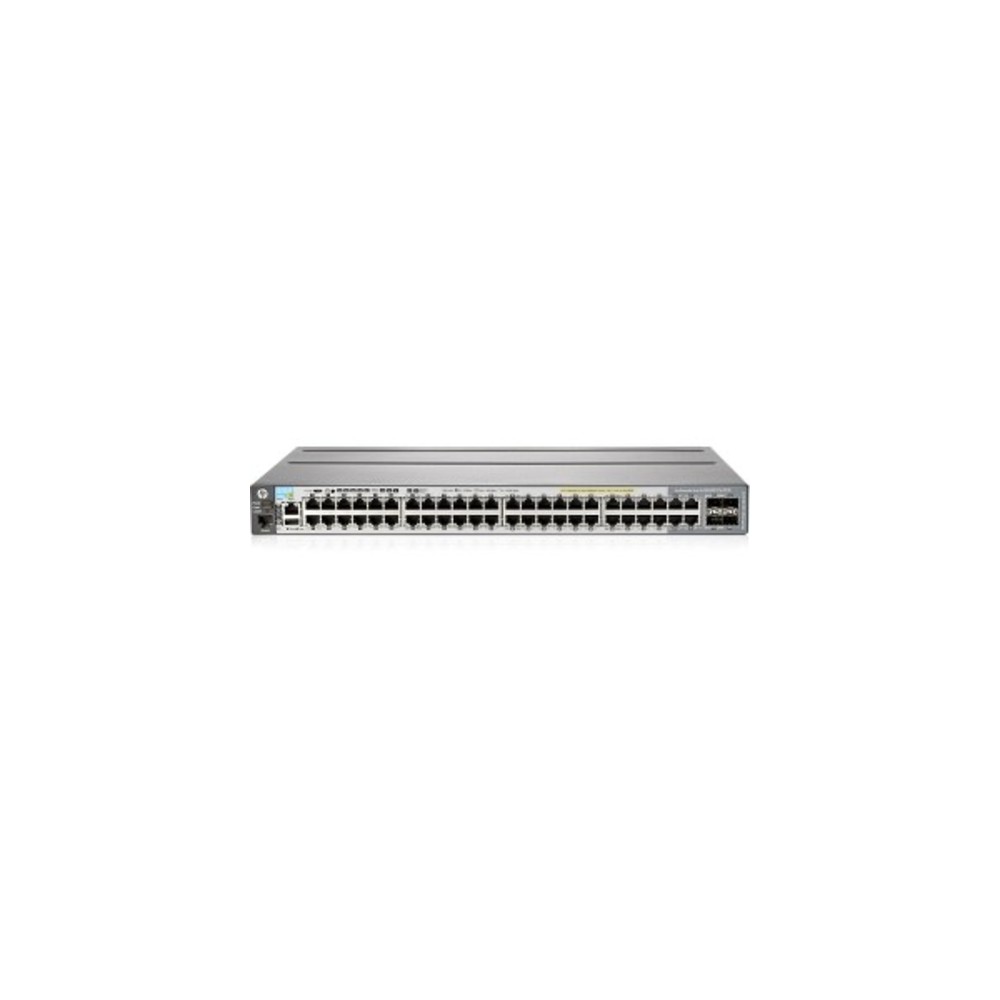

HPE Aruba (J9729A) 2920 48G POE+ Switch P/N View larger

HPE Aruba J9729A 2920 POE Ethernet Switch 48G

New

1 U Aruba 2920 48G PoE+ managed switch (HPE J9729A) with 48 gigabit PoE+ ports, modular uplinks and stacking support.
×




  • New

Detailed Specifications

HPE J9729A Aruba 2920 48G PoE+ Switch

Overview

The HPE J9729A is a 1U rack-mount managed access switch from the Aruba 2920 series, designed for enterprise campus, branch office or wiring-closet deployments requiring both high-density connectivity and Power over Ethernet Plus (PoE+). It delivers 44 autosensing 10/100/1000 Mb/s PoE+ RJ-45 ports alongside 4 dual-personality 10/100/1000 Mb/s PoE+ ports (which also function as SFP fibre ports). The model supports a modular architecture with two uplink/expansion slots and a stacking module slot, enabling growth in throughput and resilience. With a switching capacity of 176 Gb/s and a throughput of up to 130.9 Mpps, this switch addresses demanding edge-network loads while its 370 W PoE+ power budget allows power delivery to access points, IP phones and other powered devices within the same chassis.

Key Features

  • 48 × 10/100/1000 Mb/s PoE+ ports (44 regular + 4 dual-personality) in a 1U form-factor.

  • Up to 370 W total PoE+ power budget for edge-device power and data on same chassis.

  • Switching capacity of 176 Gb/s and packet throughput of up to 130.9 Mpps.

  • Modular uplink slots and stacking support let you add 10 GbE uplinks and stack multiple units.

  • Enterprise-grade features: Layer 2 switching, static/RIP routing, IPv6 host mode, ACLs, sFlow and stacking.

Technical Specifications

SpecificationDetail
Brand HPE
Part Number J9729A
Product Type Aruba 2920 48G PoE+ Switch
Processor Installed Tri-core ARM1176 @ 625 MHz
Processor Supported (Max) N/A
Memory Installed 512 MB SDRAM
Memory Slots N/A
Maximum Memory Supported N/A
Drive Bays N/A
Storage Controller N/A
Network Adapter 44 × 10/100/1000 Mb/s PoE+ + 4 × dual-personality 10/100/1000 Mb/s PoE+ ports
Form Factor (H × W × D) 1.73 in × 17.42 in × 13.23 in
Weight (lbs) Approx. 12.57 lbs
Power Supply Internal AC 100-240 V PSU; PoE+ budget up to 370 W
Rack Units 1U
