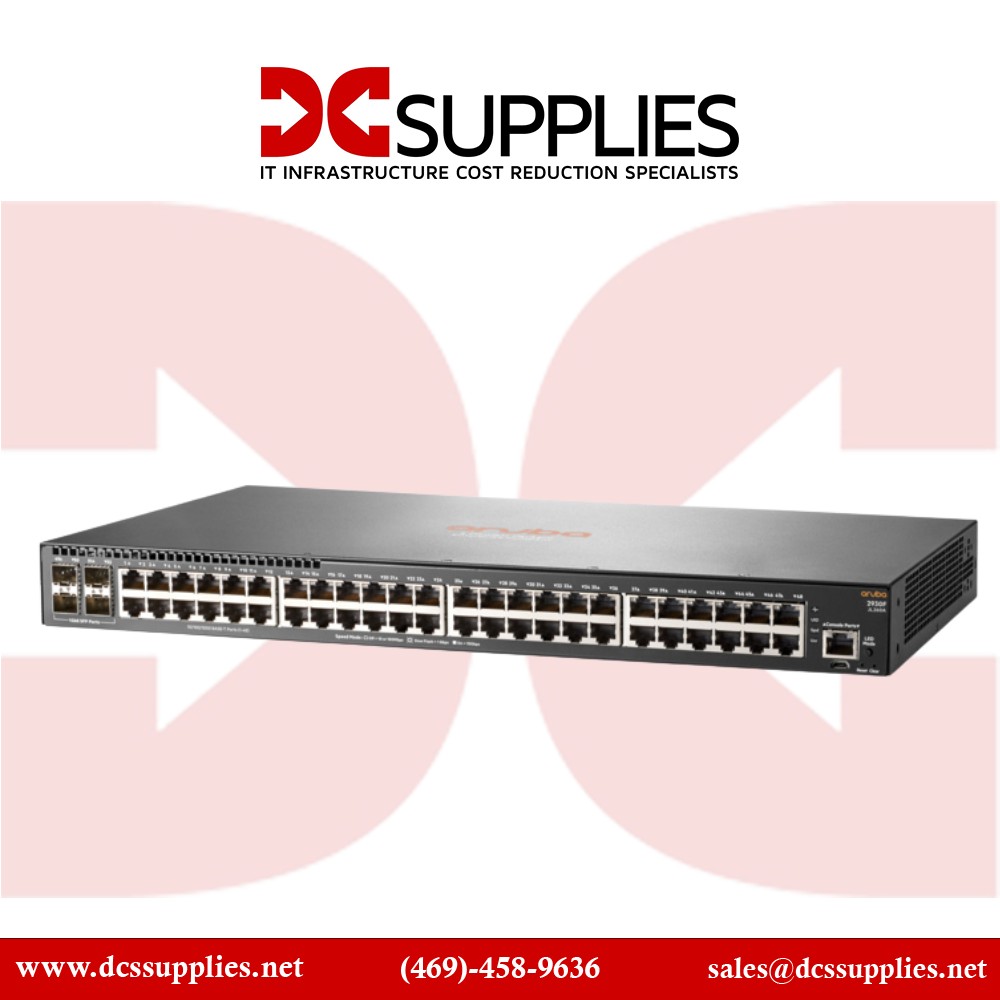

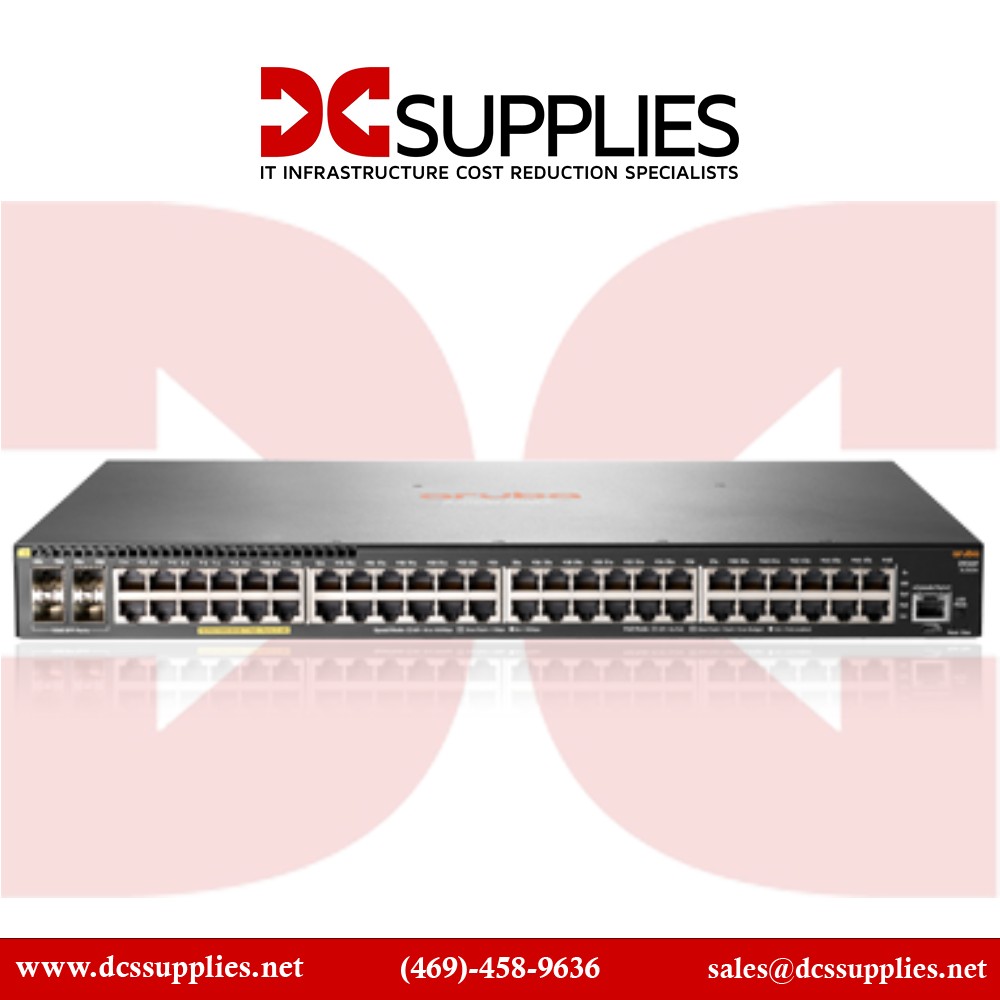

HPE Aruba 2930F 48G 4SFP - switch - 48 ports - managed - rack-mountable View larger

HPE Aruba 2930F 48G 4SFP 48 ports - managed - rack-mountable switch P/N JL260A

JL260A

New

In Stock

HPE Aruba 2930F 48G 4SFP - switch - 48 ports - managed - rack-mountable

×




HP, HP Aruba, HPE Switch, HP Switching, HP networking swtich, Aruba, HPE Aruba 2930F Switch, HP JL260A, HPE JL260A, HPE Aruba switch, JL260A, HPE Aruba 2930F 48G 4SFP - switc

$860.00

Detailed Specifications

HPE Aruba 2930F 48G 4SFP - switch - 48 ports - managed - rack-mountable

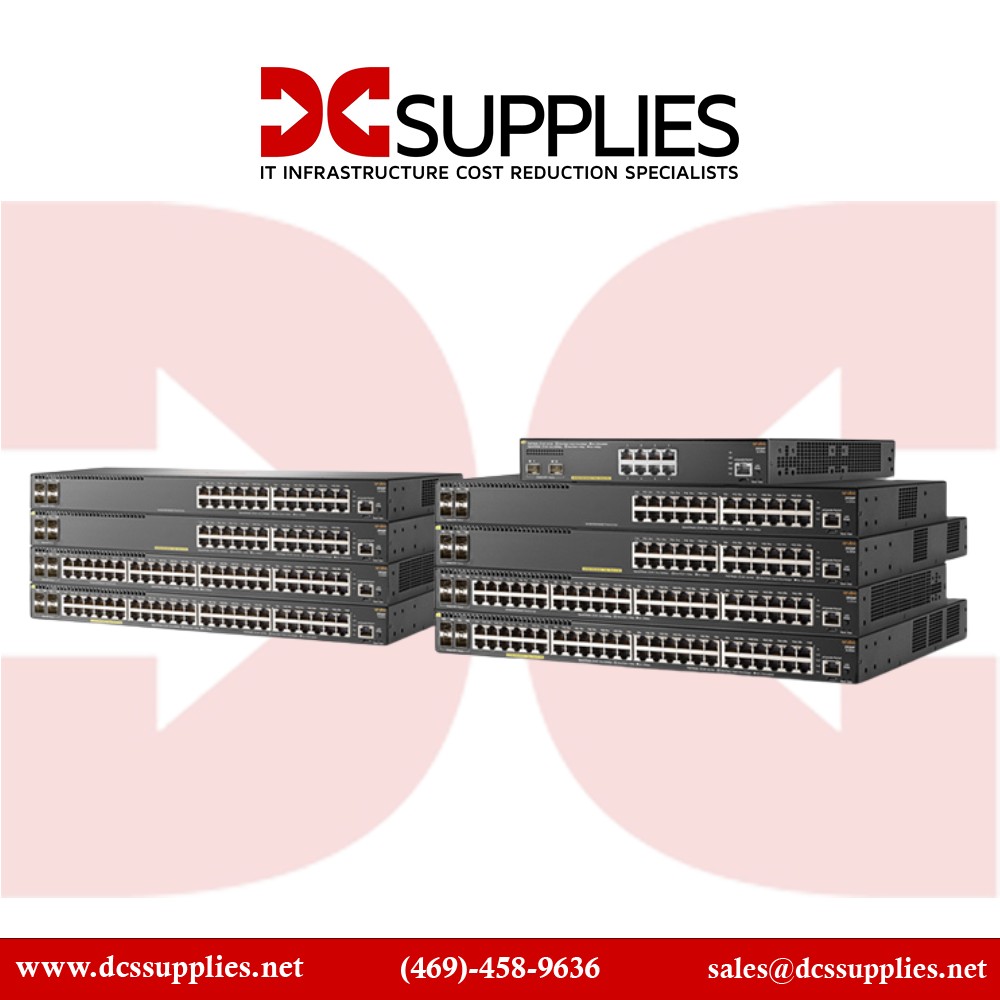

The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.

Main Features
    • Switch
    • L3
    • managed
    • 48 x 10/100/1000 + 4 x Gigabit SFP (uplink)
    • rack-mountable

Technical Specifications

  • Environmental Parameters

    • 32 °F
    • 113 °F
    • 15 - 95% (non-condensing)
    • -40 °F
    • 158 °F
    • 15 - 90% (non-condensing)
  • Header

    • PC
    • English
    • United States
    • Aruba
    • 1
    • Aruba
    • 2930F 48G 4SFP
    • Aruba
  • Interface Provided

    • 1
    • Serial (console)
    • 4
    • Gigabit LAN
    • SFP
    • 48
    • 1000Base-T
    • RJ-45
  • Miscellaneous

    • 80 PLUS Silver, CISPR 22 Class A, CISPR 24, CNS 13438, CSA C22.2 No. 60950-1-07 Second Edition, EN 55022:2010, EN 55024:2010, EN 60825-1:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, FCC CFR47 Part 15 A, ICES-003 Class A, IEC 60825-1:2007, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC60950-1:2005+A1:2009+A2:2013, UL 60950-1 Second Edition, VCCI Class A
    • CHAP, PAP, RADIUS, TACACS, TACACS+
    • 1
    • MD5, SSL
    • 4 bumper feet, 4 mounting ears, Cable tie, Mounting screws
    • Black
  • Networking

    • Switch
    • Wired/Wireless
    • CLI, RMON 1, SNMP, SNMP 1, SNMP 2, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
    • IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
    • 48
    • Access Control List (ACL) support, ARP support, BOOTP support, Class of Service (CoS), CPU protection, DHCP protection, DHCP server, DHCP support, DiffServ support, Dynamic ARP protection, Dynamic VLAN Support (GVRP), Flow control, Full duplex capability, ICMP Router Discovery Protocol (IRDP), IGMP snooping, Internet Control Message Protocol (ICMP), IPv6 support, Jumbo Frames support, Link Aggregation Control Protocol (LACP), LLDP support, MAC address lockout, Management Information Base (MIB), Management Information Base (MIB) II, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), OpenFlow support, Quality of Service (QoS), sFlow, SNTP support, Spanning Tree Protocol (STP) support, STP Root Guard, Syslog support, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Extensible LAN (VXLAN), VLAN support
    • BGP, CIDR, IGMP, IGMPv2, IGMPv3, MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IP routing, Static IPv4 routing, Static IPv6 routing
    • 32K entries
    • Stackable
    • Network hubs and switches
    • PoE
    • Layer 3
    • Yes
    • Rack-mountable
    • Gigabit Ethernet
  • Power Device

    • 1
    • 46.6 Watt
    • AC 120/230 V
    • Internal power supply
  • Processor

    • Cortex-A9
    • 1
    • ARM
    • 1.016 GHz
  • Service

    • Limited warranty
    • Lifetime
  • Slot Provided

    • Expansion slot
    • 1
    • 1
  • Software

    • Command Line Interface (CLI), HP Intelligent Management Center, HP Web browser
  • Dimensions & Weight

    • 17.4 in
    • 9.7 in
    • 1.7 in
    • 6.83 lbs
  • Service & Support

    • Limited lifetime warranty
  • Capacity

    • IPv4 routing table entries
    • 10000
    • IPv6 routing table entries
    • 5000
    • Jumbo frame size
    • 9220
  • Chassis

    • 0
    • 4
  • Flash Memory

    • 4 GB
  • Performance

    • Latency (1 Gbps)
    • 3.8 µs
    • Switching capacity
    • 104 Gbps
    • Throughput
    • 77.4 Mpps
  • Ports

    • 48
    • 10/100/1000
  • Ports (2nd)

    • 4
    • Gigabit SFP (uplink)
  • RAM

    • 1 GB
    • DDR3 SDRAM
