Detailed Specifications

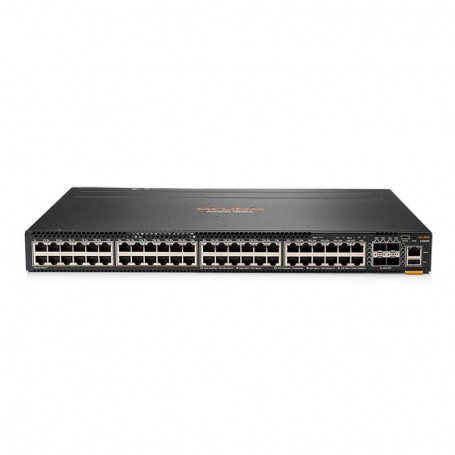

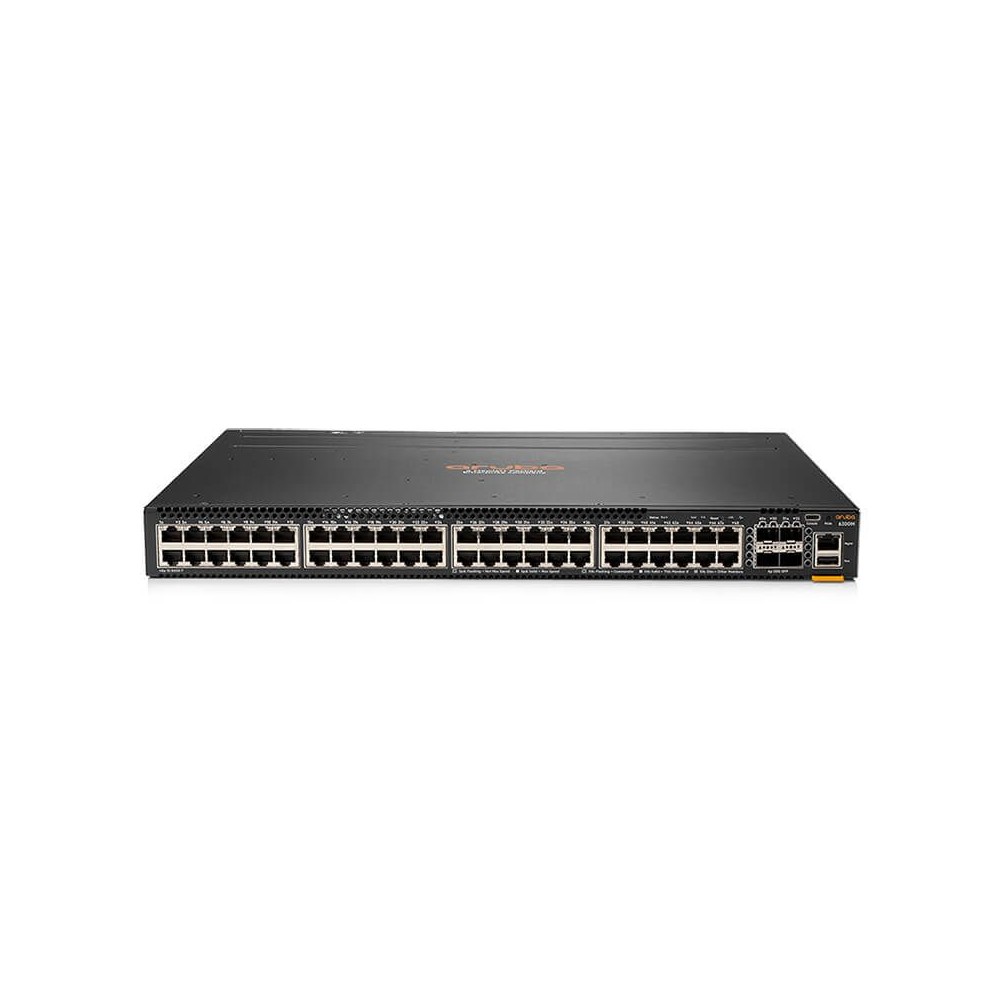

HPE Aruba JL663A 6300M 48-port 1GbE and 4-port SFP56 Switch
Overview JL663A:
The Aruba JL663A CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba JL663A NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.
Specifications JL663A:
| Product Name |
Aruba 6300M 48G 4SFP56 Switch |
| Manufacturer Part Number |
JL663A |
| Product Type |
Ethernet Switch |
| Manageable |
Yes |
| Ethernet Technology |
Gigabit Ethernet
50 Gigabit Ethernet
|
| Number of Total Expansion Slots |
4 |
| Product Family |
CX 6300 |
| Stack Port |
Yes |
| Media Type Supported |
Twisted Pair
Optical Fiber
|
| Total Number of Network Ports |
48 |
| Redundant Power Supply Supported |
Yes |
| Expansion Slot Type |
SFP |
| Form Factor |
Rack-mountable |
| Power Consumption |
75 W |
| Power Source |
Power Supply |
| Layer Supported |
3 |
| Environmentally Friendly |
Yes |
| Compatible Rack Unit |
1U |
| Number of SFP Slots |
4 |
| Modular |
Yes |
| Uplink Port |
Yes |
| Port / Expansion Slot Details |
48 x Gigabit Ethernet Network
4 x 50 Gigabit Ethernet Uplink
|
| Height |
1.7" |
| Width |
17.4" |
| Depth |
15.2" |
| Product Series |
CX 6300 |
| Product Model |
6300M |
| Network Technology |
10/100/1000Base-T
50GBase-X
|
| Limited Warranty |
Lifetime |
