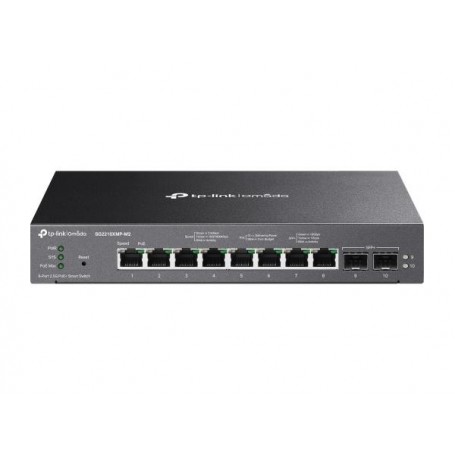

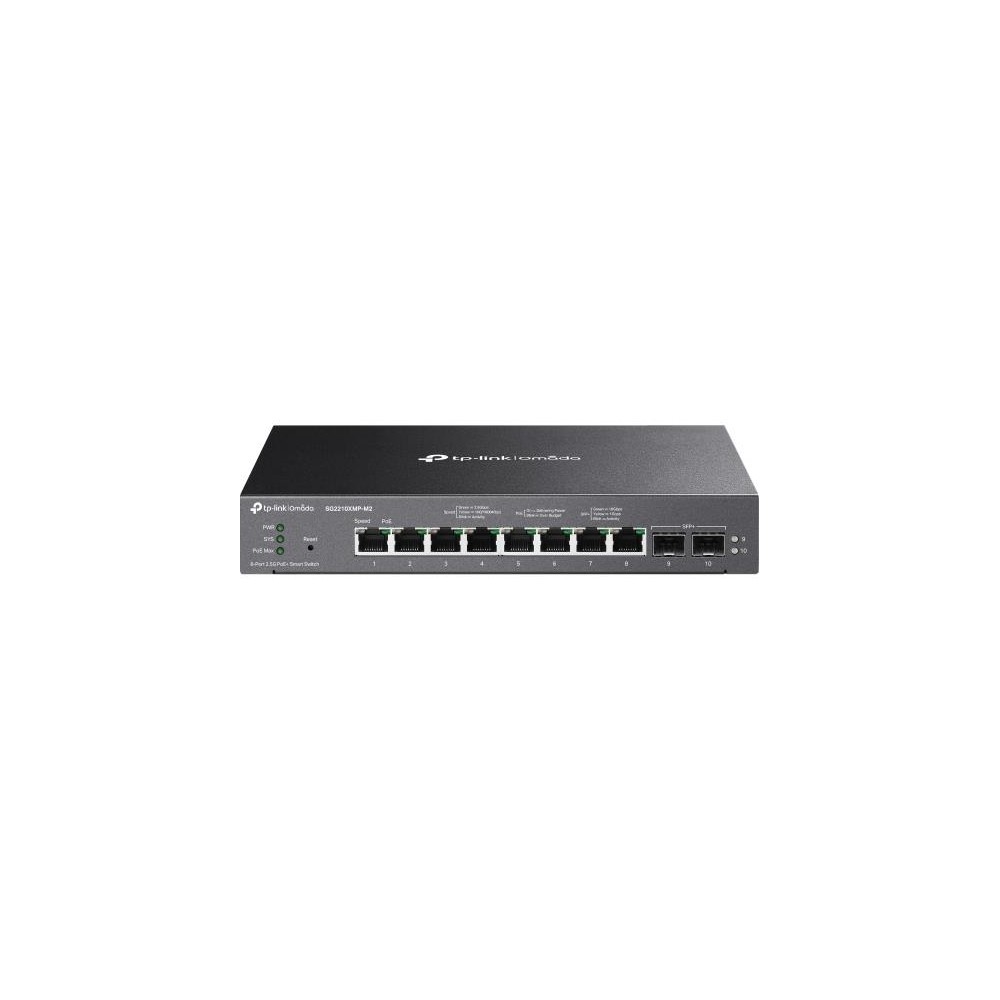

The TP-Link SG2210XMP-M2 is an Omada managed smart switch designed for high-speed business and enterprise network deployments. It provides eight 2.5Gbps RJ45 PoE+ ports and two 10Gbps SFP+ slots, combining multi-gigabit access connectivity with high-speed fiber uplinks.
Network Interfaces
The switch provides eight 10/100/1000/2500Mbps RJ45 ports supporting 802.3af/at PoE+ and two 10Gbps SFP+ slots for high-speed fiber connectivity. The RJ45 ports can provide up to 30W per port, with a total PoE power budget of 160W.
Management and Performance
The SG2210XMP-M2 supports centralized management through the Omada platform as well as standalone management. Network management features include VLAN, QoS, IGMP Snooping, static routing, SNMP, RMON, SSH and SSL-based management. The switch provides 80Gbps switching capacity and a 59.52Mpps packet forwarding rate.
Key Features
- Eight 2.5Gbps RJ45 PoE+ ports
- Two 10Gbps SFP+ uplink slots
- 160W total PoE power budget with up to 30W per port
- 80Gbps switching capacity and 59.52Mpps forwarding rate
- Fanless design for quiet operation
Applications
- Multi-gigabit business networks
- PoE access point deployments
- IP camera and VoIP deployments
- High-speed network uplinks
- Omada-managed enterprise and SMB networks
DC Supplies Product Note
The SG2210XMP-M2 combines 2.5GbE PoE+ access ports with 10Gbps SFP+ uplinks, making it suitable where multi-gigabit endpoint connectivity and higher-speed aggregation are required. The 160W PoE budget should be checked against the combined power requirements of connected devices.
Specifications
| Brand | TP-Link |
| Part Number / MPN | SG2210XMP-M2 |
| Product Type | Managed PoE+ Smart Switch |
| Series | Omada Access Pro |
| RJ45 Ports | 8 x 10/100/1000/2500Mbps |
| SFP+ Slots | 2 x 10Gbps |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | 8 |
| Maximum PoE per Port | 30W |
| PoE Power Budget | 160W |
| Switching Capacity | 80Gbps |
| Packet Forwarding Rate | 59.52Mpps |
| MAC Address Table | 16K |
| Packet Buffer | 12Mbit |
| Jumbo Frame | 9KB |
| Flash Memory | 32MB |
| DRAM | 256MB |
| Management | Omada Controller / Web / CLI |
| Routing | Static IPv4/IPv6 Routing |
| Fan | Fanless |
| Power Supply | 53.5V DC / 3.37A Adapter |
| Installation | Desktop / Wall Mounting |
| Operating Temperature | -5°C to 40°C |
| Dimensions | 8.9 x 5.2 x 1.4 in |
| Net Weight | 2.49 lbs |
| Certifications | CE, FCC, RoHS |
Frequently Asked Questions
How many PoE ports does the SG2210XMP-M2 have?
The switch has eight 2.5Gbps RJ45 PoE+ ports.
What is the total PoE budget?
The total PoE power budget is 160W, with up to 30W available per PoE port.
Does the SG2210XMP-M2 have 10Gbps uplinks?
Yes. It provides two 10Gbps SFP+ slots for high-speed network uplinks.
Can the switch be managed through Omada?
Yes. The SG2210XMP-M2 supports centralized management through the Omada platform and also supports standalone management.
Is the SG2210XMP-M2 fanless?
Yes. The switch uses a fanless design.
Is a rack-mount kit included?
The TP-Link datasheet states that the RackMount Kit-D226 is not included and must be purchased separately. :contentReference[oaicite:0]{index=0}
