Detailed Specifications

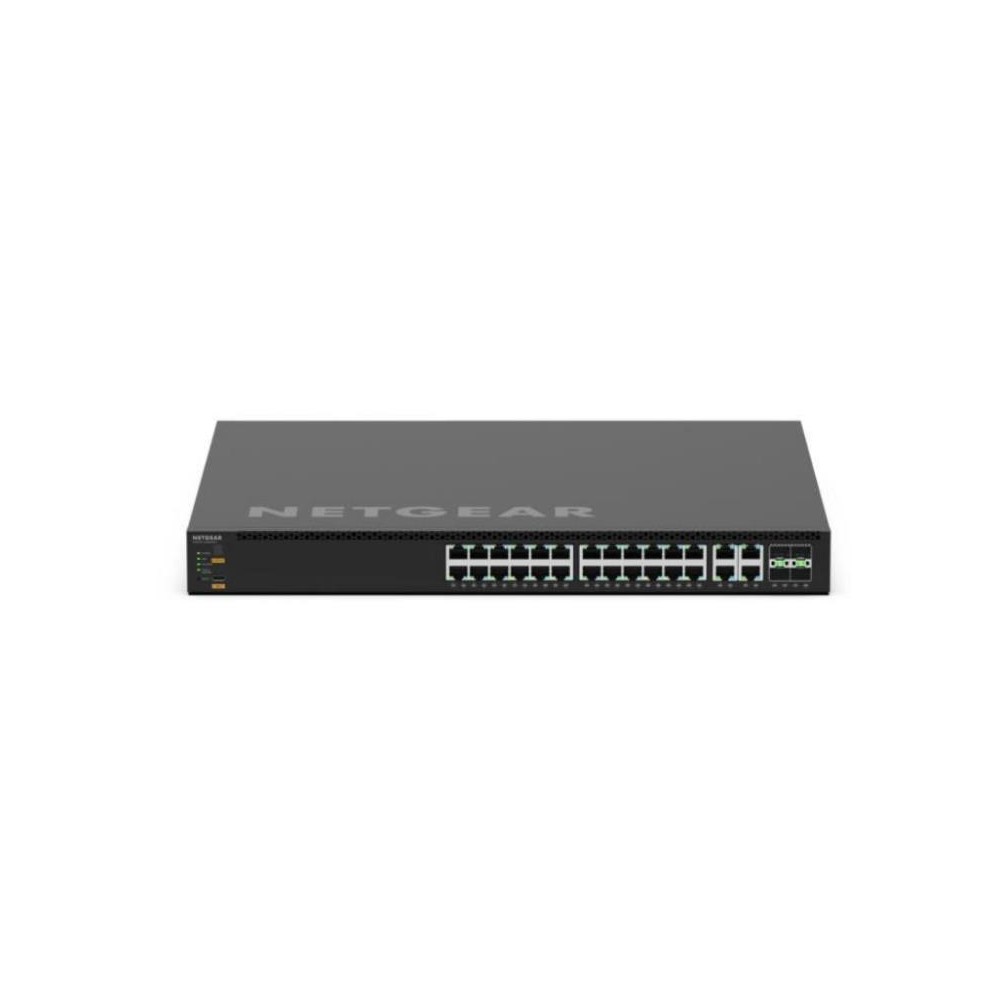

NETGEAR MSM4332-100NES - Managed Switch
Overview :
The NETGEAR MSM4332-100NES (M4350-24M4X4V) is a 32-port multi-gigabit PoE++ Layer 3 managed switch custom-engineered for pro AV-over-IP and high-density enterprise IT infrastructures.Systems integrators, broadcast engineers, and IT administrators deploy this switch to route low-latency uncompressed video, Dante/AES67 audio, and high-rate data streams across multi-site networks.
It features 24 x 2.5G RJ45 ports and 4 x 10G Multi-Gig RJ45 ports, all supporting Ultra60 PoE++ (IEEE 802.3bt), alongside 4 x 25G SFP28 fiber uplink ports.Powered by an 800W internal supply, it delivers a base PoE budget of 522W, expandable up to 2,520W with modular PSUs.The unit runs on a 400 Gbps switching fabric with a 297.6 Mpps forwarding rate.
Built for 19-inch rack mounting in studio control rooms, equipment racks, and data center edge locations.It includes NETGEAR AV OS, pre-configured NDI/Dante profiles, IGMP Plus, PTP ST 2110 clock support, and full L3 routing capabilities. Do not deploy where non-PoE system power load exceeds installed PSU capacity or where environmental operating temperatures exceed 50°C.
Key Features :
28 PoE++ ports deliver 60W power with 522W base budget
4 dedicated 25G SFP28 ports ensure ultra-fast fiber uplinks
400 Gbps switching fabric handles uncompressed 4K/8K AV flows
Pre-configured AV OS profiles streamline Pro AV installations
Modular dual PSU slots enable power redundancy up to 2520W
Specifications :
| Parameter | Detail |
| Brand | NETGEAR |
| Part Number | MSM4332-100NES |
| Product Type | Managed Switch |
| Product Series | M4350 (M4350-24M4X4V) |
| Total Network Ports | 32 Ports (24 x 2.5G, 4 x 10G Multi-Gig, 4 x 25G SFP28) |
| PoE Standards & Budget | IEEE 802.3bt PoE++ (60W/port); 522W Base, Max 2,520W |
| Switching Capacity | 400 Gbps |
| Forwarding Rate | 297.6 Mpps |
| Packet Buffer Memory | 32 MB |
| MAC Address Table Size | 16K entries |
| Layer Support | Layer 3 (Static, Policy-Based, Dynamic Routing) |
| Acoustic Noise Level | 34.8 dB (Quiet Mode) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
