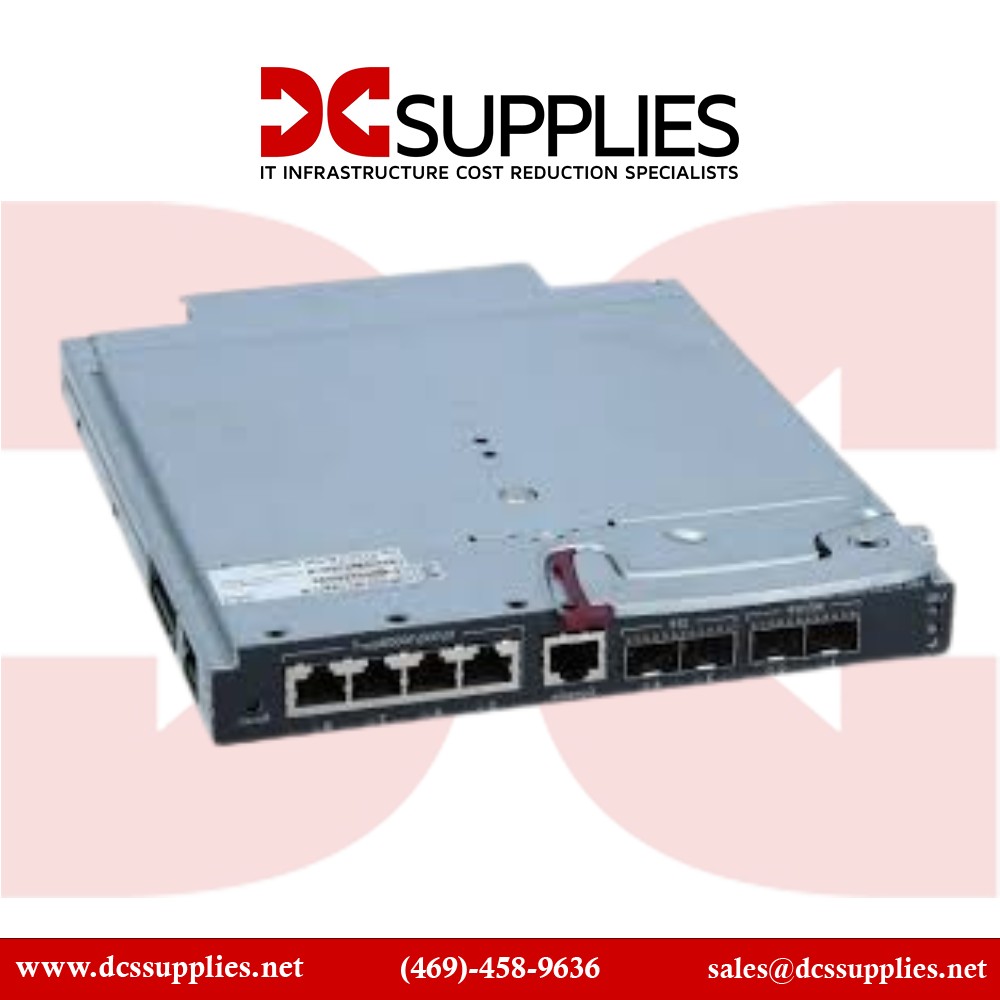

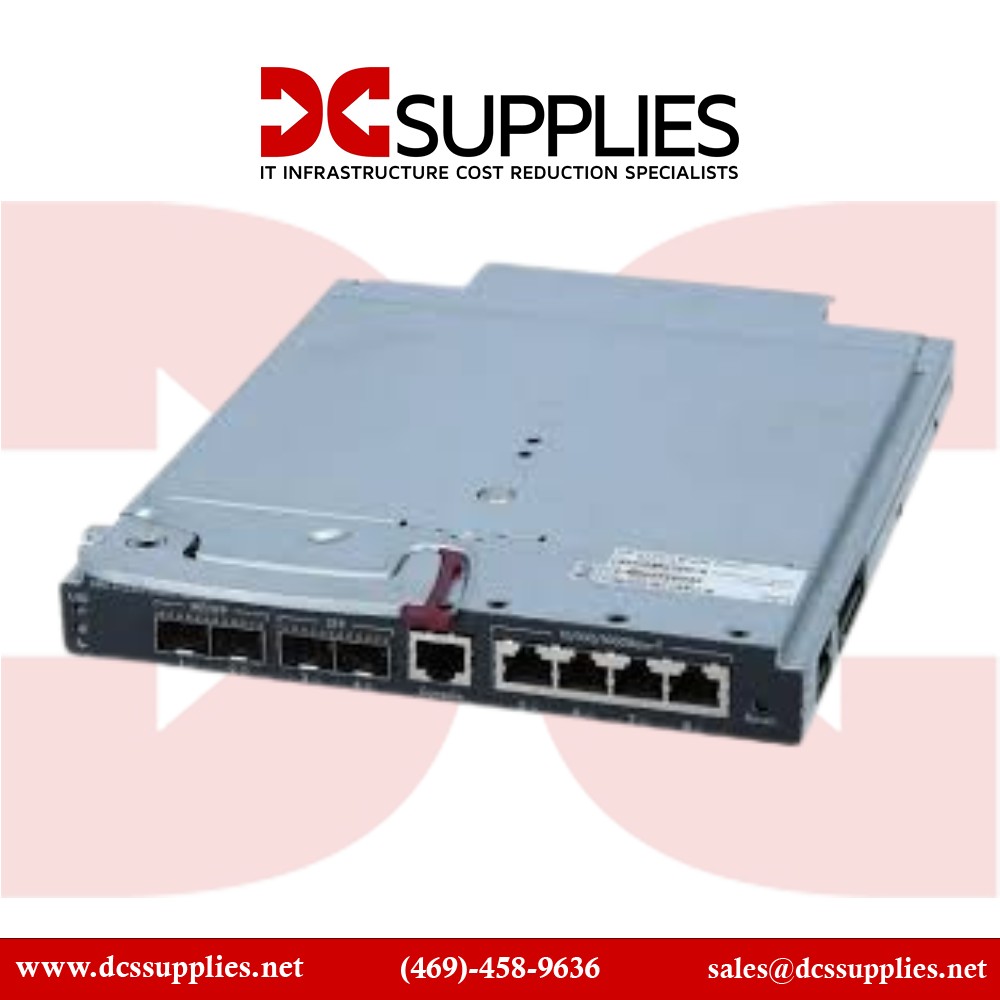

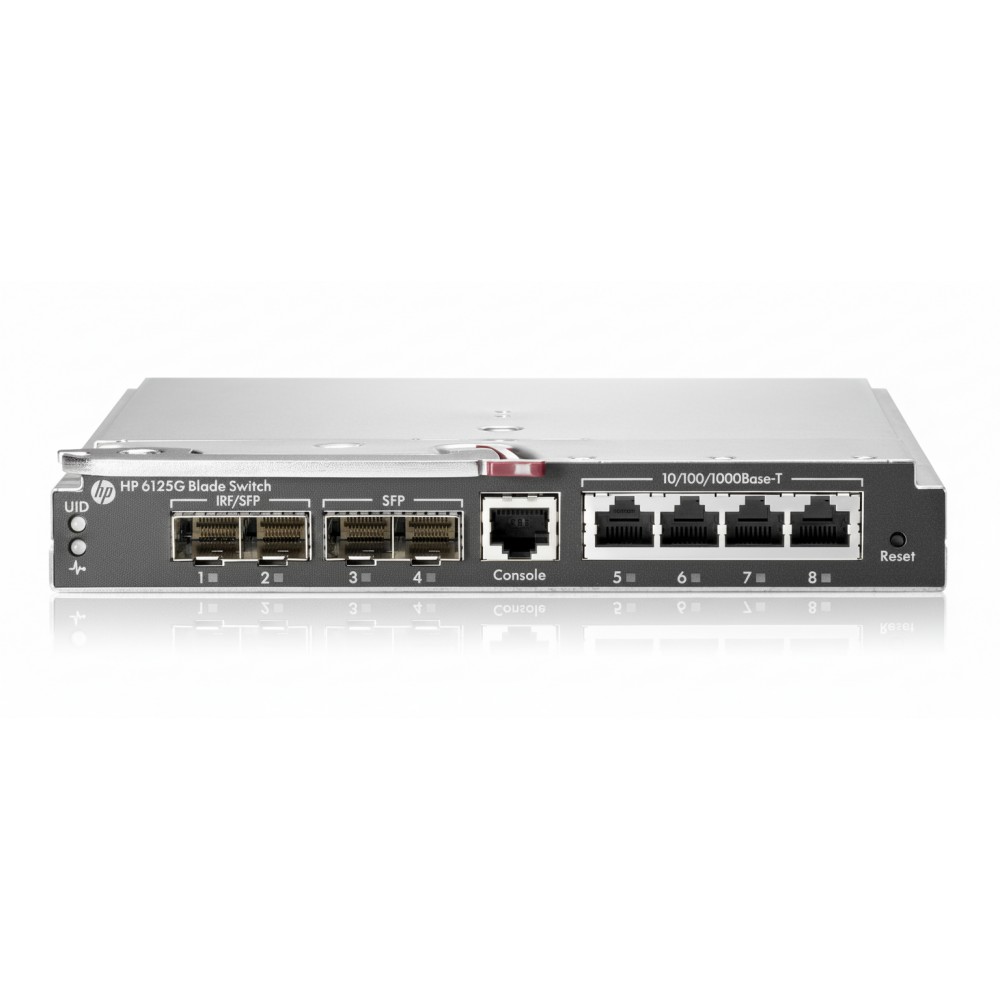

HPE 658247-B21 6125G Ethernet Blade Switch

New

In Stock

HPE 658247-B21 6125G Ethernet Blade Switch 4 x 10/100/1000 Ports 2 x Gigabit SFP
×




$74.90

  • Refurbished

Detailed Specifications

HPE 658247-B21

6125G Ethernet Blade Switch – 8‑Port Managed Blade Switch for HPE c‑Class Enclosures

The HPE 658247‑B21 6125G Ethernet Blade Switch is a fully managed, eight‑port blade switch built specifically for HPE c‑Class Blade System enclosures. Combining Gigabit access ports with flexible SFP/SFP+ uplinks, it offers robust Layer‑2 capabilities and edge routing for campus, data center, and enterprise backbone environments.

Features

As a plug‑in blade module, the 6125G integrates seamlessly into c‑Class chassis, delivering four copper RJ‑45 ports and four optical or DAC uplinks.

Advanced Options

It supports advanced switching and routing protocols—including VLANs, spanning tree, OSPF, BGP, VRRP, and multicast—making it ideal for consolidating server blades with top-of-rack infrastructure.

Product Key Features

  •  8 Managed Gigabit Ports: 4 x 10/100/1000 RJ‑45 + 4 x SFP/SFP+ uplinks

  •  Layer‑2 Switching: VLANs, ACLs, STP/RSTP/MSTP, sFlow, IGMP snooping

  •  Enterprise‑Grade Security: RADIUS/TACACS+, 802.1X, ACLs, SSH, HTTPS

  •  Blade Enclosure Module: Hot‑swappable in HPE c‑Class BladeSystem

  •  Routing Support: OSPF, RIP, BGP, VRRP, PIM, static IPv4/IPv6

  •  High Performance: 48 Gbps switching capacity, jumbo frames to 9,216 byte

Reliability & Performance

With a switching capacity of 48 Gbps and support for jumbo frames up to 9,220 bytes, this switch ensures low latency and high throughput. It features comprehensive QoS, sFlow, and ACL support. Advanced security methods such as 802.1X, RADIUS, TACACS+, SSH, HTTPS, and ACL enforcement further bolster network protection. Hot-swap blade design ensures minimal downtime and easy maintenance.

Key Features (Bullet List)

  • 4 x 10/100/1000BASE-T RJ‑45 access ports

  • 2 x 1 GbE SFP + 2 x 1/10 GbE SFP+ uplinks

  • Layer‑2 switching: VLANs, STP/RSTP/MSTP, IGMP snooping, sFlow

  • Advanced routing: OSPF, RIP v1/2, BGP, VRRP, PIM‑SM/DM, static IPv4/IPv6

  • Enterprise security: 802.1X, RADIUS, TACACS+, ACLs, SSH/HTTPS

  • Jumbo frame support up to 9,220 bytes

  • Hot-swappable blade module for HPE c-Class enclosures

SpecificationDetails
Model Number 658247‑B21 / 6125G
Product Type Blade Switch Module (c-Class)
Blade System Compatibility HPE c7000 / c3000 Enclosures
Copper Ports 4 x 10/100/1000BASE-T RJ‑45
SFP Ports 2 x 1 GbE SFP
SFP+ Ports 2 x 1/10 GbE SFP+
Switching Capacity 48 Gbps
Forwarding Rate ~35.7 Mpps
VLANs Supported Yes (IEEE 802.1Q)
Jumbo Frame Support Up to 9,216 bytes
Routing Protocols OSPF, RIP‑1/2, BGP, VRRP, PIM‑SM/DM, IPv4/IPv6 static
Security Features 802.1X, RADIUS, TACACS+, ACLs, SSH, HTTPS
Management Interfaces CLI, Web GUI, SNMP v1/2/3
Environmental Conditions 0–40 °C (32–104 °F), 5–95 % non-condensing humidity
Form Factor Plug-in blade module
Hot‑Swappable Yes
Weight ~6.6 lb (3 kg)
Certifications RoHS, FCC, CE
