Detailed Specifications

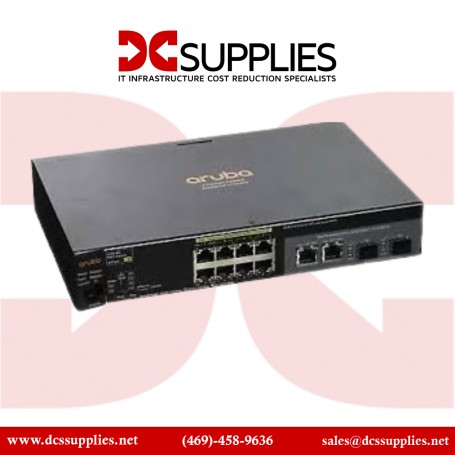

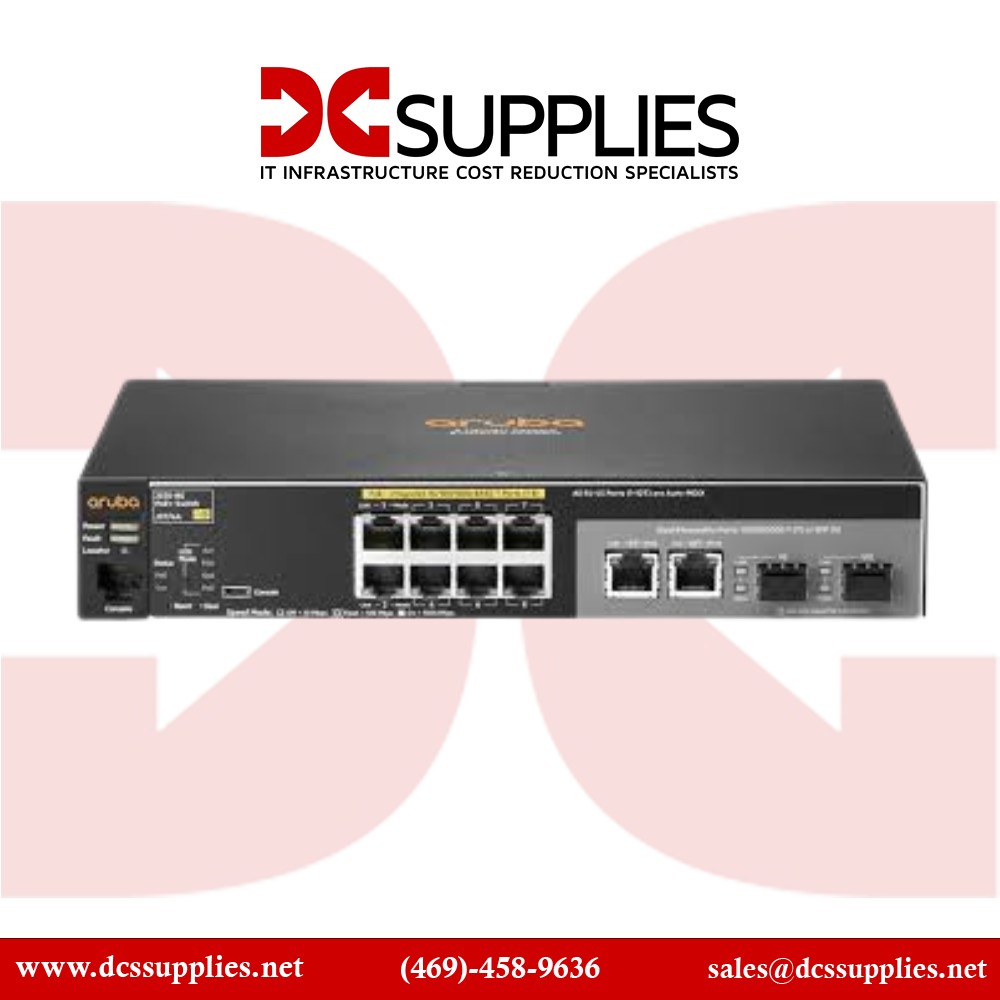

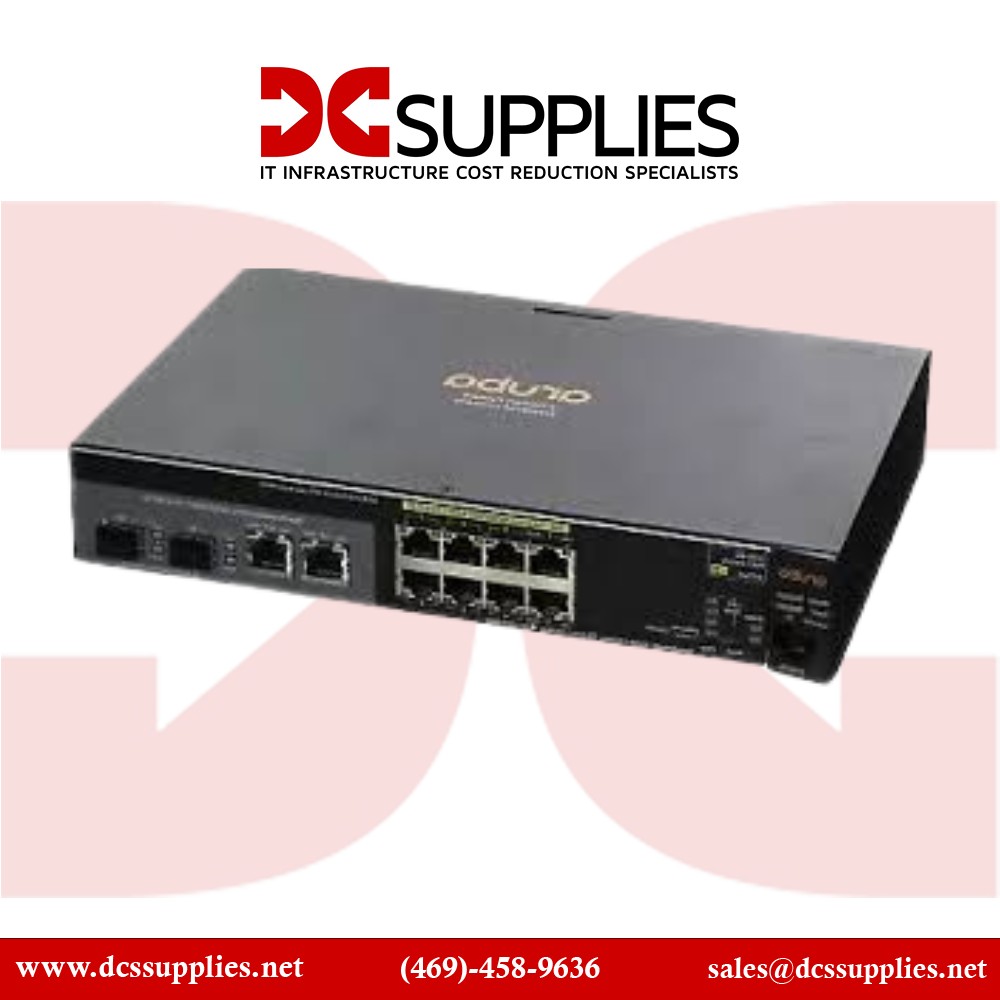

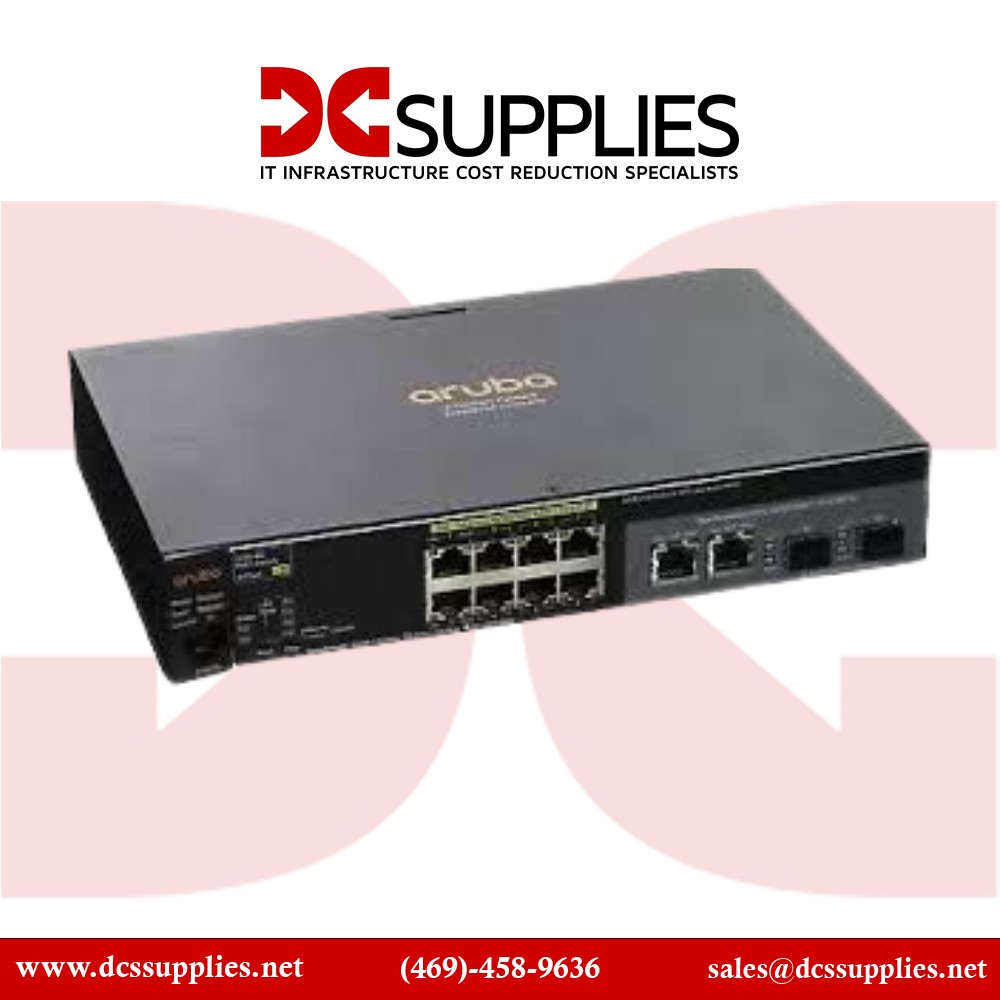

HPE J9774A Aruba 2530 8G PoE+ Managed Switch P/N
Overview :
The HPE J9774A Aruba 2530 Switch Series combines security, reliability, and ease of deployment, making it ideal for enterprise edge, branch office, and SMB environments. Offering Layer 2 capabilities with optional Power over Ethernet Plus (PoE+), these switches ensure enhanced access security, traffic prioritization, and support for IPv6, catering to modern networking needs. Managed through intuitive tools like ClearPass Policy Manager and AirWave, or via cloud-based Central, the Aruba 2530 Series provides a seamless wired and wireless user experience.
Key Features and Benefits:
- Security and Reliability: Provides robust security features and reliability suitable for various deployment scenarios.
- Ease of Management: Managed through ClearPass Policy Manager, AirWave, or Aruba Central for unified management.
- Traffic Prioritization: Supports Quality of Service (QoS) for optimizing network performance.
- Energy Efficiency: Includes Energy Efficient Ethernet for power savings without compromising performance.
- IPv6 Support: Ensures compatibility and readiness for future network requirements.
- PoE+ Capability: Supports Power over Ethernet Plus (PoE+) to power devices like IP phones, cameras, and wireless access points directly from the switch.
Specifications:
| Feature | Details |
|---|
| Model |
J9774A |
| Port Type |
8 x 10/100/1000 PoE+ RJ-45 |
| Power Over Ethernet (PoE) |
Yes (PoE+) |
| Switching Capacity |
20 Gbps |
| Power Consumption |
86 W (maximum) |
| Heat Dissipation |
65 BTU/hr (68.58 kJ/hr) |
| PoE Capability |
67 W |
| Throughput |
Up to 14.8 Mpps |
| Quality of Service (QoS) |
Yes |
| Input Voltage |
100 - 127 / 200 - 240 VAC, rated |
| Rack Mountable |
Yes |
| Fanless |
No |
| Minimum Dimensions (H x W x D) |
25.4 x 15.95 x 4.45 cm |
