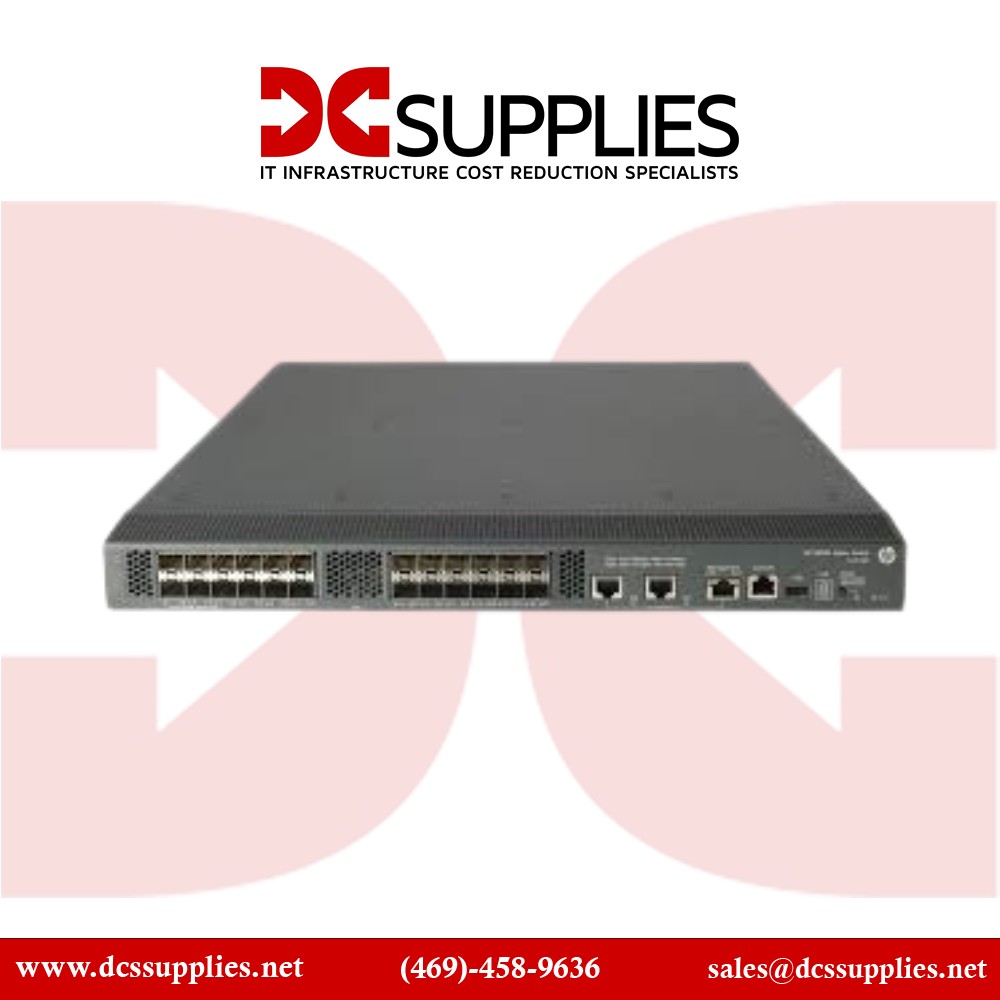

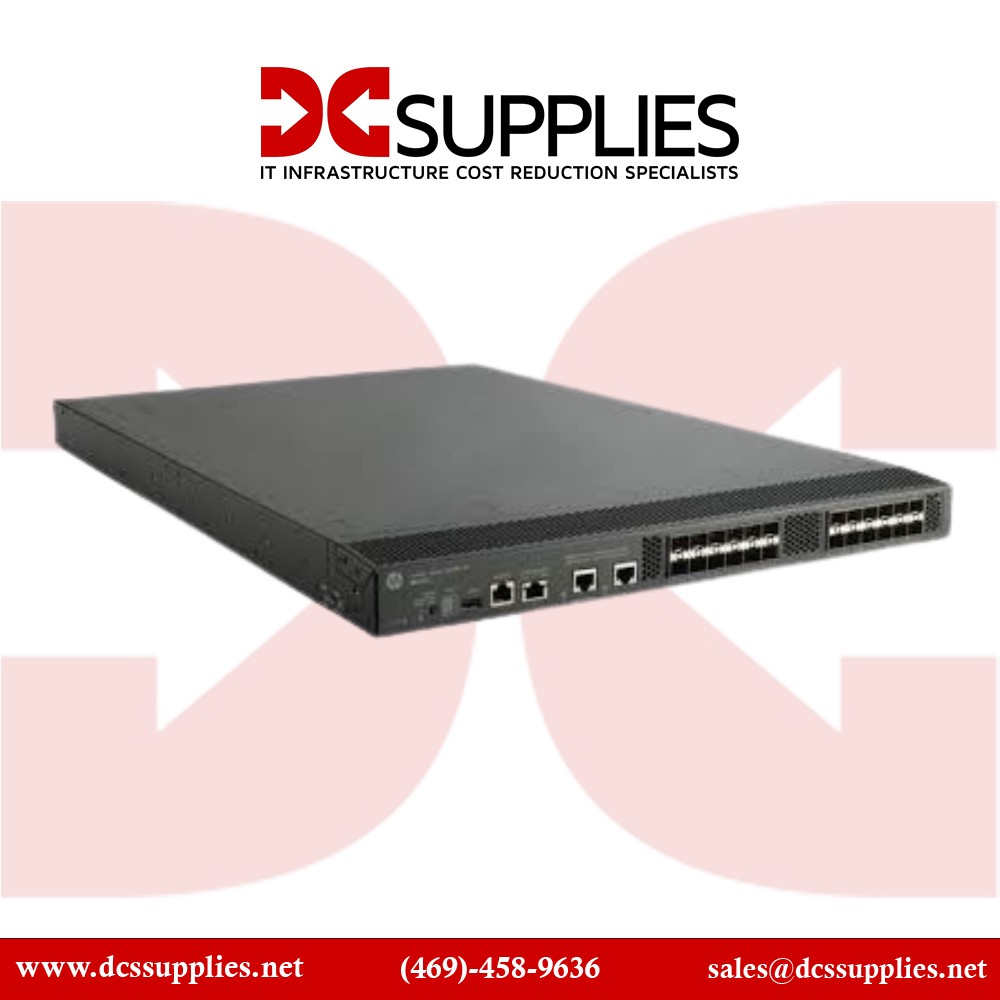

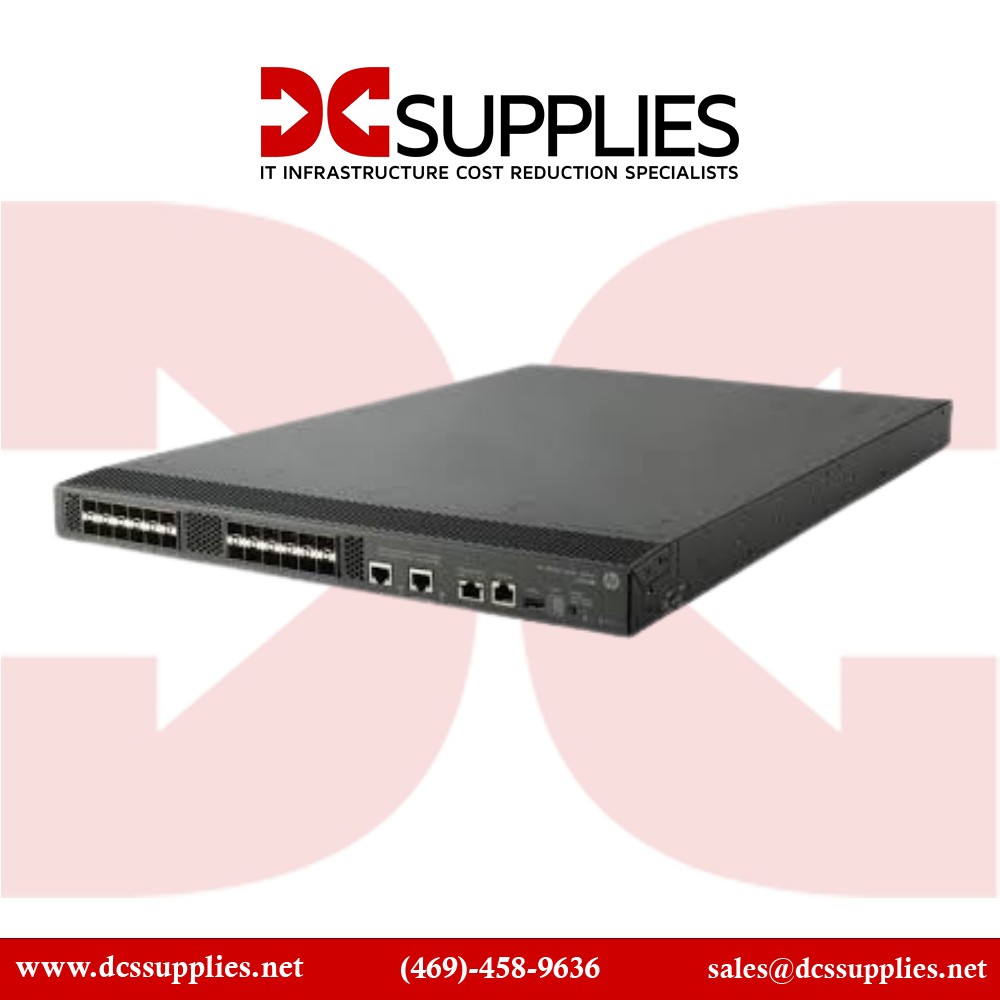

HPE 5820AF-24XG Switch - 2 Network, 24 Expansion Slot - Manageable View larger

HPE JG219B 24XG Switch - 2 Network, 24 Expansion Slot - Manageable



HPE JG219B 24XG Switch - 2 Network, 24 Expansion Slot - Manageable


HPE 5820 switch, dc supplies, Gigabit Ethernet Switch, HPE JG219B, JG219B, HPE 5820AF-24XG Switch, HPE 5820AF-24XG, JG219B manual, JG219B datasheet, HPE JG219B 24XG, JG219B 24XG Switch, HPE 24XG Switch, hpe 24 Expansion Slot

Detailed Specifications

HPE JG219B 5820AF-24XG Switch - 2 Network, 24 Expansion Slot - Manageable

Overview :

The HP JG219B 5820 Switch Series supports advanced features that deliver a unique combination of unmatched 10 Gigabit Ethernet; high- availability architecture; full Layer 2/3 dual-stack IPv4/IPv6; and line-rate, low-latency performance on all ports. Extensible embedded application capabilities enable these switches to integrate services into the network, consolidating devices and appliances to simplify deployment and reduce power consumption and rack space. Extremely versatile, the switches can be used in high-performance, high-density building or department cores as part of a consolidated network; for data center top-of-rack server access; or as high-performance Layer 3, 10GbE aggregation switches in campus and data center networks.

Specification :

brand_ice HP (JG219B)
Rack mounting Yes
Stackable Yes
Form factor 1U
Colour of product Grey
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Basic switching RJ-45 Ethernet ports quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 24
Console port RJ-45
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support Yes
Port mirroring Yes
Full duplex Yes
Routing entries 12000
Auto MDI/MDI-X Yes
VLAN support Yes
MAC address table 32000 entries
Switching capacity 484 Gbit/s
Throughput 360 Mpps
Jumbo frames support Yes
Packet buffer memory 2 MB
DHCP features DHCP server, DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Memory type SDRAM
Internal memory 2048 MB
Flash memory 512 MB
Power supply included No
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 650 W
Power over Ethernet (PoE) No
Heat dissipation 607 BTU/h
Width 659.9 mm
Depth 439.9 mm
Height 43.7 mm
Weight 10 kg
