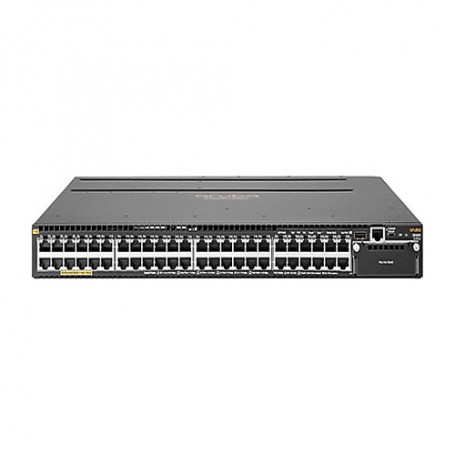

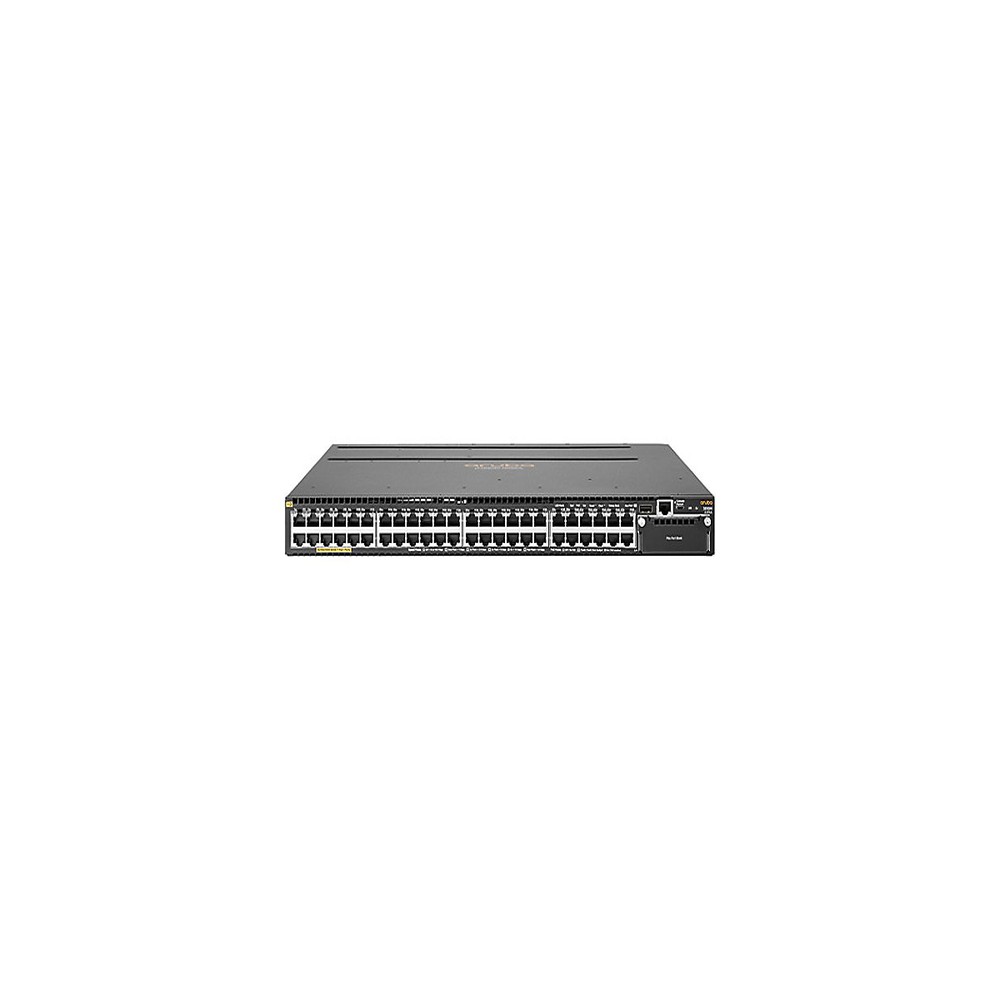

HPE Aruba 3810M 48G PoE+ 4SFP+ 680W - switch - 48 ports - managed - rack-mountable View larger

HPE Aruba 3810M 48G PoE+ 4SFP+ 680W - switch - 48 ports - managed - rack-mountable

JL428A#ABA

New

In Stock

HPE Aruba 3810M 48G PoE+ 4SFP+ 680W - switch - 48 ports - managed - rack-mountable

×




HP, HPE, HPE Aruba 3810M, HPE Aruba 3810M 48G, HPE Aruba 3810M 48 ports switch, HPE Aruba 3810M 48G switch, HPE Aruba 3810M 48 ports, HPE Aruba 3810M switch, HP JL428A ABA, HPE JL428A ABA, JL428A ABA, JL428A

$8,156.00

Detailed Specifications

HPE Aruba 3810M 48G PoE+ 4SFP+ 680W - switch - 48 ports - managed - rack-mountable

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high-speed 802.11ac devices, this advanced Layer 3 switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity. The Aruba 3810 is easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central.

Technical Specifications

Main Features

  • Switch
  • L3
  • managed
  • 48 x 10/100/1000 (PoE+)
  • rack-mountable
  • PoE+
  • DC power
  • Capacity

  • IPv4 routing table entries
  • 10000
  • IPv6 routing table entries
  • 5000
  • Dimensions & Weight

  • 17 in
  • 1.7 in
  • 13.62 lbs
  • 17.4 in
  • Environmental Parameters

  • 15 - 95% (non-condensing)
  • 15 - 90% (non-condensing)
  • 113 °F
  • 158 °F
  • 32 °F
  • -40 °F
  • Environmental Standards

  • Yes
  • Flash Memory

  • 1 GB
  • Header

  • Aruba
  • PC
  • United States
  • English
  • Aruba
  • 3810M 48G PoE+ 4SFP+ 680W
  • 1
  • Aruba
  • Interface Provided

  • Management
  • 1
  • Serial (console)
  • PoE+
  • RJ-45
  • 48
  • 1000Base-T
  • Type B
  • Micro-USB
  • Management
  • Miscellaneous

  • RADIUS, Secure Shell v.2 (SSH2), TACACS+
  • Black
  • CAN/CSA C22.2 No. 60950, CISPR 22 Class A, CSA 22.2 No. 60950-1, EN 60825, EN 60950, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2:2006+A1:2009+A2:2009, EN 62479:2010, EN55022, EN55022:2010, EN55024:2010, EN61000-3-3:2008, FCC Class A certified, IEC 60825, IEC 60825-1:2007, IEC 60950, IEC 60950-1:2005 Second Edition, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, Laser Class 1, UL 60950, UL 60950-1, VCCI Class A
  • SSL
  • 1
  • Fan tray
  • Included
  • Networking

  • Layer 3
  • IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
  • Access Control List (ACL) support, ARP support, Class of Service (CoS), Device Link Detection Protocol (DLDP) support, Dynamic VLAN Support (GVRP), Internet Control Message Protocol (ICMP), Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), OpenFlow support, Per-VLAN Spanning Tree (PVST), Quality of Service (QoS), sFlow v5, Spanning Tree Protocol (STP) support, Type of Service (ToS), Uni-Directional Link Detection (UDLD)
  • Rack-mountable
  • Yes
  • 64K entries
  • Yes
  • 48
  • PoE+
  • CLI, HTTP, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, XRMON
  • BGP, Bidirectional Forwarding Detection (BFD), MLD, OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing, VRRP
  • Stackable
  • Network hubs and switches
  • Gigabit Ethernet
  • Switch
  • Performance

  • Latency (10 Gbps)
  • 1.8 µs
  • Latency (1000Base-T)
  • 2.8 µs
  • Latency (40 Gbps)
  • 1.5 µs
  • Routing/switching capacity
  • 320 Gbps
  • Switching fabric bandwidth
  • 338 Gbps
  • Throughput (64-byte packet size)
  • Up to 190.5 Mpps
  • Ports

  • 48
  • 10/100/1000 (PoE+)
  • Power Device

  • 80 PLUS Silver
  • Hot-plug
  • 1
  • 2
  • DC 54 V
  • 680 Watt
  • Yes
  • 1+1 (with optional power supply)
  • Internal power supply
  • Processor

  • 2
  • RAM

  • 6 GB
  • DDR3 SDRAM
  • Slot Provided

  • 1
  • 1
  • Expansion slot
  • Stacking Module slot
