Detailed Specifications

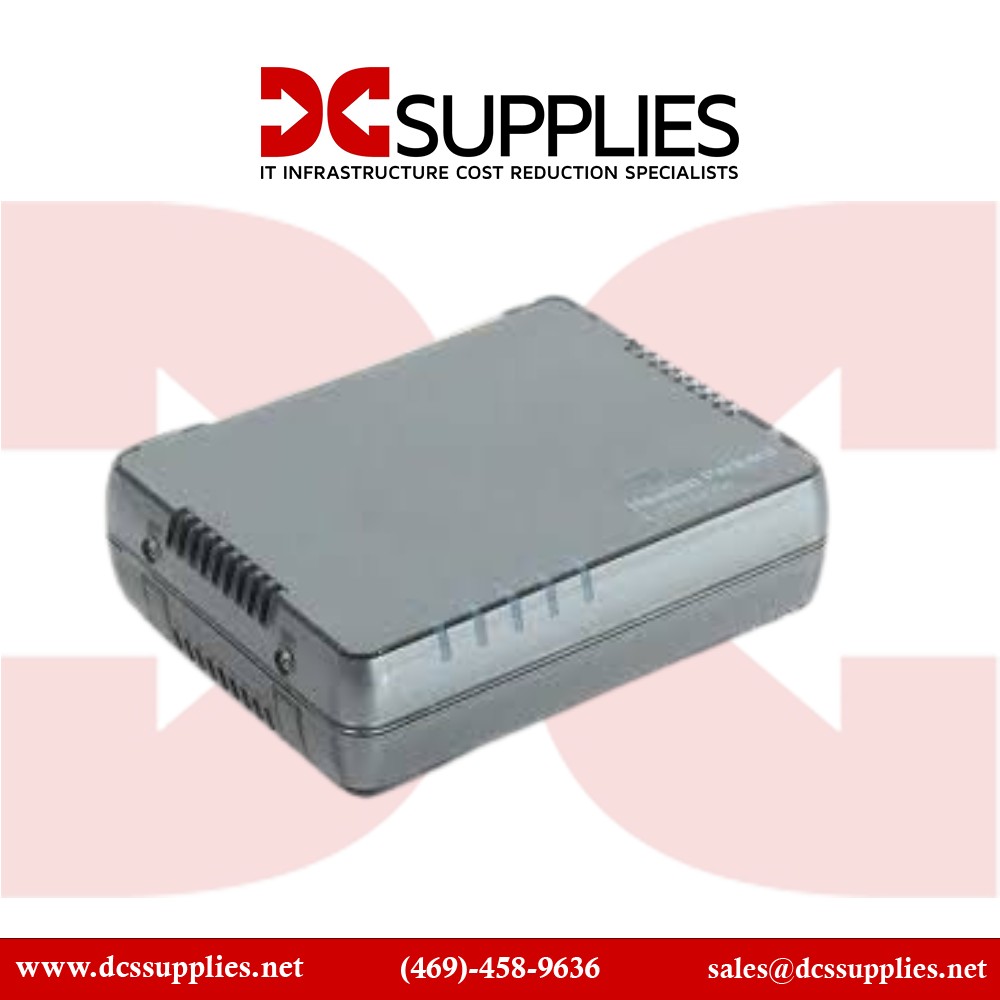

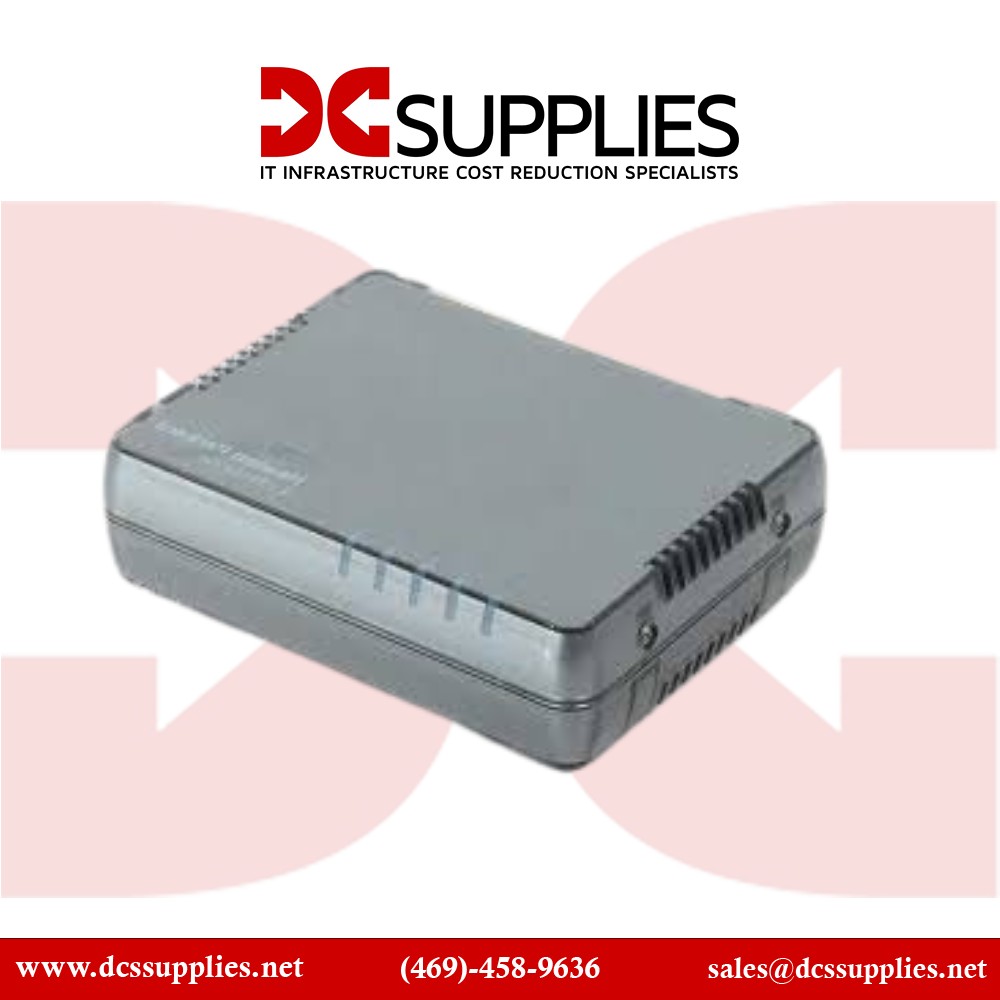

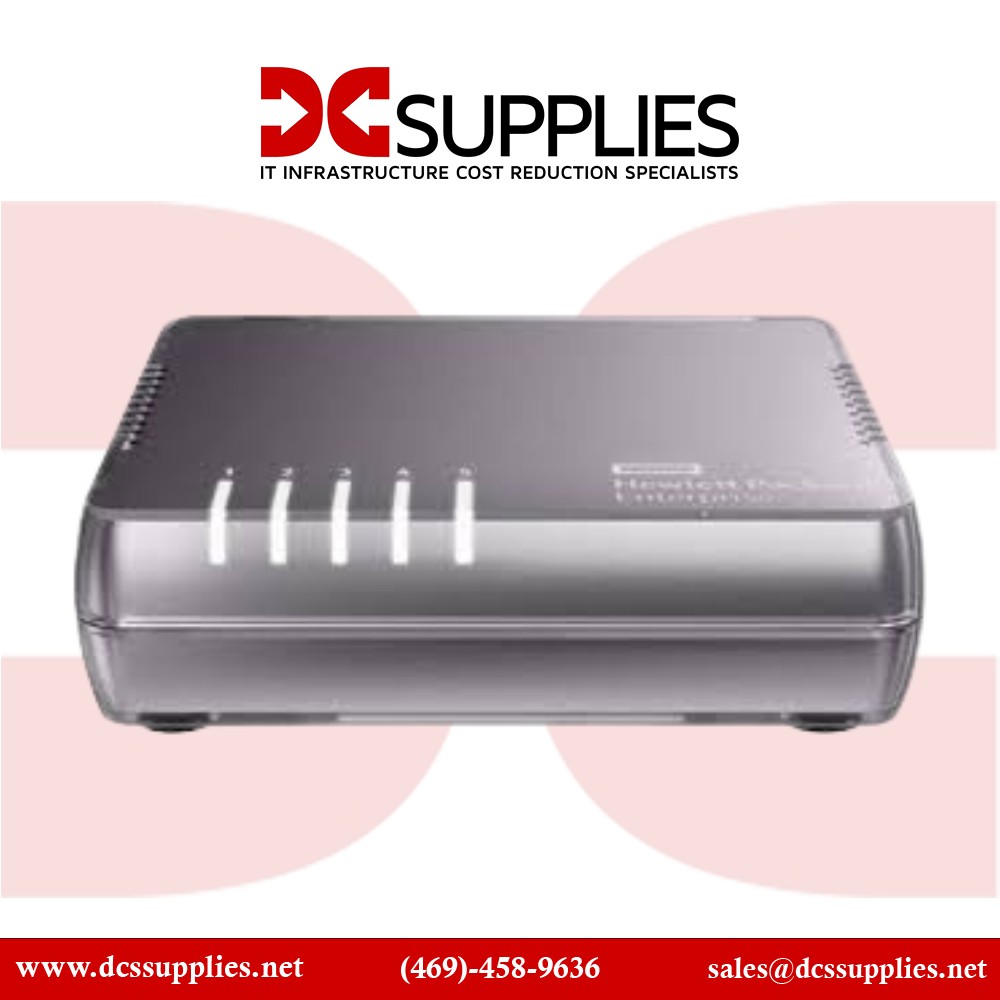

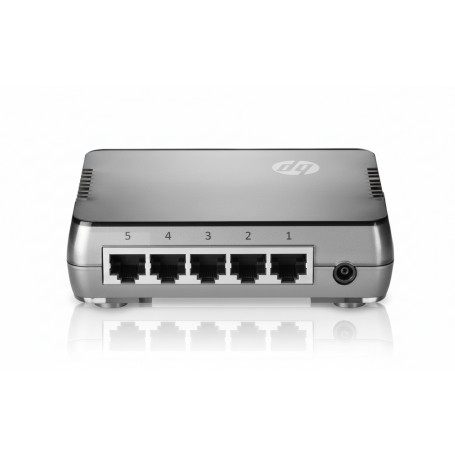

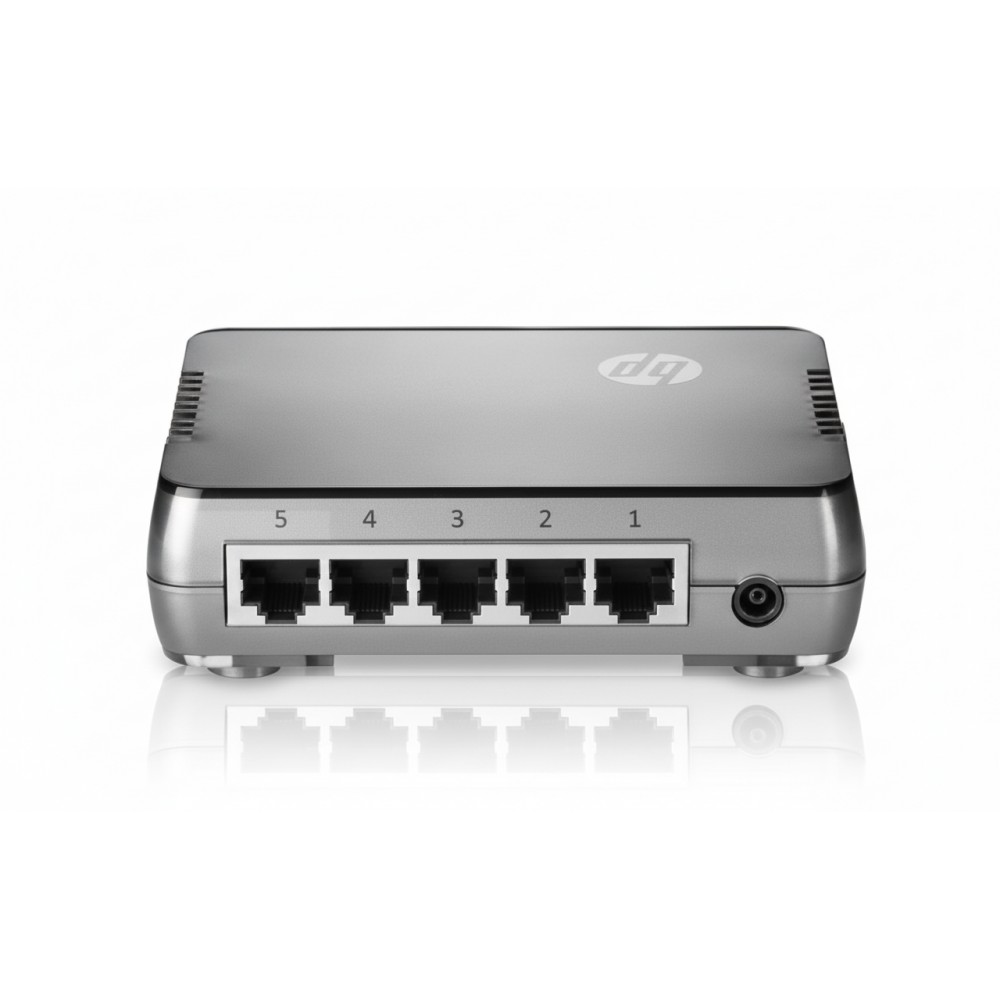

HPE JH407A OfficeConnect 1405 5G v3 Switch
Overview
The HPE JH407A is an unmanaged, plug-and-play 5-port Gigabit Ethernet switch designed with small offices and edge deployments in mind. It includes 5 × 10/100/1000 Mbps RJ-45 ports with auto-negotiation and auto-MDIX, enabling quick installation without configuration or network-management overhead. Its compact and fanless design supports quiet operation, making it suitable for open office spaces, small wiring closets or remote rack units. With a throughput of up to 10 Gbps and packet buffering of 1 Mb, this unit handles everyday switching needs×such as connecting workstations, APs and IP phones×while consuming minimal power (approximately 3 W). The device integrates easily into existing network fabric, requiring no changes to routing or advanced features, and operates reliably under standard commercial conditions from 0 °C to 40 °C.
Key Features
5 autosensing RJ-45 10/100/1000 Mbps ports for Gigabit connectivity.
Fan-free, compact desktop design enables quiet and flexible placement.
Plug-and-play unmanaged operation with no configuration required.
Energy Efficient Ethernet support and idle-port power-down for low power use.
Throughput up to 7.4 Mpps and switching capacity of 10 Gbps.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JH407A |
| Product Type | Unmanaged Gigabit Switch - 5-port |
| Number of Ports | 5 × RJ-45 10/100/1000 Mbps |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | Up to 7.4 Mpps |
| Packet Buffer Size | 1 Mb |
| Latency | < 3 µs at 100 Mb/s; < 2.6 µs at 1 Gb/s |
| Dimensions (H×W×D) | 1.4 in × 4.5 in × 3.6 in |
| Weight | 0.4 lb |
| Power Consumption (Max) | ~3 W |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 15 %-95 % non-condensing |
| Auto-MDIX & Auto-Negotiation | Yes |
| Jumbo Frame Support | Up to 9,216 bytes |
| Warranty | 3-year (as per series) |
