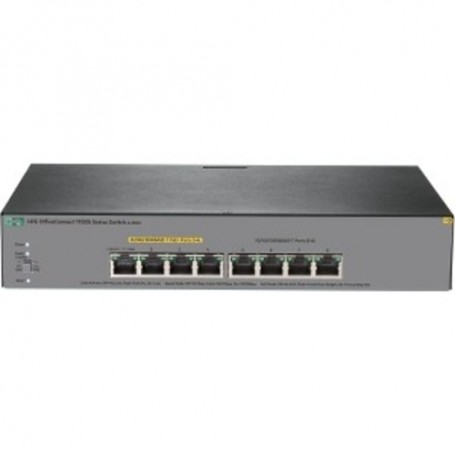

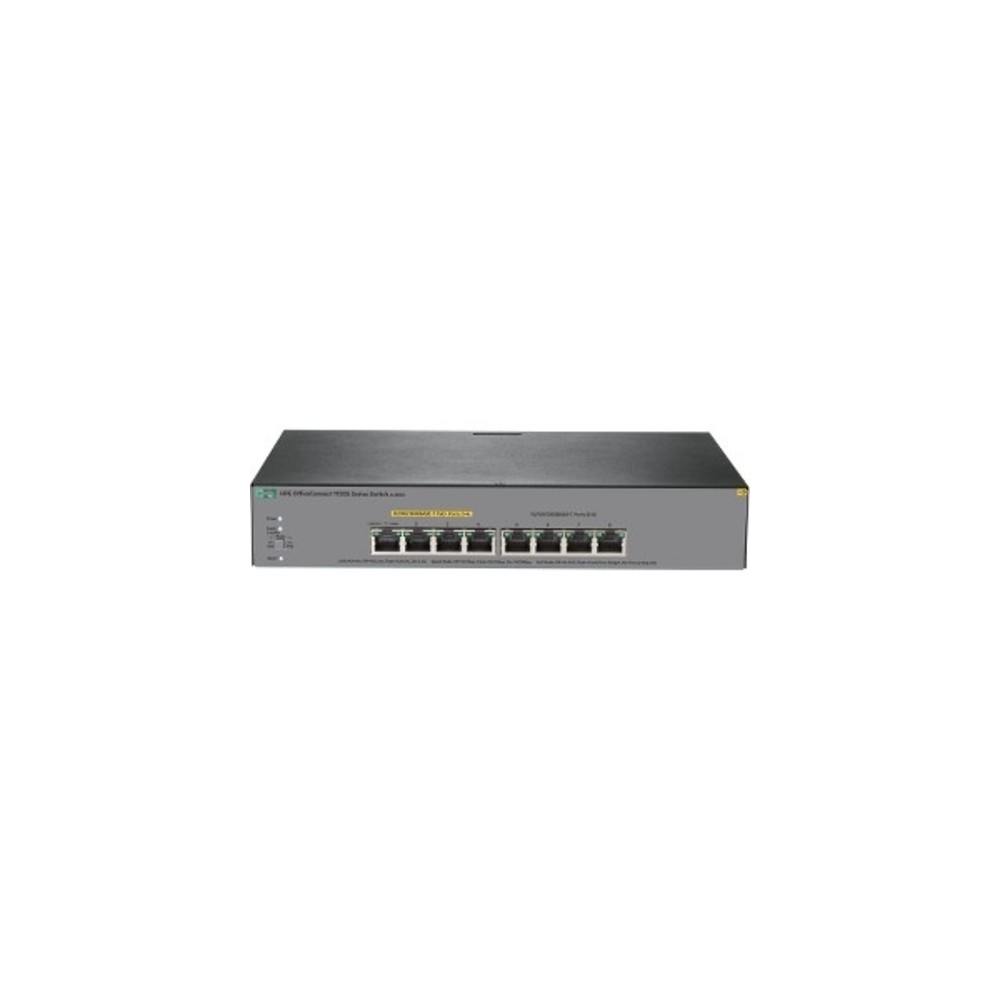

HPE OfficeConnect 1920S 8G PPoE+ 65W - switch - 8 ports - managed - rack-mo View larger

HPE ARUBA - JL383AABA - HPE 1920S 8G PPoE+ 65W Switch

JL383A#ABA

New

In Stock

HPE ARUBA - JL383A#ABA - HPE 1920S 8G PPoE+ 65W Switch

×




HP, HPE Aruba, HP Aruba, HPE Switch, HP Switching, HP networking swtich, HPE Switching, HPE OfficeConnect 1920S 8G, HPE OfficeConnect 1920S 8 ports, JL383A, HP JL383A, HPE JL383A, JL383A price, JL383A acess, JL383A review, JL383A manual, JL383A switch, JL383A HPE, JL383A PPOE

$479.00

Detailed Specifications

HPE OfficeConnect 1920S 8-Port Gig Smart Switch-8xGE | PoE on 4 Ports (65W) | fanless (JL383A#ABA)

Overview JL383A#ABA:

The HPE JL383A#ABA OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, a choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.

Product Features JL383A#ABA:

  • Simplifies Network Deployment and Management for Small Organizations
    The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.
    The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.
    These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.
  • Keeps Your Business Protected with Enhanced Security
    The HPE JL383A#ABA OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
    Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
    Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).
  • Delivers Better Performance at a Lower Total Cost of Ownership
    The HPE JL383A#ABA OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.
    The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
    Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.
    The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and business hours thereafter.

Technical Specifications JL383A#ABA:

Main Features JL383A#ABA

  • Switch
  • L3
  • managed
  • 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000
  • desktop
  • rack-mountable
  • wall-mountable
  • PoE+ (65 W)
  • Capacity JL383A#ABA

  • Routing table entries
  • 32
  • Dimensions & Weight

  • 10 in
  • 6.3 in
  • 1.7 in
  • 32.1 oz
  • Environmental Parameters

  • 32 °F
  • 104 °F
  • 15 - 95% (40 °C)
  • -40 °F
  • 158 °F
  • 15 - 95% (60 °C)
  • Flash Memory JL383A#ABA

  • 64 MB
  • Header JL383A#ABA

  • PC
  • English
  • United States
  • Aruba Instant AP
  • 1
  • HPE OfficeConnect
  • 1920S 8G PPoE+ 65W
  • HPE
  • Interface Provided JL383A#ABA

  • 4
  • PoE+
  • 1000Base-T
  • RJ-45
  • Miscellaneous JL383A#ABA

  • CAN/CSA C22.2 No. 60950-1, CISPR 24, CISPR 32, CNS 13438, EN 55032:2015, EN 60825-1, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, ICES-003 issue 5 Class A, IEC 60950-1, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950-1, VCCI Class A
  • RADIUS
  • 112.36 year(s)
  • 1
  • Gray
  • Performance JL383A#ABA

  • Latency (1 Gbps)
  • 2.3 µs
  • Latency (100 Mbps)
  • 7 µs
  • Routing/switching capacity
  • 16 Gbps
  • Throughput
  • Up to 11.9 Mpps
  • Ports (2nd)

  • 4
  • 10/100/1000
  • Ports

  • 4
  • 10/100/1000 (PoE+)
  • Power Device

  • 50/60 Hz
  • AC 120/230 V
  • Processor

  • Cortex-A9
  • 1
  • ARM
  • 400 MHz
  • RAM

  • 256 MB
  • SDRAM
  • Service

  • Limited warranty
  • Advance parts replacement
  • Shipment
  • Lifetime
  • Technical support
  • Phone consulting
  • Service & Support

  • Limited lifetime warranty
  • Service & Support Details

  • Next business day
  • Networking JL383A#ABA

  • Switch (JL383A#ABA)
  • HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3
  • IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x
  • 8
  • 1.5MB packet buffer, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP client, DHCP relay, Fanless, Flow control, Full duplex mode, Half duplex mode, IGMP snooping, IPv6 support, Link Aggregation, LLDP-MED, Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP), Port isolation, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support
  • IGMP, Static IPv4 routing
  • 8000 entries
  • Network hubs and switches
  • PoE+
  • Layer 3
  • Yes
  • Desktop, Rack-mountable, Wall-mountable
  • 9216 bytes
  • Gigabit Ethernet
  • 65 W
