Detailed Specifications

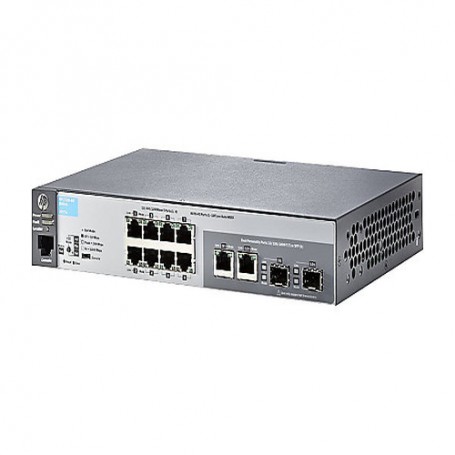

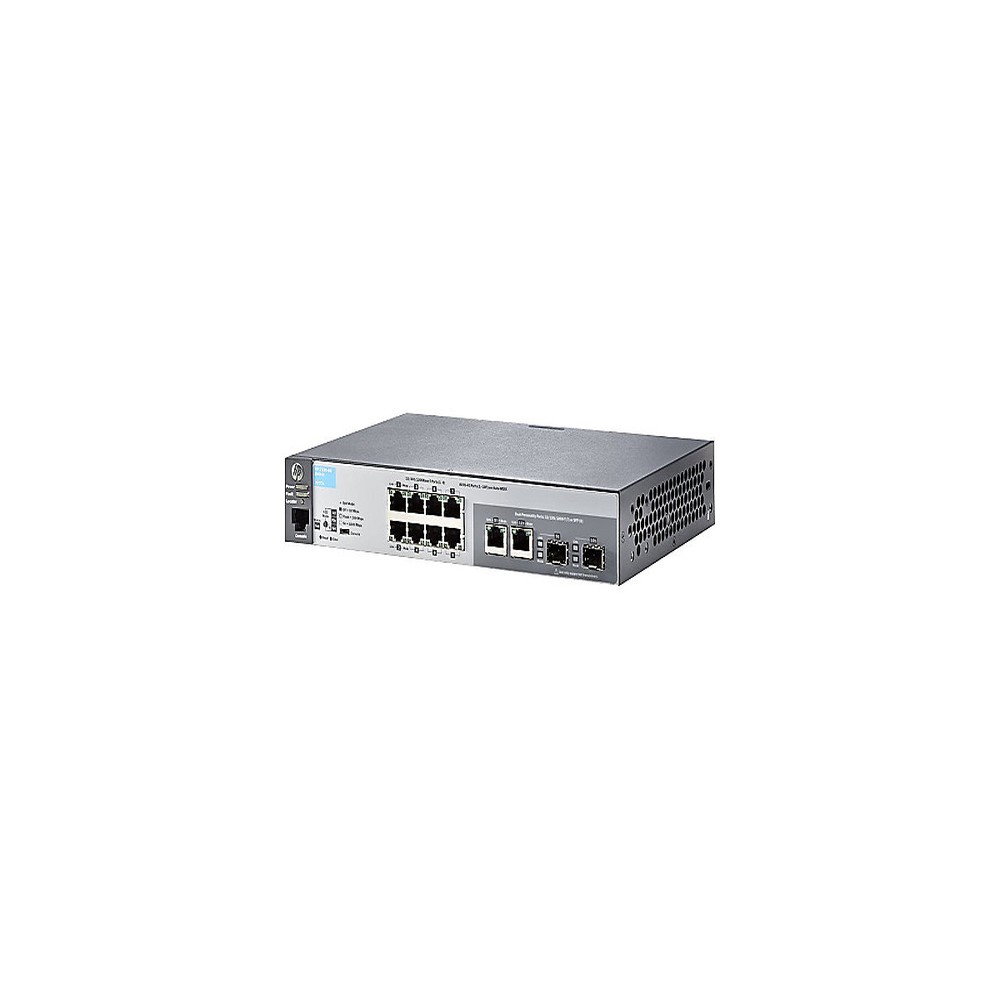

HPE J9777A Aruba 2530-8G Switch
Overview
The HPE J9777A (Aruba 2530-8G) is a compact, fully managed edge switch designed for IT teams operating small to midsize enterprise or branch-office networks. With eight 10/100/1000 Mbps RJ-45 access ports and two additional dual-personality ports that can serve either as RJ-45 or SFP fibre uplinks, it provides flexibility for mixed copper/fibre connectivity. The switch supports Layer-2 features such as VLANs, link-aggregation (LACP), ACLs and IPv6 host support, enabling network segmentation and access control in a single-rack environment. Its rack-mountable 1U form factor and low power consumption make it suitable for wiring closets, branch racks or edge-locations where space and heat are constrained. Remote management is provided via web GUI, CLI and SNMP, offering integration into existing IT management frameworks.
Key Features
Eight RJ-45 10/100/1000 Mbps access ports.
Two dual-personality ports for either RJ-45 or SFP fibre uplink.
Switching capacity of 20 Gbps for non-blocking throughput.
Compact 1 U chassis, dimensions ~10 in × 6.3 in × 1.75 in and approx 2.0 lbs.
Full Layer-2 switching with ACLs, dynamic VLANs and IPv6 host support.
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | J9777A |
| Product Type | Managed Gigabit Switch - 8-port (Aruba 2530-8G) |
| RJ-45 Access Ports | 8 × 10/100/1000 Mbps |
| Dual-Personality Uplink Ports | 2 × ports, each RJ-45 10/100/1000 or SFP fibre |
| Switching Capacity | 20 Gbps |
| MAC Address Table Size | 16,000 entries |
| Dimensions (W × D × H) | ~10.0 in × 6.3 in × 1.75 in |
| Weight | ~2.0 lbs |
| Idle Power Consumption | ~13.6 W |
| Maximum Power Rating | ~18.6 W |
| Operating Temperature | 0 °C to 45 °C |
| Humidity Range (Operating) | 15% to 95% @ 40 °C, non-condensing |
| Mounting Options | 19″ rack-mountable, wall-mount or desktop |
| Management Interfaces | Web GUI, CLI, SNMPv1/v2c/v3, dual-flash images |
| Warranty | Limited lifetime hardware replacement |
