Detailed Specifications

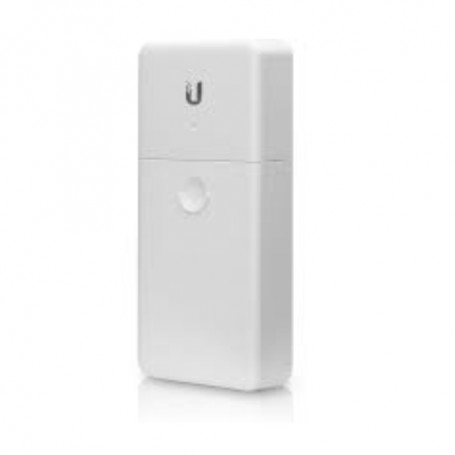

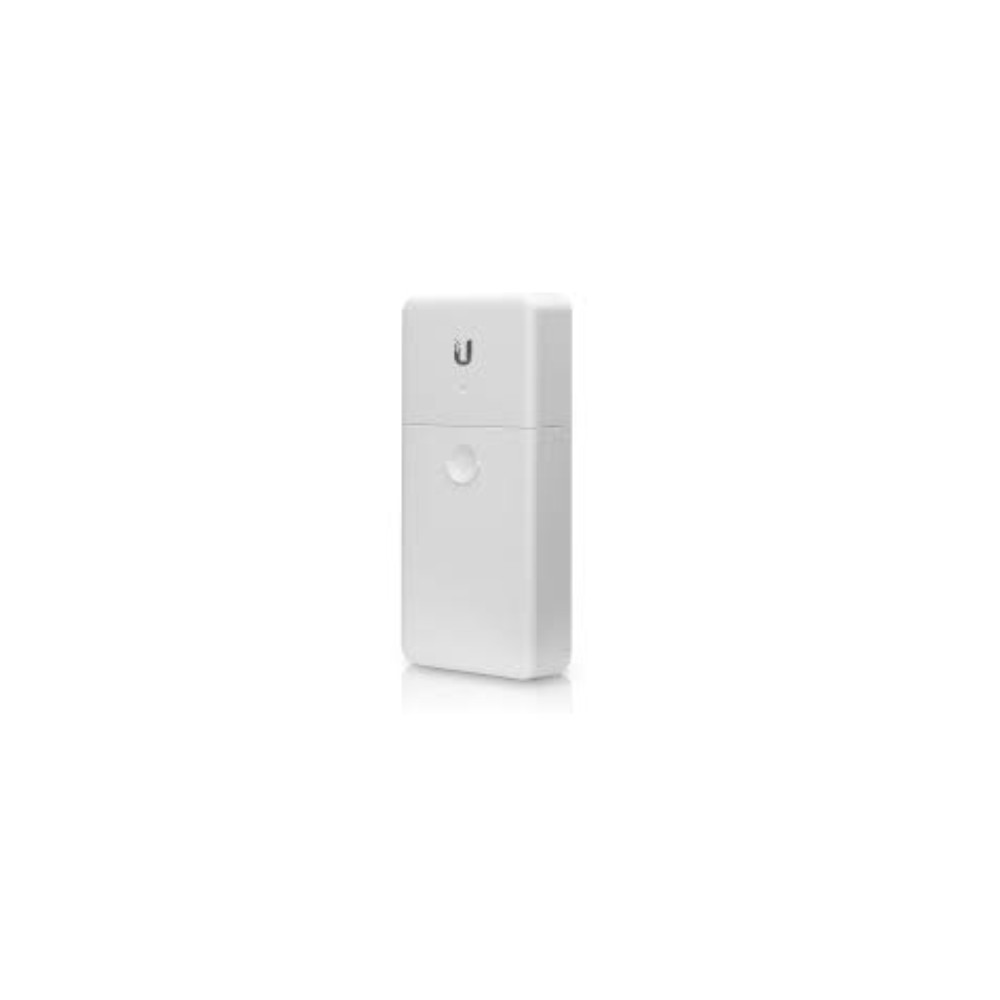

Ubiquiti N-SW Outdoor PoE Passthrough Switch
Overview
The Ubiquiti N-SW is an unmanaged outdoor Ethernet switch used by network engineers to add four Gigabit RJ45 ports with passive PoE passthrough. It accepts 24 V passive PoE in and provides power to up to three downstream devices while forwarding data. With a non-blocking 4 Gbps line rate and weather-resistant enclosure, it's suited for outdoor edge deployments. It fits sites such as surveillance, wireless AP aggregation, and simple network expansion without software management.
Key Features
Outdoor weather-resistant white enclosure
4 × Gigabit RJ45 Ethernet ports
Passive 24 V PoE input and passthrough
4 Gbps total non-blocking throughput
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | N-SW |
| Product Type | Outdoor PoE Passthrough Switch |
| Ethernet Ports | 4 × 10/100/1000 Mbps RJ45 |
| PoE Method | Passive 24 V, 2-pair PoE-in/out |
| PoE-Out Power per Port | Up to 24 W (24 V, 1 A) |
| Total PoE Budget | Up to 30 W across 3 ports |
| Total Non-Blocking Line Rate | 4 Gbps |
| Typical Power Consumption | 1.5 W |
| Operating Temperature | -30 °C to +70 °C |
| Relative Humidity | 5 % to 95 % non-condensing |
| Weight | ~269 g |
| Dimensions (L×W×H) | ~196 × 93.5 × 32.4 mm |
