Detailed Specifications

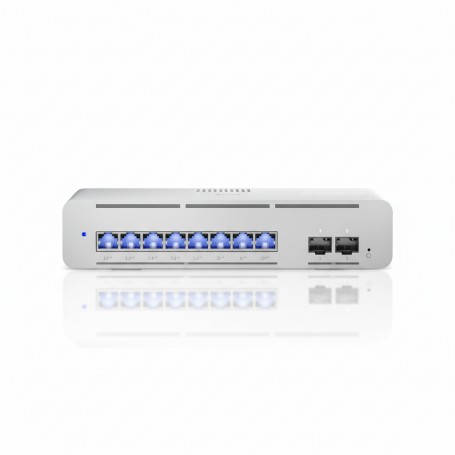

Ubiquiti USW-Pro-XG-8-PoE 10G PoELayer 3 Switch
Overview
The Ubiquiti UniFi Switch Pro XG 10 PoE USW-Pro-XG-8-PoE is a managed Layer 3 Ethernet switch with 10-gigabit connectivity and robust PoE power delivery for powering network devices without separate injectors. It includes eight 10 GbE RJ45 PoE++ ports and two 10 GbE SFP+ uplinks for high-capacity data transport. Designed for busy networks, it supports VLANs, static and inter-VLAN routing, and local DHCP services for flexible traffic segregation. The compact, desktop or wall-mountable form factor suits wiring closets, edge aggregation points, and compact data closets under centralized UniFi Network management.
Key Features
Eight 10 GbE PoE++ RJ45 ports
Two 10 GbE SFP+ fiber uplink ports
155 W total PoE budget across all ports
Layer 3 routing & DHCP service support
Technical Specifications
| Specification | Value |
|---|
| Brand | Ubiquiti |
| Part Number | USW-Pro-XG-8-PoE |
| Product Type | Managed PoE++ Etherlighting Switch |
| RJ45 Ports | 8× 10 GbE PoE++ (10G/5G/2.5G/1G/100M) |
| SFP+ Ports | 2× 10 GbE (10G/1G) |
| Total PoE Budget | 155 W |
| PoE Standards | 802.3af/at/bt (up to 60 W per port) |
| Switching Capacity | 200 Gbps |
| Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Form Factor | Desktop or wall mount |
| Management | UniFi Network platform |
| Dimensions (WxDxH) | 210.4×173.8×43.7 mm |
| Operating Temp | -5 °C to 45 °C |
