Ubiquiti USW-Enterprise-8-PoE Networks Switch View larger
Previous Next

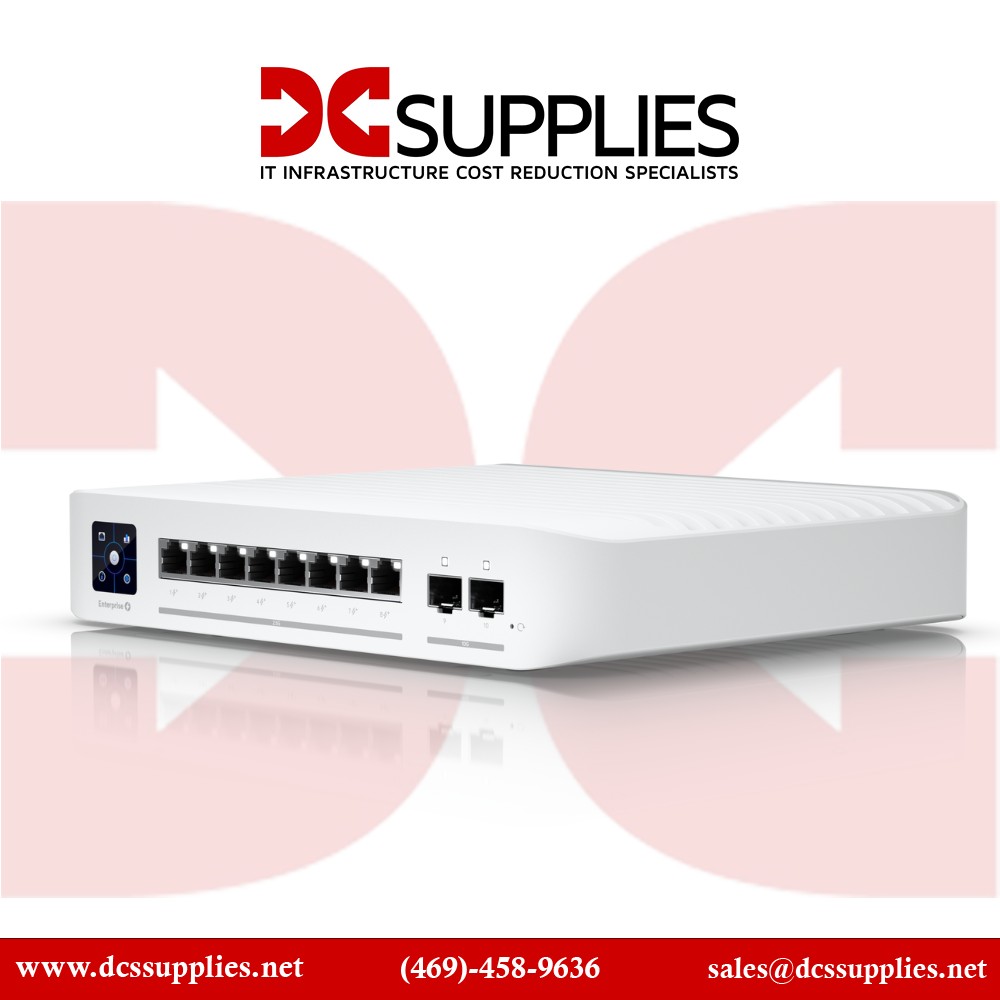

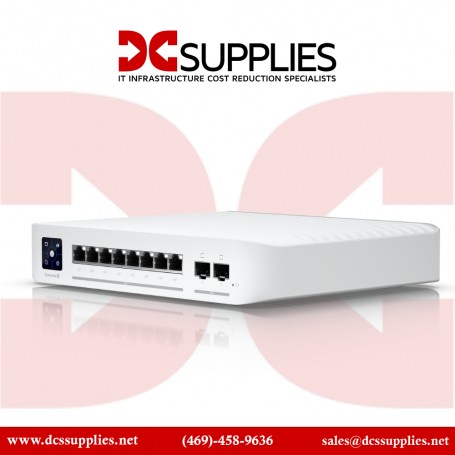

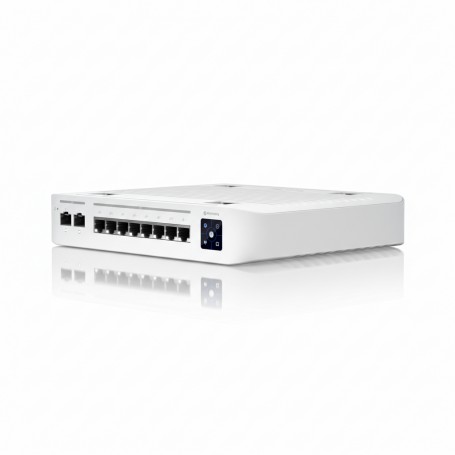

Ubiquiti USW-Enterprise-8-PoE Networks Switch

New

Silent, High-Speed Layer 3 PoE+ Switch with SFP+ Uplinks
×




  • New

Detailed Specifications

Ubiquiti USW-Enterprise-8-PoE

UniFi 8-Port 2.5Gb PoE+ Layer 3 Switch with 10G SFP+ Uplinks – Enterprise-Grade Network Solution

The Ubiquiti USW-Enterprise-8-PoE is a compact, silent, high-throughput managed switch designed for modern business networks requiring high-speed data transfer, PoE device support, and centralized control. Ideal for IT environments that utilize Wi-Fi 6 access points, IP security cameras, and VoIP endpoints, this Layer 3 UniFi switch delivers the performance, visibility, and flexibility that growing networks demand.

Features :

Equipped with eight 2.5GbE RJ45 ports, each delivering PoE+ (up to 32W per port) and a total budget of 120W, the USW-Enterprise-8-PoE supports powerful devices directly over Ethernet. For fast backbone connectivity, two 10Gb SFP+ ports provide uplink flexibility for aggregation or high-speed fiber connections. Designed for silent operation in office or edge deployments, it features fanless cooling and can be mounted on a desk, wall, or flat surface.

Advanced Options :

Easily managed through the UniFi Network Controller, this switch allows for in-depth Layer 3 configuration, traffic routing, VLAN tagging, and port-level control. The integrated AR (Augmented Reality) feature within the UniFi mobile app gives users a live view of cable layouts and port connectivity, greatly simplifying diagnostics and deployment. With full support for IEEE 802.3af/at standards, modular expansion, and robust fiber options, the USW-Enterprise-8-PoE is purpose-built for intelligent, scalable networking.

Product Key Features

  • 8 x 2.5GbE RJ45 PoE+ ports with 120W PoE budget
  • 2 x 10G SFP+ uplink ports for high-speed fiber
  • 1.3" color touchscreen for real-time monitoring
  • Silent fanless operation with desktop or wall mounting
  • Managed via UniFi Network Controller & mobile app
  • Layer 3 switching with AR topology and port management

Reliability & Performance :

Designed for silent operation in office or edge deployments, it features fanless cooling and can be mounted on a desk, wall, or flat surface using included hardware. The switch's 1.3" LCM touchscreen offers visual feedback on port status, troubleshooting, and monitoring at a glance. With full support for IEEE 802.3af/at standards, modular expansion, and robust fiber options, the USW-Enterprise-8-PoE delivers consistent performance in demanding environments.

Key Features :

  • 8 x 2.5GbE PoE+ ports, each up to 32W
  • 2 x 10Gb SFP+ uplink ports
  • 120W total PoE budget
  • Fanless, silent operation
  • 1.3" LCM touchscreen for status and configuration
  • Central management via UniFi Controller and mobile app
  • Layer 3 switching and augmented reality visualization

Specifications :

SpecificationDetails
Model Number USW-Enterprise-8-PoE
Product Type Layer 3 Managed PoE+ Switch
Ethernet Ports 8 x 2.5GbE RJ45 with PoE+
Expansion Slots 2 x 10Gb SFP+
PoE Support IEEE 802.3af/at (PoE+)
PoE Budget 120W total (32W max per port)
Switching Layer Layer 3
Management UniFi Network Controller / Mobile App
Touchscreen Display 1.3" LCM color touchscreen
Enclosure Material Polycarbonate
Form Factor Desktop / Wall Mountable
Cooling Fanless
Power Consumption 150W (maximum)
Power Input 120–230V AC, 50/60Hz
Network Standards 2.5GBase-T, 10GBase-X
Media Types Supported Twisted Pair, Optical Fiber
Dimensions 9.8" x 7.9" x 1.7"
Weight Approx. 2.6 lbs (1.2 kg)
Modular Yes
