Ubiquiti Networks UISP-S-Pro 24-Port, Gigabit, PoE Switch with SFP+uplinks View larger
Previous Next

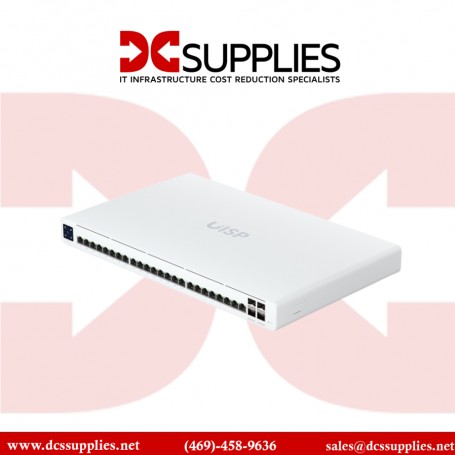

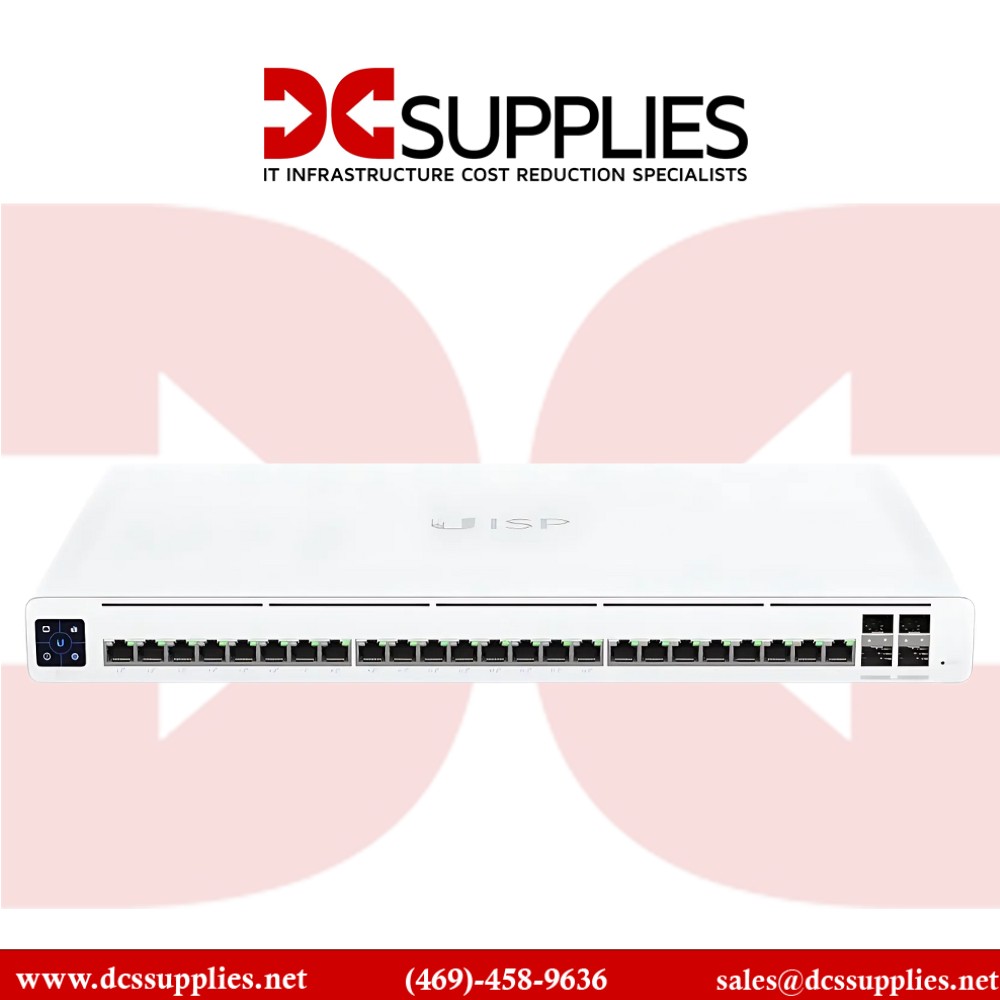

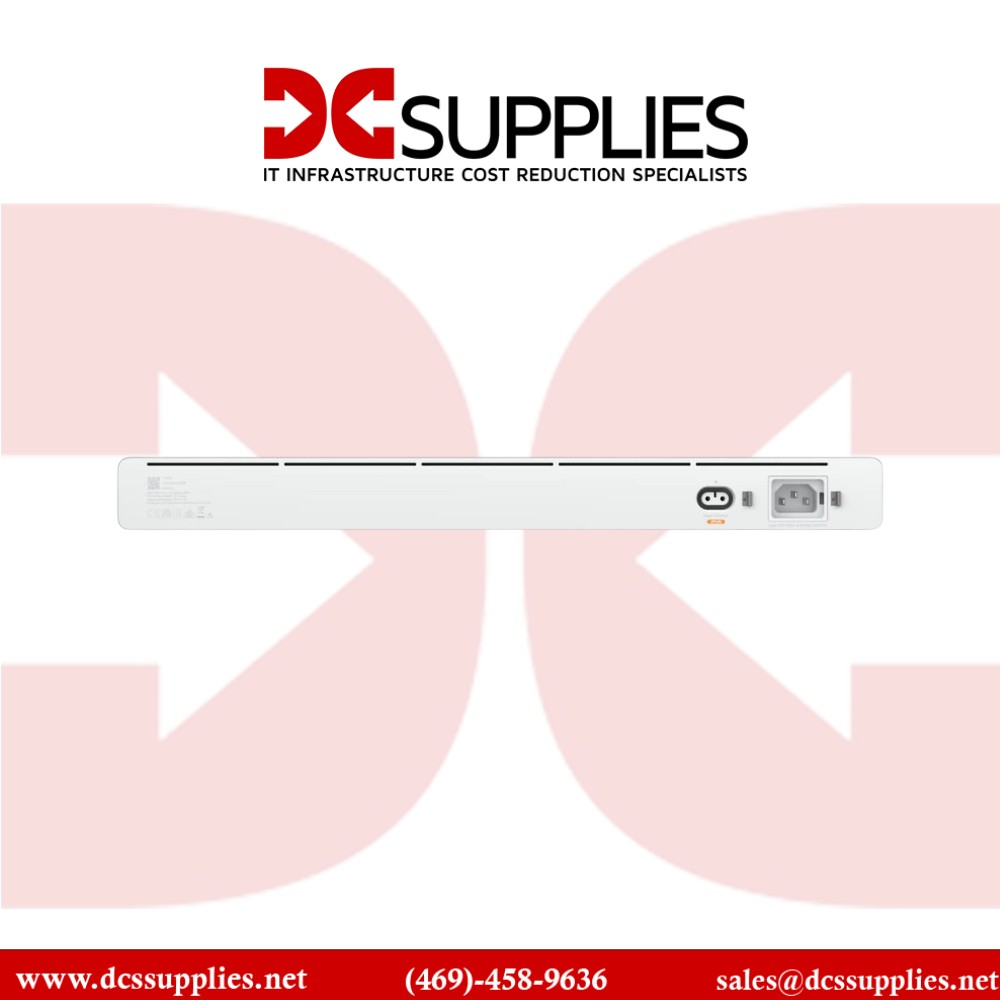

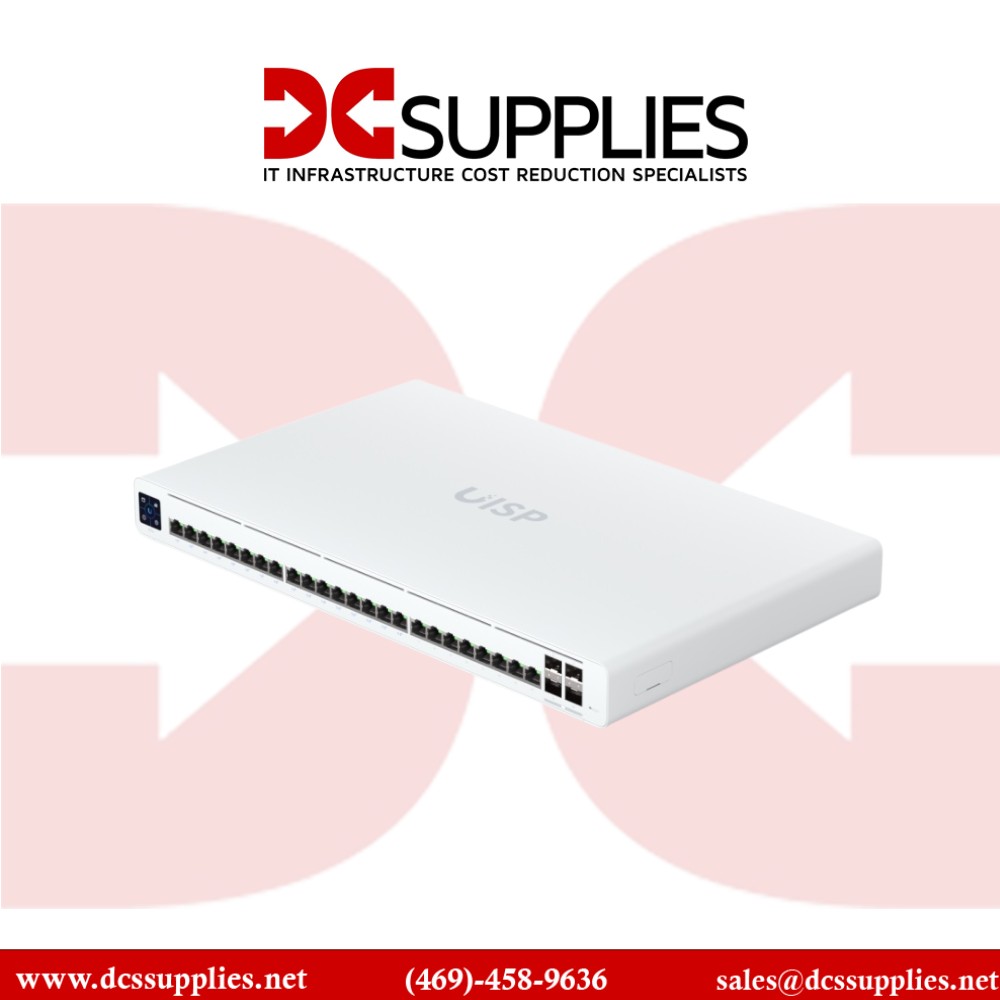

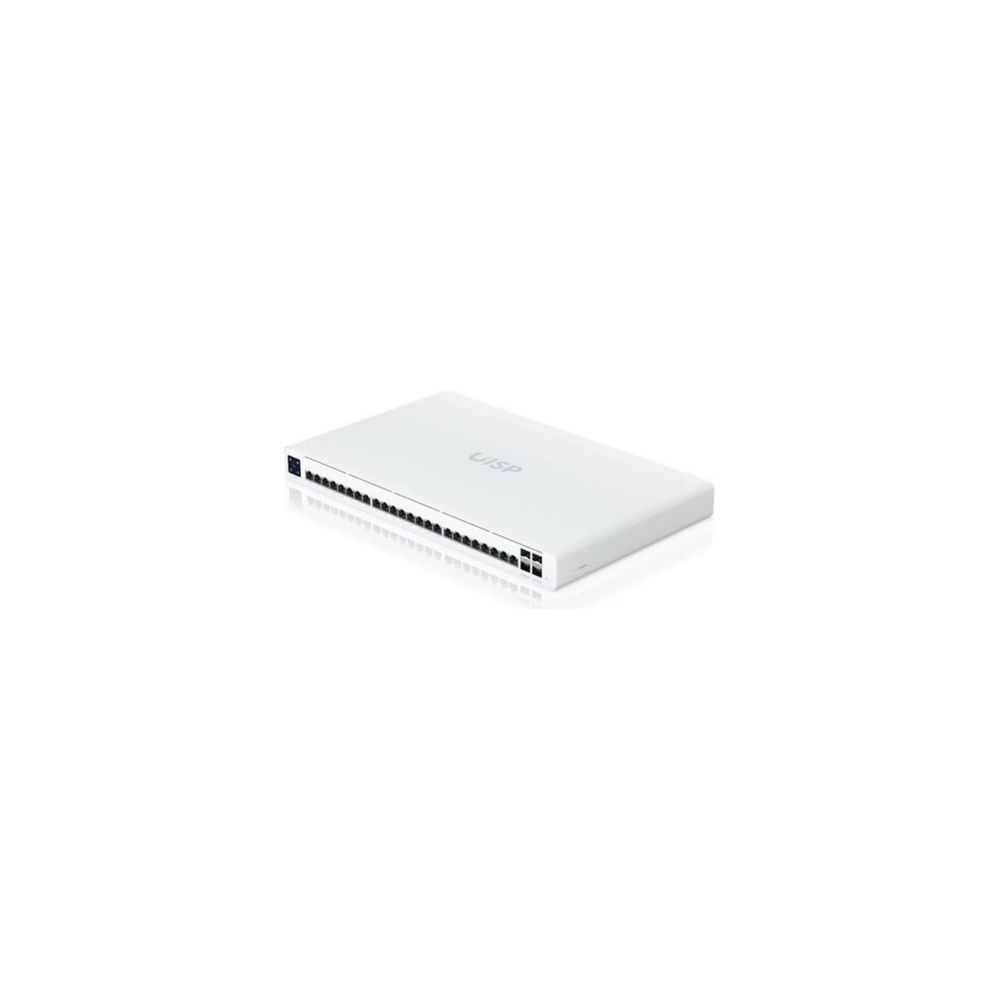

Ubiquiti Networks UISP-S-Pro 24-Port, Gigabit, PoE Switch with SFP+uplinks

New

Managed PoE Switch with SFP+ and Redundant Power
×




  • New

Detailed Specifications

Ubiquiti UISP-S-Pro

24-Port Gigabit PoE Switch with SFP+ Uplinks – High-Performance Network Solution

The Ubiquiti UISP-S-Pro is a professional-grade, 24-port Gigabit PoE switch designed to meet the evolving demands of modern ISP networks, data centers, and enterprise infrastructures. Featuring a combination of passive PoE support, high-speed SFP+ uplinks, and advanced management capabilities, this switch provides power, performance, and visibility in one compact unit.

Features :

With 24 Gigabit RJ45 ports—16 of which support 27V passive PoE—the UISP-S-Pro powers access points, IP surveillance cameras, and VoIP systems directly over Ethernet. The four SFP+ ports deliver 1/10G uplink capability, ideal for aggregating high-throughput connections across core and edge networks. Integrated port isolation, DHCP snooping, and speed limiting features enhance network security and bandwidth control.

Advanced Options :

The switch is managed through the UISP platform, which offers centralized control for device monitoring, firmware updates, and real-time performance analytics. On-device management is simplified through a vibrant 1.3" LCM touchscreen and quick Bluetooth-based setup via the UISP mobile app. Built for high-availability deployments, it includes both a universal AC input and a Power TransPort DC input to ensure operational redundancy.

Product Key Features

  • 24 Gigabit RJ45 ports with 16 passive PoE outputs
  • 4 high-speed 1/10G SFP+ uplink ports
  • 220W total PoE budget with per-port control
  • 1.3" touchscreen LCM for device management
  • Bluetooth setup via UISP Mobile App
  • Redundant DC Power TransPort input

Reliability & Performance :

Built for high-availability deployments, the UISP-S-Pro includes both a universal AC input and a Power TransPort DC input to ensure operational redundancy. With a switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps, it delivers consistent, low-latency performance in demanding environments. Designed with a durable SGCC steel and ABS/polycarbonate enclosure, the unit withstands harsh conditions with ESD/EMP protection and a wide operating temperature range of -10 to 50°C.

Key Features :

  • 24 GbE RJ45 ports with 16 passive PoE outputs
  • 4 x 1/10G SFP+ uplink ports
  • 220W total PoE power budget
  • 1.3" color LCM touchscreen
  • Dual power input: AC and DC Power TransPort
  • UISP centralized software and mobile app management
  • Switch capacity: 128 Gbps | Forwarding rate: 95.23 Mpps

Specifications :

SpecificationDetails
Model Number UISP-S-Pro
Product Type Layer 2 Managed PoE Switch
Ports 24 x GbE RJ45, 4 x 1/10G SFP+
PoE Support 16 x 27V Passive PoE RJ45 Ports
PoE Budget 220W total, 15W (2-pair) / 30W (4-pair)
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
Non-blocking Throughput 64 Gbps
Power Input 100–240V AC, 4.4A / 27V DC, 9.3A
Power Supply Internal AC/DC, 250W
Max Power Consumption 30W (excluding PoE output)
Display 1.3" Color Touchscreen LCM
Management Interfaces Ethernet (In-band), Bluetooth (mobile setup)
Enclosure Material SGCC Steel, Polycarbonate/ABS
Dimensions 442.4 x 267.5 x 43.7 mm (1U rackmount)
Weight 4 kg (8.8 lbs)
Operating Temp -10 to 50°C (14 to 122°F)
Operating Humidity 5% to 95% non-condensing
