Detailed Specifications

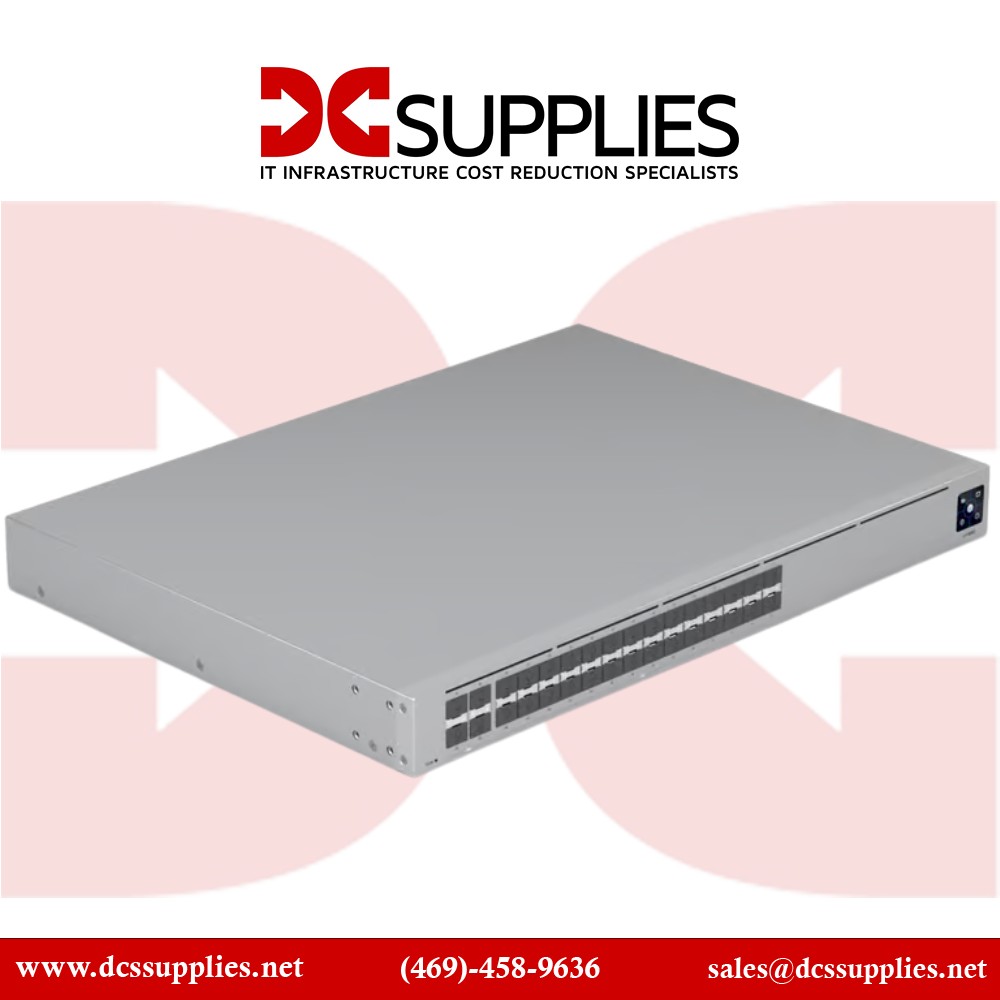

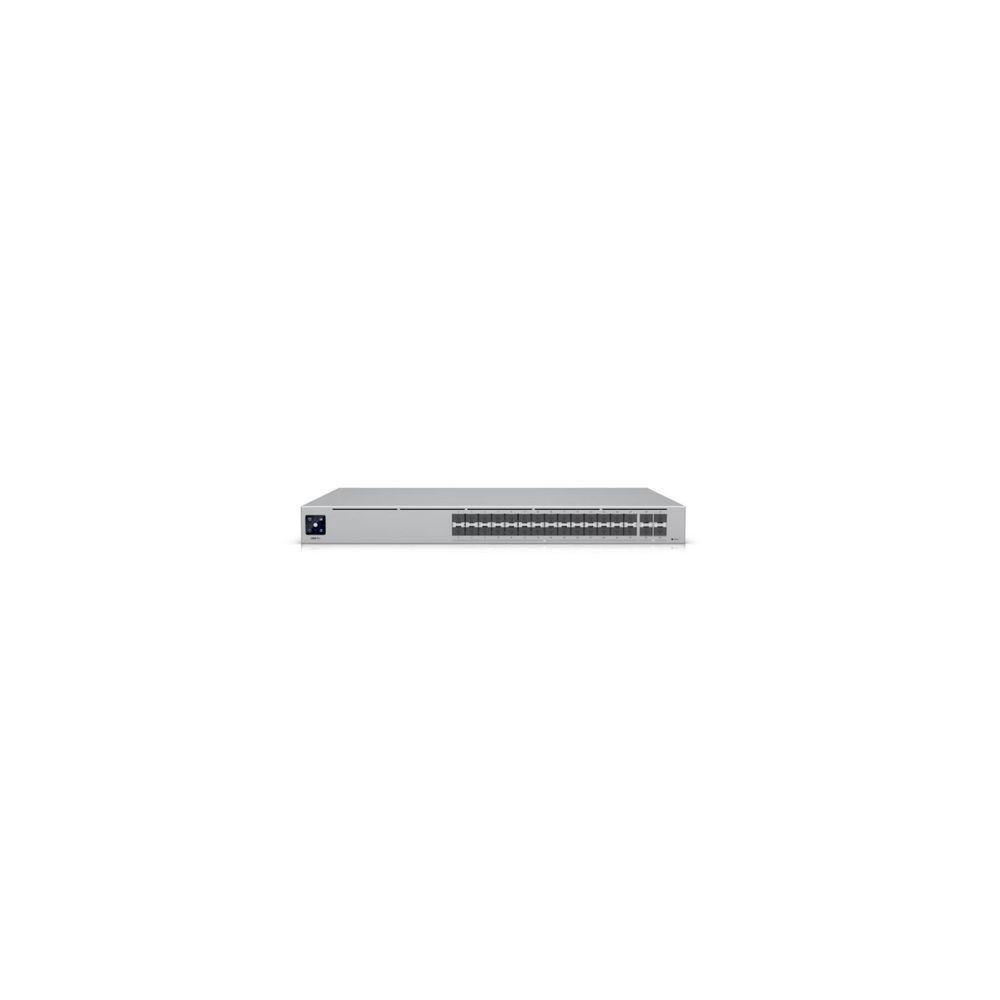

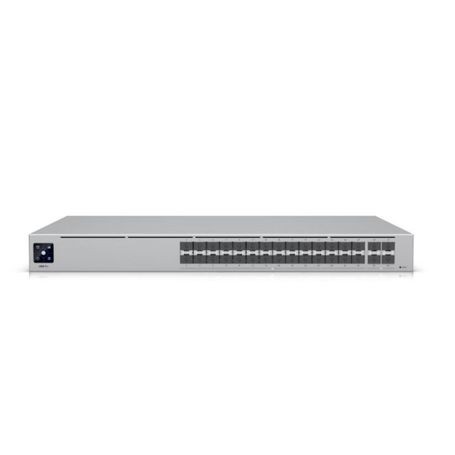

Ubiquiti USW-Pro-Aggregation UniFi Switch Pro Aggregation 28-Port 10G SFP+ Managed Switch with SFP28
Overview :
Build and expand your network with the UniFi ® Switch, part of the Ubiquiti Networks ® UniFi Enterprise System. The UniFi Switch, model USW-Aggregation- Pro, is a congurable 10G ber Layer-3 switch. It offers 28 10G SFP+ ber links to your devices and 4 25G SFP28 ber uplink options to your enterprise network.
The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for quick diagnosis.
Managed and congured by the UniFi Network Application with UniFi Network Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Network Application and mobile app allow admins to congure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Specifications :
| Product Name |
Unifi Switch Pro Aggregation |
| Manufacturer Part Number |
USWPROAGGREGATION |
| Product Type |
Layer 3 Switch |
| Manageable |
Yes |
| Ethernet Technology |
10 Gigabit Ethernet
25 Gigabit Ethernet
|
| Number of Total Expansion Slots |
32 |
| Product Family |
UniFi |
| Media Type Supported |
Optical Fiber |
| Redundant Power Supply Supported |
Yes |
| Expansion Slot Type |
SFP+
SFP28
|
| Form Factor |
Rack-mountable |
| Power Consumption |
100 W |
| Power Source |
Power Supply |
| Layer Supported |
3 |
| Number of SFP+ Slots |
28 |
| Modular |
Yes |
| Uplink Port |
Yes |
| Port / Expansion Slot Details |
28 x 10 Gigabit Ethernet Expansion Slot
4 x 25 Gigabit Ethernet Expansion Slot
|
| Height |
1.7" |
| Width |
17.4" |
| Depth |
12.8" |
| Product Model |
USW-Aggregation-Pro |
| Network Technology |
10GBase-X
25GBase-X
|
| Product Line |
UniFi |
| Frequency |
50 Hz
60 Hz
|
