Ubiquiti USW-24-POE Networks Unifi 24 Port Gigabit PoE Switch View larger

Ubiquiti USW-24-POE Networks Unifi 24 Port Gigabit PoE Switch

USW-24-POE

New

In Stock

Ubiquiti USW-24-POE Networks Unifi 24 Port Gigabit PoE Switch
×




dc supplies, 24-Port Gigabit Ethernet Switch, Network Switch with PoE, Ubiquiti Switch, Ubiquiti Networks Switch, UniFi Network Switch, USW-24-POE, Ubiquiti USW-24-POE, USW-24-POE Switch, Ubiquiti Networks UniFi Series, Enterprise PoE Switch

$379.95

Detailed Specifications

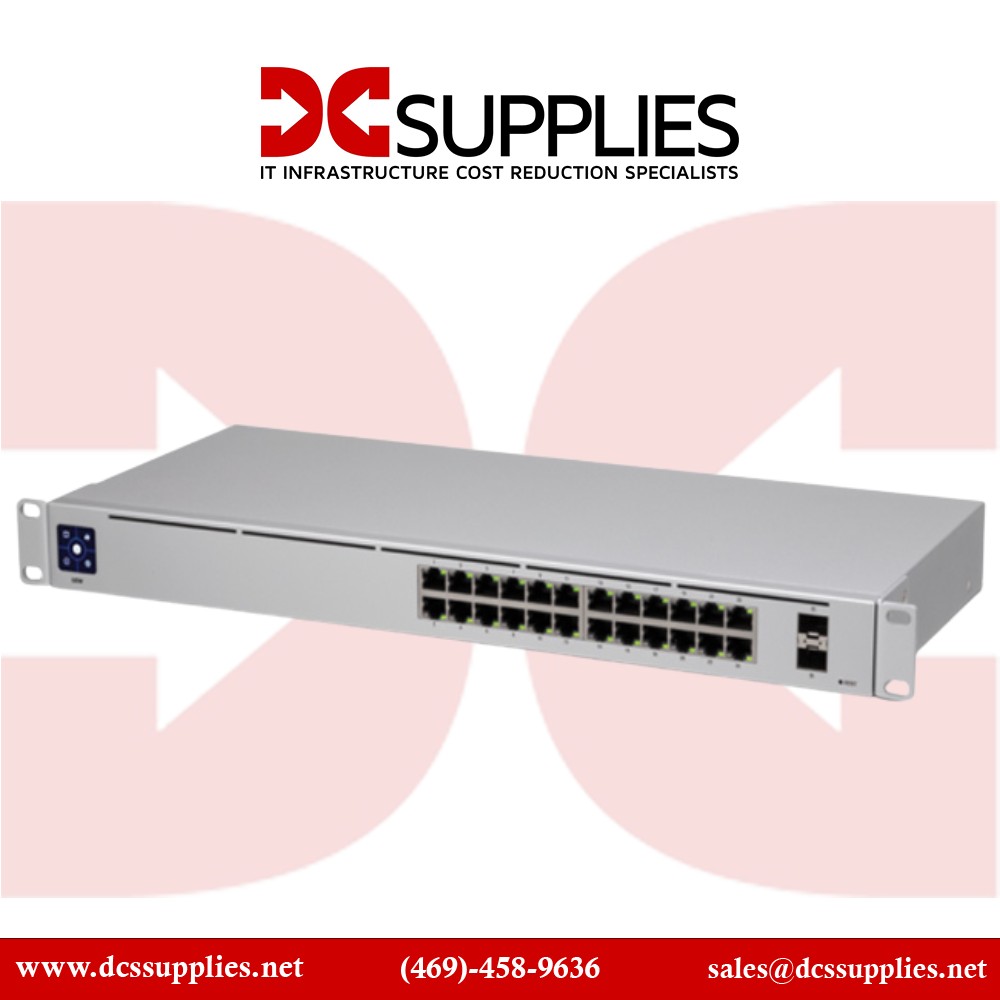

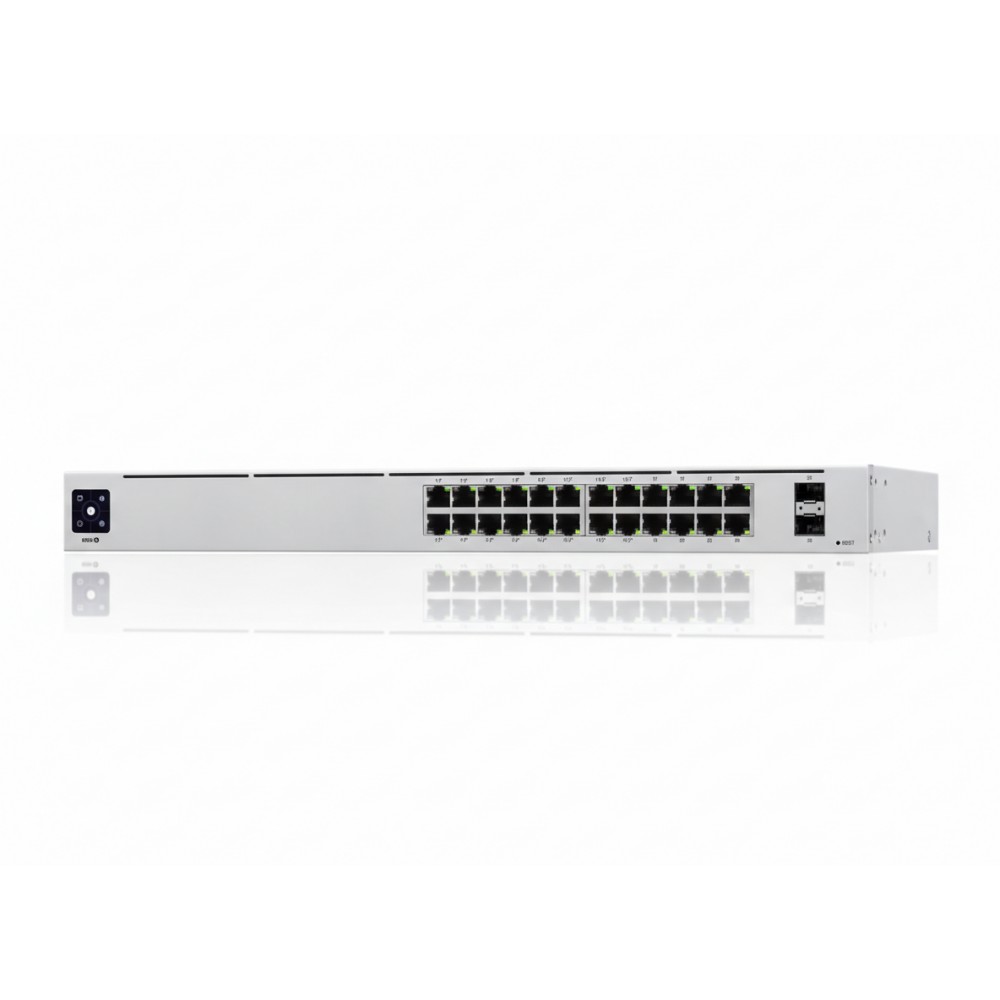

Ubiquiti USW-24-POE Networks Unifi 24 Port Gigabit PoE Switch

Overview :

Expand your business's network with the fully manageable UniFi 24-Port Gigabit PoE+ Complaint Managed Switch from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 24-port Gigabit switch includes 16 32W PoE+ connectors with a total power budget of 95W to power devices such as network security cameras. Each port delivers 26 Gb/s non-blocking throughput, with a 52 Gb/s switching capacity, and a 38.69 Mpps forwarding rate. Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Switching Performance
This UniFi switch offers a 38.69 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Switch has a non-blocking throughput of 26 Gb/s with a 52 Gb/s switching capacity.
UniFi Controller
Network Management
The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.

Specifications :

Product Name Unifi 24 Port Gigabit PoE Switch
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 2
Media Type Supported Optical Fiber

Twisted Pair
Total Number of Network Ports 24
Expansion Slot Type SFP (mini-GBIC)
Form Factor Rack-mountable

Desktop
Power Source Power Supply
Layer Supported 2
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of SFP Slots 2
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 16 x Gigabit Ethernet PoE+

8 x Gigabit Ethernet Network

2 x Gigabit Ethernet Uplink
Height 1.7"
Width 17.4"
Depth 7.9"
Product Model USW-24-POE
Network Technology 10/100/1000Base-T

1000Base-X
