Detailed Specifications

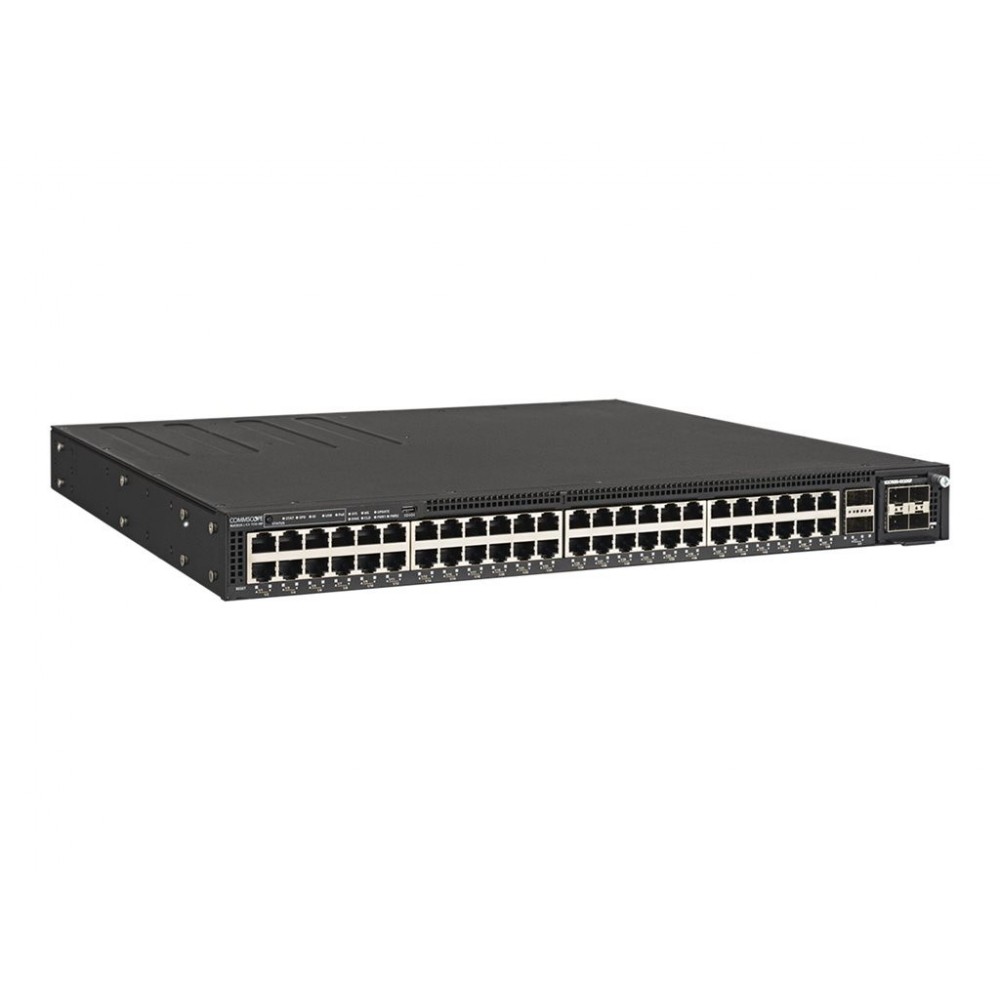

Ruckus ICX7450-48P-E2 – 48-Port Gigabit PoE+ Stackable Switch
Overview :
The Ruckus ICX7450-48P-E2 is a 1 RU, 48-port 10/100/1000 Mbps RJ-45 access switch with full PoE+ support, designed for enterprise campus or wiring-closet use. It delivers both data and power to edge devices, simplifying deployments when USB power or AC outlets are limited. With modular uplink/stacking slots for 4×10 GbE SFP+ or 2×40 GbE QSFP+ and stacking support for up to 12 units per stack, it scales easily. The unit supports advanced Layer 2/3 features (such as static routing, OSPF, BGP) and optional service modules (for example IPsec VPN) so it fits both as an access switch and for smaller aggregation environments. Dual hot-swappable redundant power supplies and fan modules contribute to high availability in demanding operational environments.
Key Features :
48 × 1 GbE RJ-45 ports with full PoE+ support
Modular uplink/stacking slots up to 10 GbE/40 GbE speeds
Supports stack of up to 12 switches, 960 Gbps stack bandwidth
Dual hot-swappable power supplies and redundant fans
Advanced Layer 2/3 routing with OpenFlow and MACsec support
Specification :
| Specification | Details |
|---|
| Brand | RUCKUS |
| Part Number | ICX7450-48P-E2 |
| Product Type | Managed Stackable PoE+ Access Switch |
| Switching Capacity | 336 Gb/s |
| Forwarding Performance | 250 Mpps |
| PoE Budget | Up to 1,500 W with dual power supplies |
| Port Configuration | 48 × 1 GbE RJ45 ports |
| Uplink/Stack Ports | 4 × 10 GbE SFP+ + 2 × 40 GbE QSFP+ modules |
| Maximum Stack Members | 12 |
| Stack Bandwidth | Up to 960 Gb/s |
| Routing Protocols | BGP, OSPF, VRRP |
| PoH Support | Yes (up to 90 W per port) |
| Form Factor | 1 RU |
| Dimensions (H×W×D) | 1.73 × 17.32 × 14.33 in |
| Weight | 22.7 lbs |
