Detailed Specifications

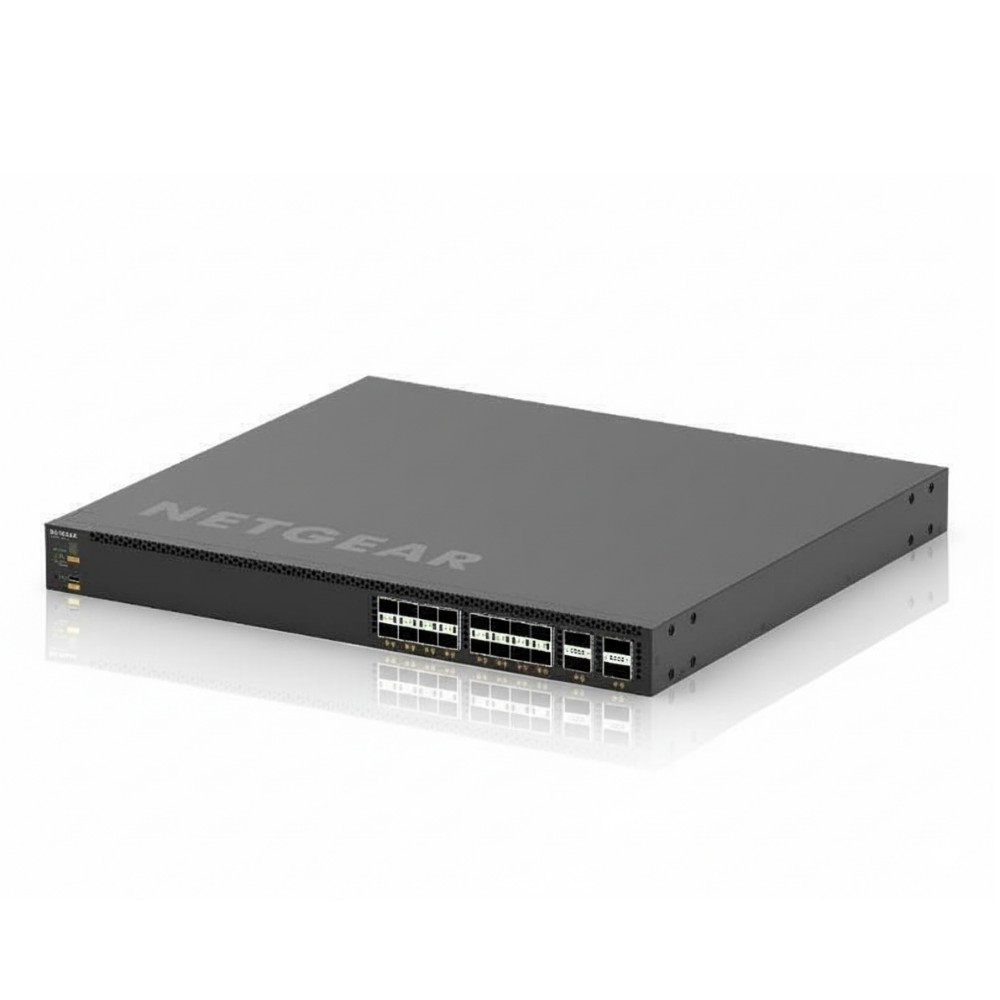

Netgear VSM4230C-100NES 25G 100G Managed Switch
Overview
The Netgear VSM4230C-100NES is a managed switch built for professional AV-over-IP and IT infrastructures that demand high-speed, low-latency connectivity. It delivers 16 SFP28 ports (1/10/25 G) and 4 QSFP28 ports (40/100 G) for uplinks or stacking. It functions well in edge, aggregation, or core segments in broadcast, campus, or AV facilities. The device integrates with Netgear’s M4350 family and supports AV-centric features, timing (PTP), and enhanced multicast for media streaming.
Key Features
16 SFP28 ports supporting 1/10/25 G
4 QSFP28 ports capable of 40/100 G
1.6 Tbps switching capacity
AV-friendly features: IGMP Plus, PTP, streaming profiles
Technical Specifications
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | VSM4230C-100NES |
| Product Type | Managed AV/IT switch |
| Port Configuration | 16 × SFP28 + 4 × QSFP28 |
| Speed Support | 1 / 10 / 25 Gbps on SFP28 ports; 40 / 100 Gbps on QSFP28 |
| Switching Capacity | 1.6 Tbps |
| Forwarding Rate | 1,190.4 Mpps |
| Management Interfaces | RJ-45, USB-C console, USB-A, SNMP, CLI, Web GUI |
| Cooling / Airflow | Front-to-back fan cooling |
| Redundant Power Support | Optional modular PSU slot |
| Typical Use Cases | AV-over-IP, campus backbone, high-speed aggregation |
