Detailed Specifications

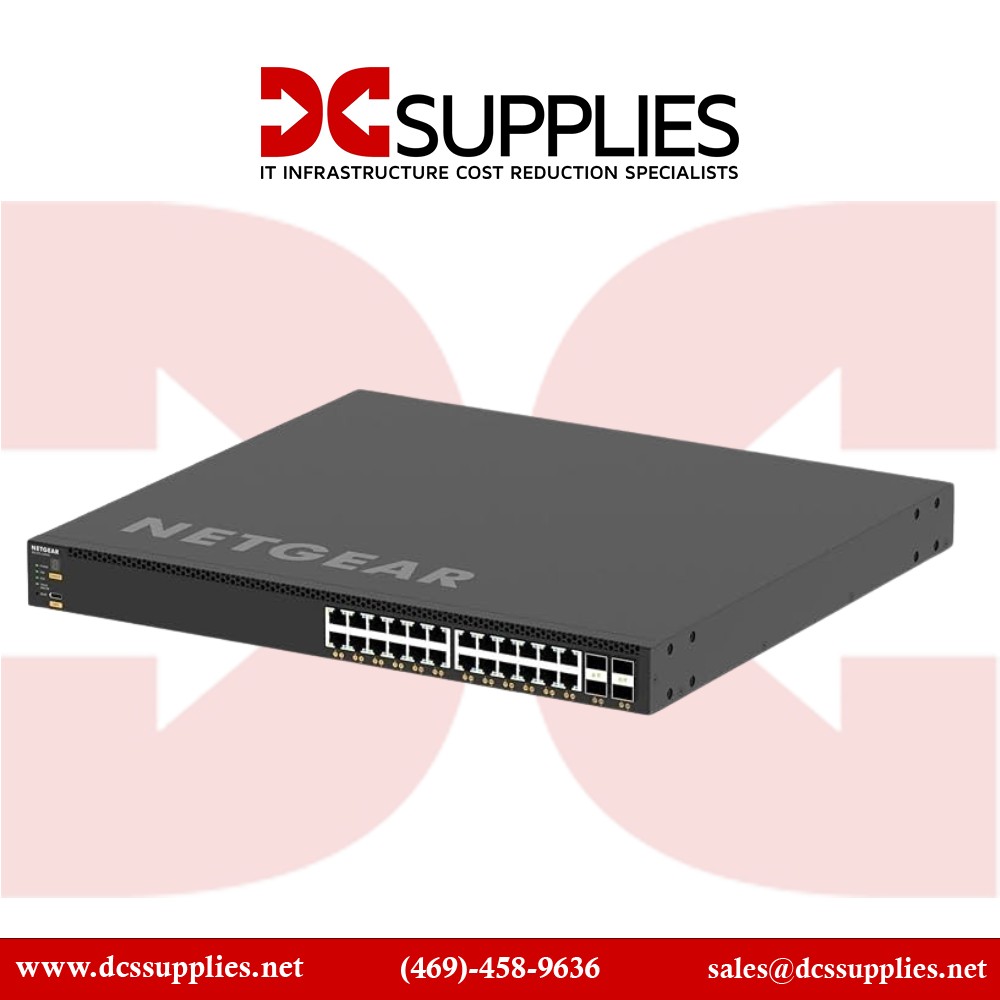

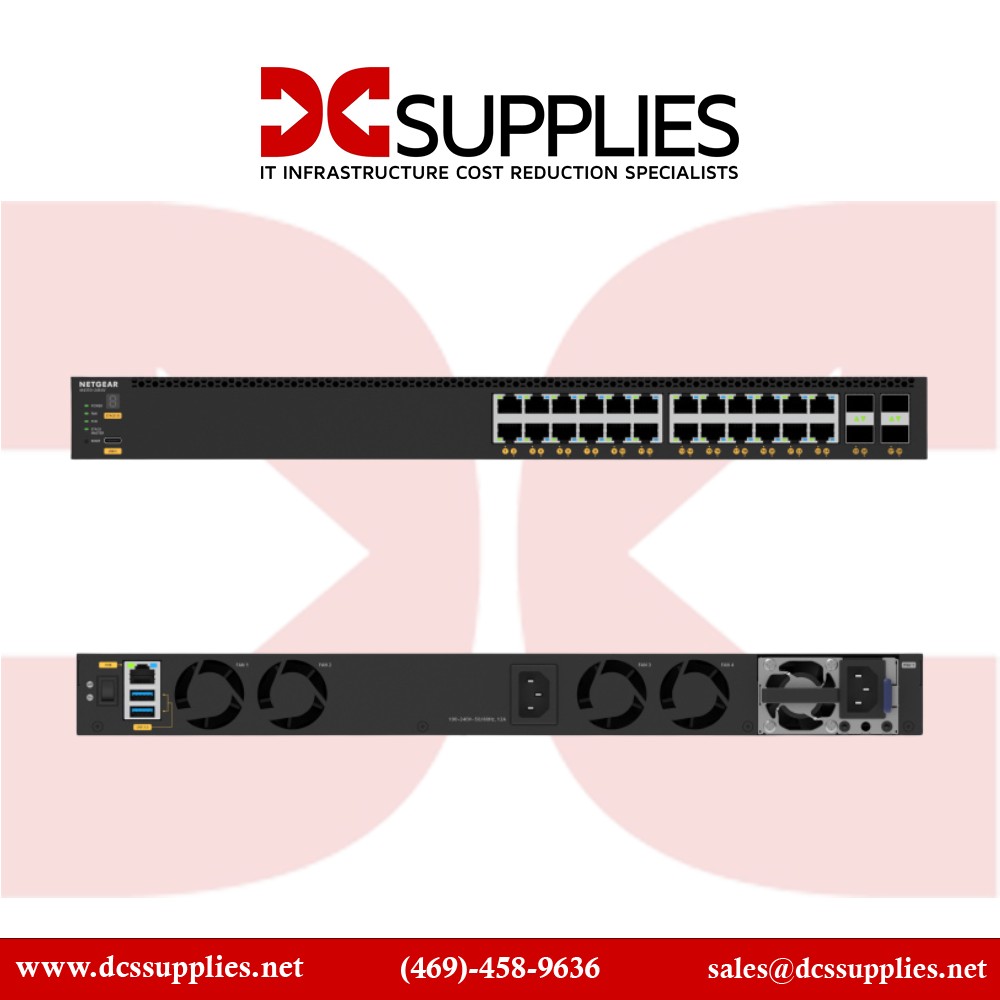

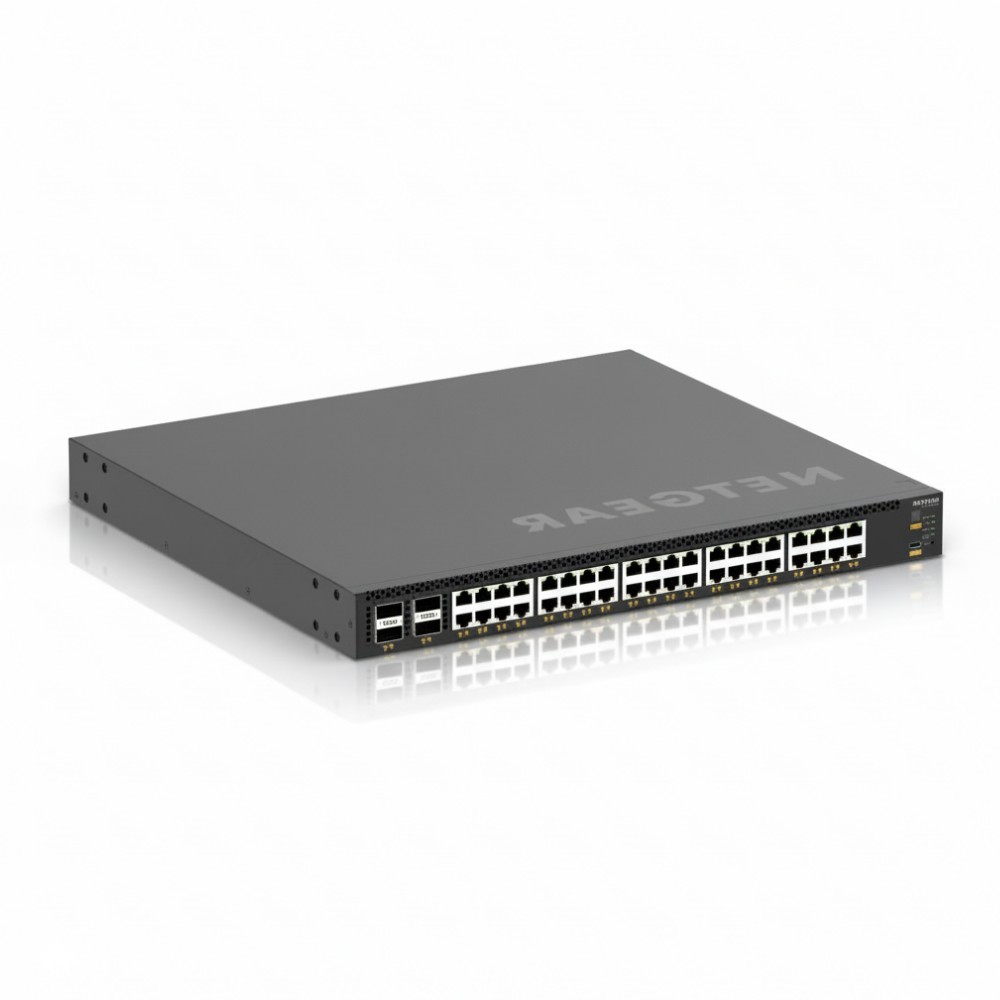

Netgear XSM4340CV-100NES Multi-Gig 25G Managed Switch
Overview :
The Netgear XSM4340CV-100NES is a fully managed Layer 2/3 multi-gigabit switch built for converged AV-over-IP, enterprise, and campus environments requiring high power delivery and 25G uplink flexibility. It provides 36 RJ-45 multi-gigabit PoE++ ports supporting 1G, 2.5G, 5G, and 10G speeds, along with four SFP28 uplink ports capable of 25 Gbps operation. This model is part of Netgear’s M4350 Series, designed specifically for high-bandwidth AV, IT, and hybrid deployments requiring precision timing and predictable performance. With a base PoE power budget of 280 W—expandable up to 1,760 W via modular PSU upgrades—the switch delivers reliable power to IP cameras, access points, displays, and control processors. The unit supports advanced features such as IEEE 1588 PTP, SMPTE ST 2110, VLAN segmentation, QoS prioritization, and multicast optimization for streaming media. Its front-to-back airflow design, redundant power options, and comprehensive management suite make it ideal for data center edge, broadcast studios, and enterprise aggregation points.
Key Features :
36 multi-gig RJ-45 PoE++ ports with 1G–10G support
4 SFP28 uplink ports supporting 25 Gbps connectivity
Expandable PoE budget up to 1,760 W with modular PSU
Layer 2/3 management, PTP, and SMPTE ST 2110 support
Technical Specifications :
| Specification | Value |
|---|
| Brand | Netgear |
| Part Number | XSM4340CV-100NES |
| Product Type | Managed multi-gigabit PoE++ switch |
| Port Configuration | 36 × RJ-45 (1G/2.5G/5G/10G) + 4 × SFP28 (25 G) |
| Switching Capacity | 920 Gbps |
| Forwarding Rate | 684.48 Mpps |
| Base PoE Budget | 280 W |
| Maximum PoE Budget | Up to 1,760 W with expansion modules |
| Power Supply | Internal AC power with modular redundant PSU slot |
| Cooling | Front-to-back airflow with variable-speed fans |
| Form Factor | 1U rackmount |
| Dimensions (W × D × H) | 440 mm × 400 mm × 43.2 mm (17.3 × 15.7 × 1.7 in) |
| Weight | 7.33 kg (16.15 lb) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Management Interfaces | 1 × RJ-45 management, 1 × USB-C console, 2 × USB-A |
| Management Features | Web GUI, CLI, SNMP, RADIUS, TACACS+, IPv4/IPv6 management |
| Supported Protocols | VLAN, LACP, LLDP, QoS, MSTP, IGMP Snooping, DHCP Relay |
| Timing / Media Features | IEEE 1588 PTP, SMPTE ST 2110, multicast streaming optimization |
| Typical Use Cases | Broadcast, enterprise edge, AV-over-IP, campus aggregation |
