Detailed Specifications

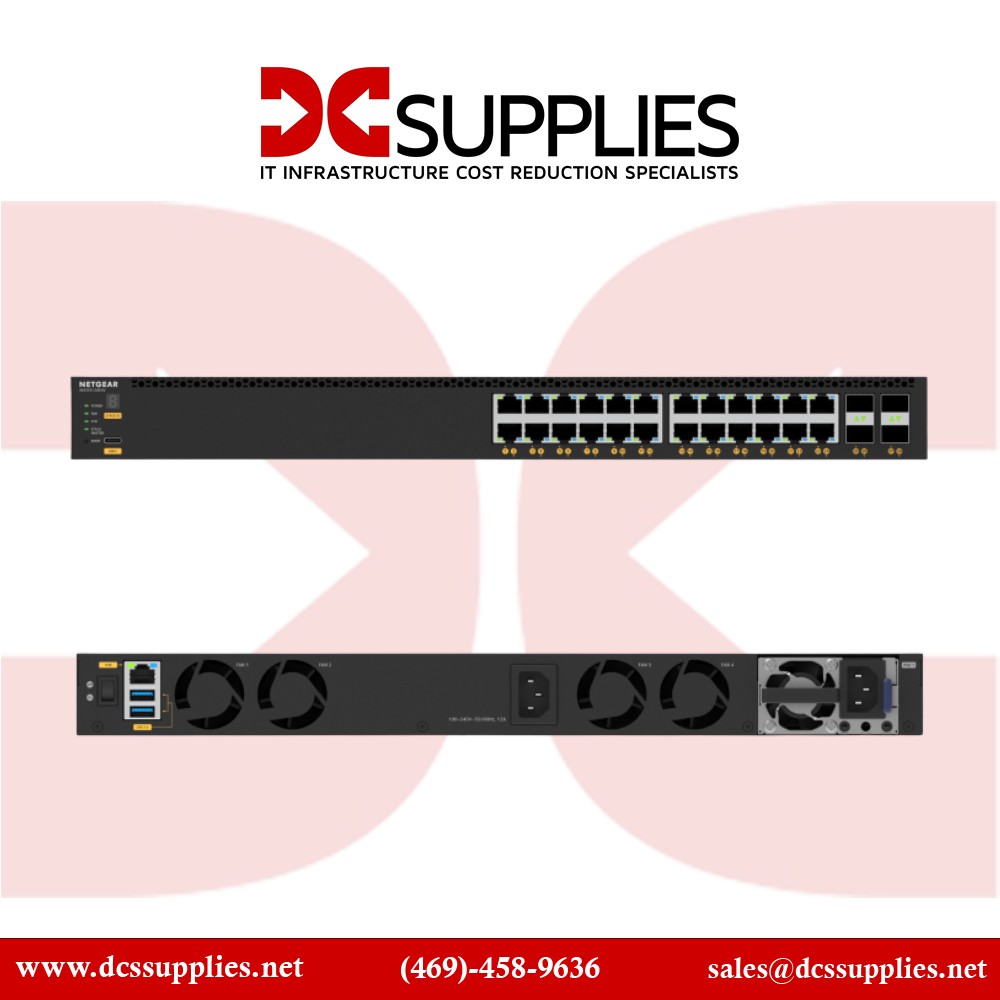

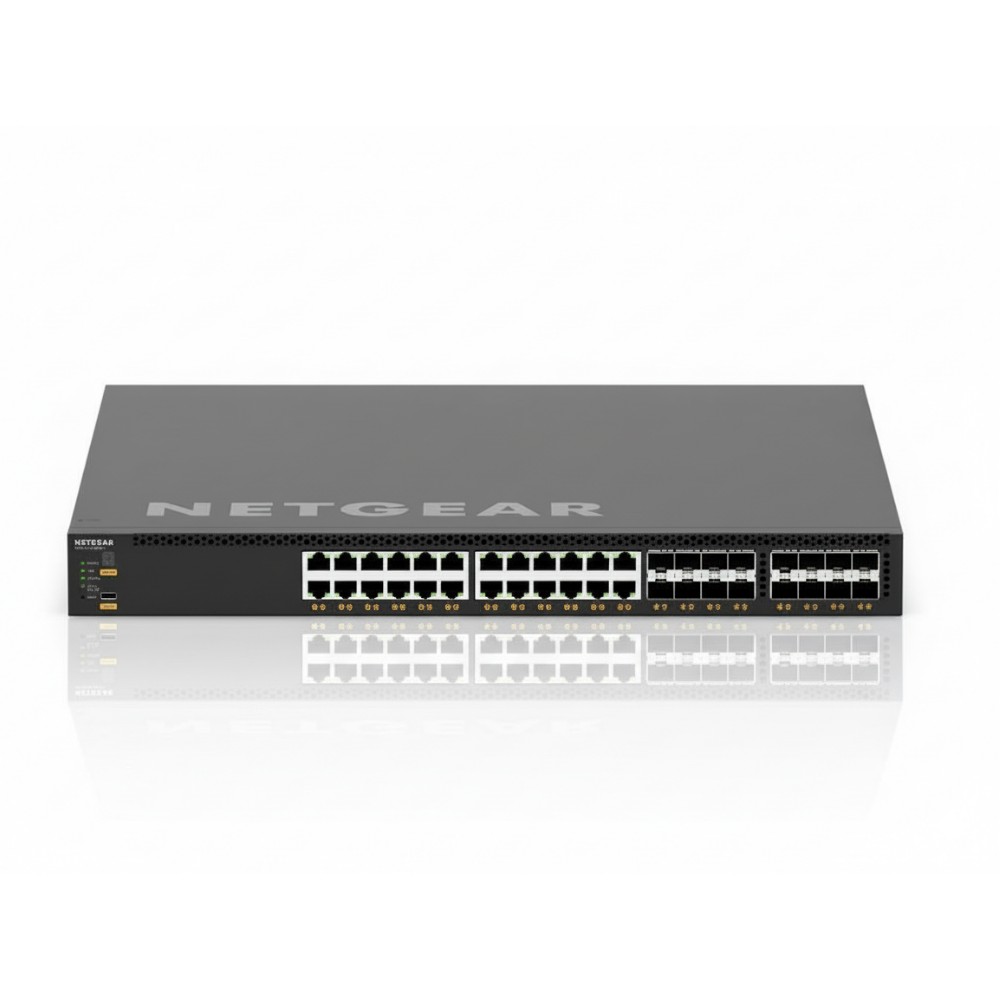

Netgear XSM4340V-TAANES 40-Port 10G PoE++ Managed Switch
Overview
The Netgear XSM4340V-TAANES is a fully managed Layer 3 switch designed for high-performance AV over IP deployments in enterprise environments. It features 24 Multi-Gigabit PoE++ ports and 8 high-speed uplink ports (8x SFP+ and 8x SFP28), providing flexible connectivity options. With a 750W internal power supply and support for modular power redundancy, it offers a PoE budget of up to 1,770W. The switch supports virtual chassis stacking for seamless scalability and includes Layer 3 routing capabilities such as static, policy-based, and dynamic routing.
Key Features :
24 Multi-Gigabit PoE++ ports (1G/2.5G/5G/10G)
8x 10GBASE-X SFP+ and 8x 25GBASE-X SFP28 uplink ports
Up to 1,770W PoE power budget with modular redundancy
Virtual Chassis stacking with non-stop forwarding (NSF)
Technical Specifications :
| Attribute | Specification |
|---|
| Brand | Netgear |
| Part Number | XSM4340V-TAANES |
| Product Type | Managed Layer 3 Switch |
| Total Ports | 40 (24 PoE++, 8 SFP+, 8 SFP28) |
| PoE++ Ports | 24 (1G/2.5G/5G/10G) |
| SFP+ Ports | 8 (10GBASE-X) |
| SFP28 Ports | 8 (25GBASE-X) |
| Internal Power Supply | 750W |
| Modular Power Supply Slot | Yes (supports APS600Wv3, APS1200Wv2, APS2000Wv2) |
| Maximum PoE Budget | 1,770W (with redundant power supply) |
| Layer 3 Features | Static, policy-based, dynamic routing |
| Stacking Support | Virtual Chassis with non-stop forwarding (NSF) |
| Dimensions (W x D x H) | 17.3 x 12.2 x 1.7 in (439.4 x 309.9 x 43.2 mm) |
| Weight | 13.2 lb (6.0 kg) |
