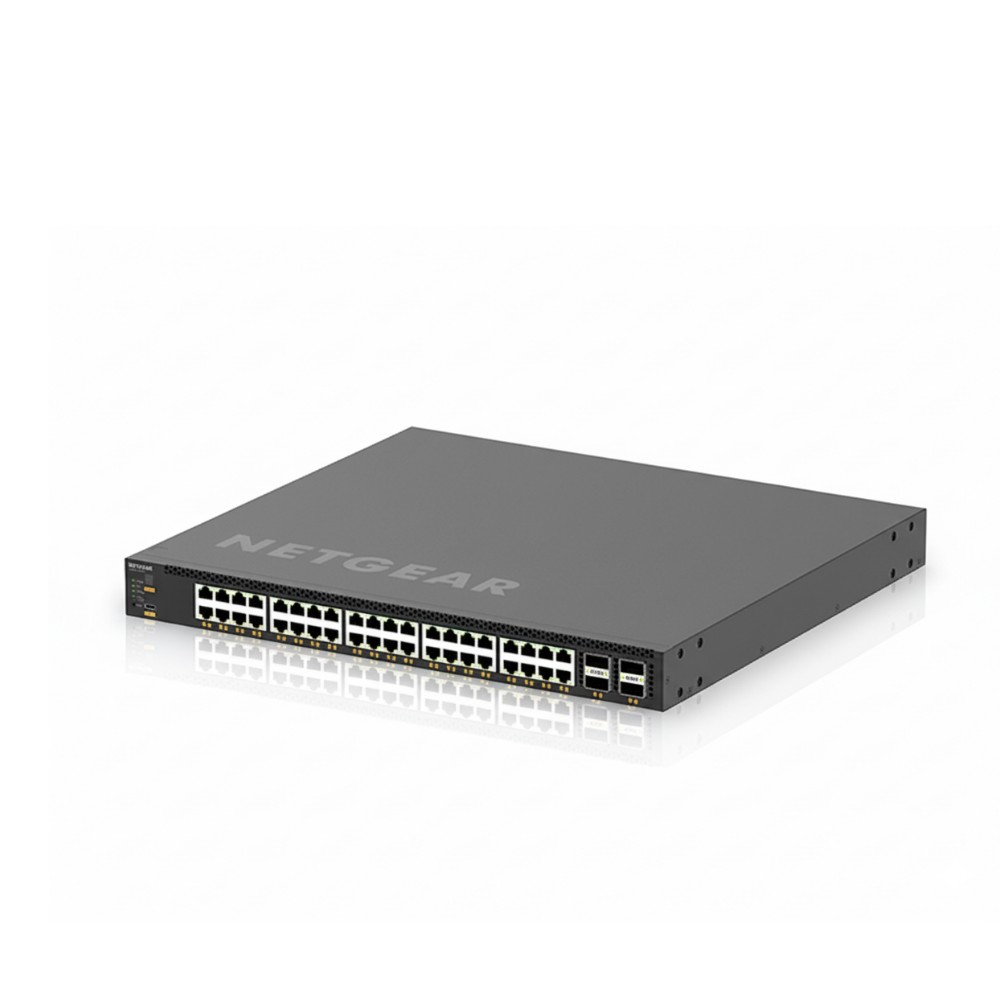

NETGEAR XSM4328CV-100NES AV Line M4350-24X4V Switch 28 Ports Managed Rack mountable View larger

Netgear XSM4328CV-100NES M4350 24x10G SFP+ and 4x25G SFP28 Managed Switch

New

24-Port 10G SFP+ Switch with 25G Uplinks
×




  • New

Detailed Specifications

Netgear XSM4328CV-100NES M4350 24x10G SFP+ and 4x25G SFP28 Managed Switch

Overview

The Netgear XSM4328CV, a cornerstone of the M4350 series (M4350-24X4V), is a high-performance Layer 3 managed switch engineered for the rigorous demands of AV-over-IP and enterprise core/aggregation layers. It features 24 dedicated 10G SFP+ ports for high-density fiber connectivity and 4 SFP28 25G uplink ports to eliminate bandwidth bottlenecks in data-intensive environments. Designed with a specific focus on Pro AV, it includes a dedicated AV web-based interface and pre-configured profiles for major industry protocols such as Dante, NVX, and Q-SYS.

The Netgear XSM4328CV, a cornerstone of the M4350 series (M4350-24X4V), is a high-performance Layer 3 managed switch engineered for the rigorous demands of AV-over-IP and enterprise core/aggregation layers. It features 24 dedicated 10G SFP+ ports for high-density fiber connectivity and 4 SFP28 25G uplink ports to eliminate bandwidth bottlenecks in data-intensive environments. Designed with a specific focus on Pro AV, it includes a dedicated AV web-based interface and pre-configured profiles for major industry protocols such as Dante, NVX, and Q-SYS.

Key Features

- 24x 10G SFP+ ports and 4x 25G SFP28 uplink ports.
- Pre-configured for Dante, Q-SYS, and AES67 AV-over-IP.
- Non-blocking 680 Gbps fabric for wire-speed performance.
- Redundant, hot-swappable power supplies for uptime.

Specifications

Brand Netgear
Part Number XSM4328CV-100NES
Product Type Managed L3 Switch
Total Ports 28 (24x 10G SFP+, 4x 25G SFP28)
Switching Capacity 680 Gbps
Forwarding Rate 505.92 Mpps
Latency < 1.0 µs (10G SFP+ to 10G SFP+)
MAC Address Table 32,000 entries
Power Consumption 78.4 W (Maximum)
Dimensions 440 x 400 x 43.2 mm
Weight 6.58 kg
Operating Temperature 0° to 50° C
Management CLI, Web GUI, Netgear Engage, SNMP

Frequently Asked Questions

Does this switch support 25G stacking?

Yes, the M4350 series supports stacking using the 25G SFP28 ports, allowing for simplified management of multiple units as a single logical device with shared throughput.

Is the XSM4328CV suitable for noise-sensitive environments?

Yes, it features intelligent fan speed control. In AV-heavy deployments, the fans can be adjusted via the software to minimize acoustic noise while maintaining thermal stability.

Can I use this switch for Dante audio networks?

Absolutely. The XSM4328CV comes with pre-configured AV profiles for Dante, ensuring proper IGMP Plus and QoS settings are applied automatically to prevent packet loss and jitter.
