Detailed Specifications

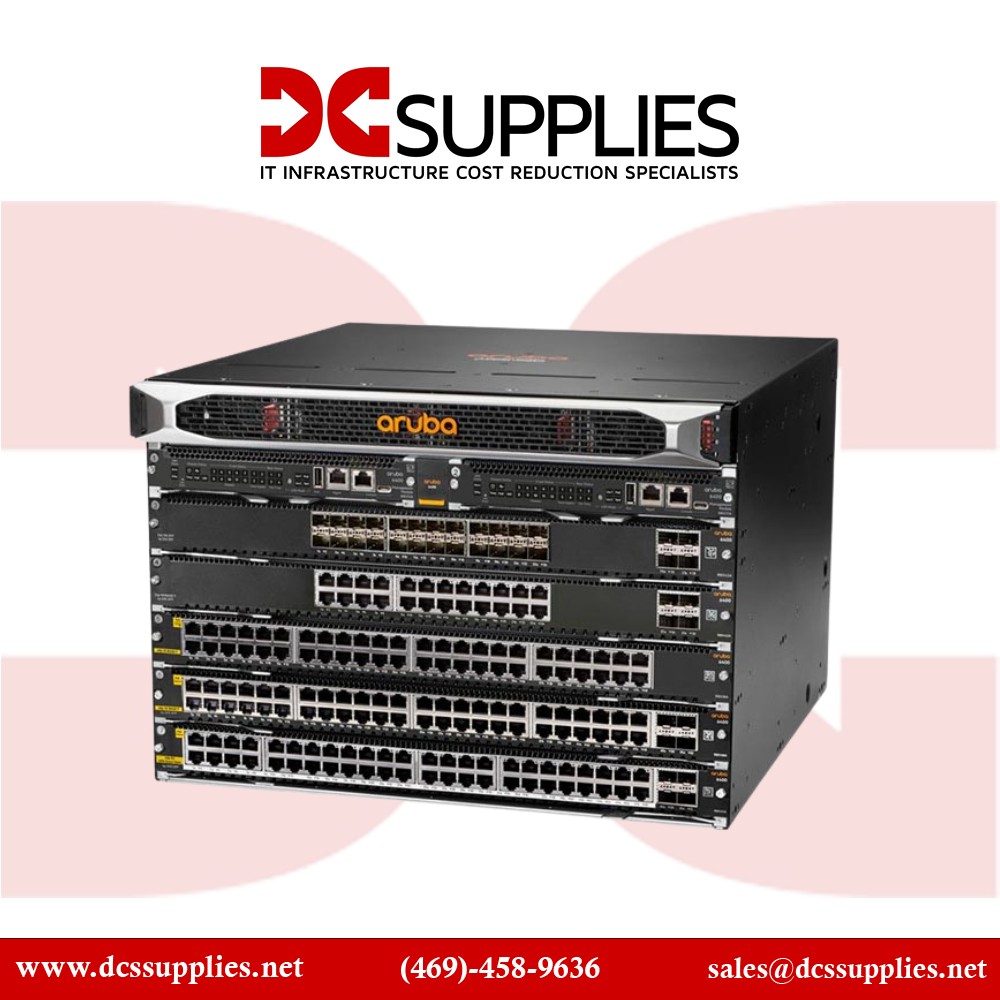

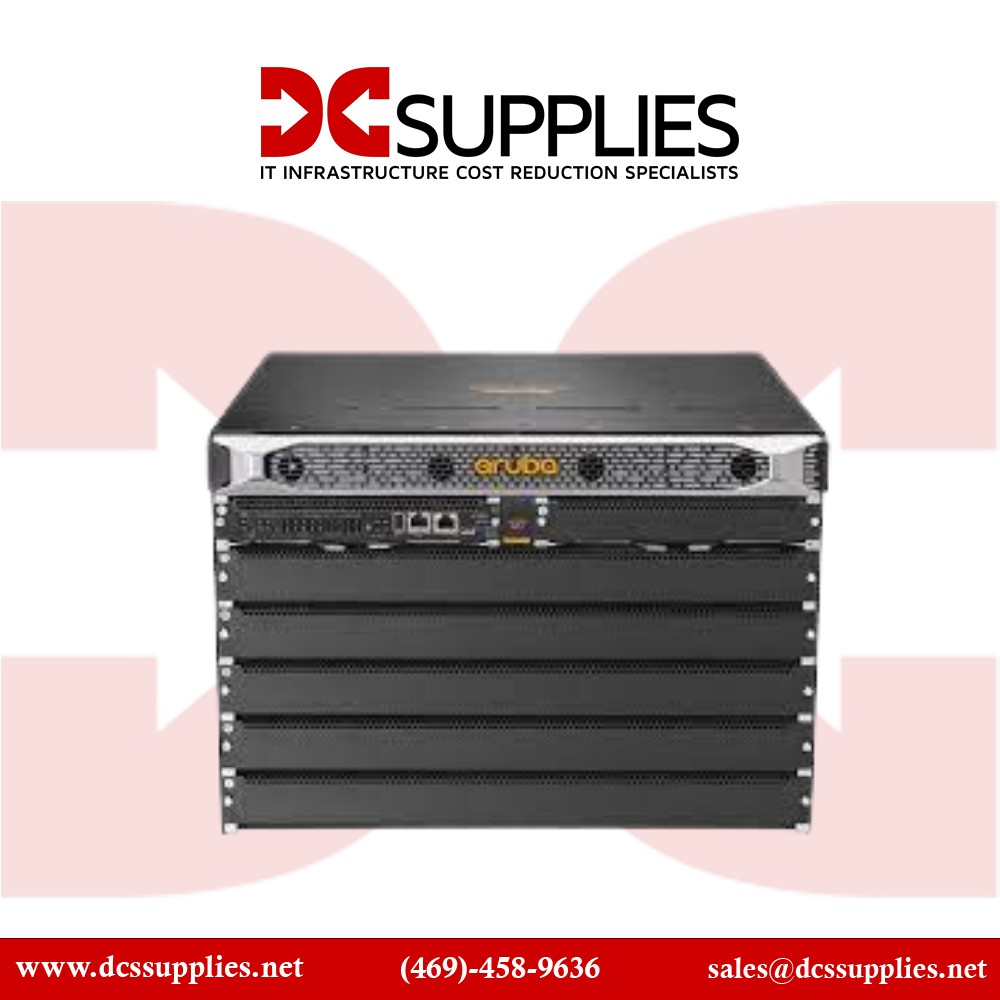

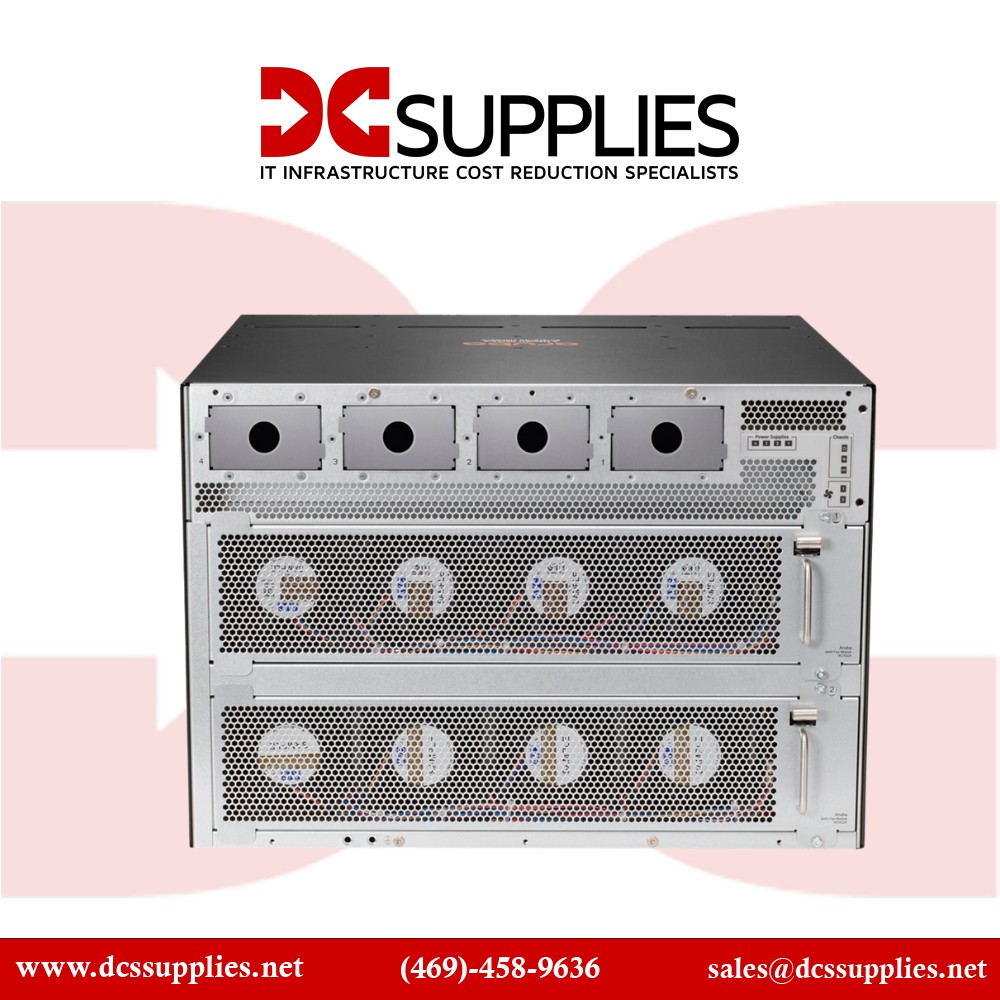

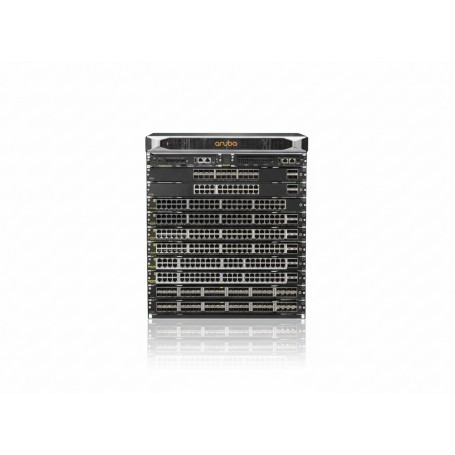

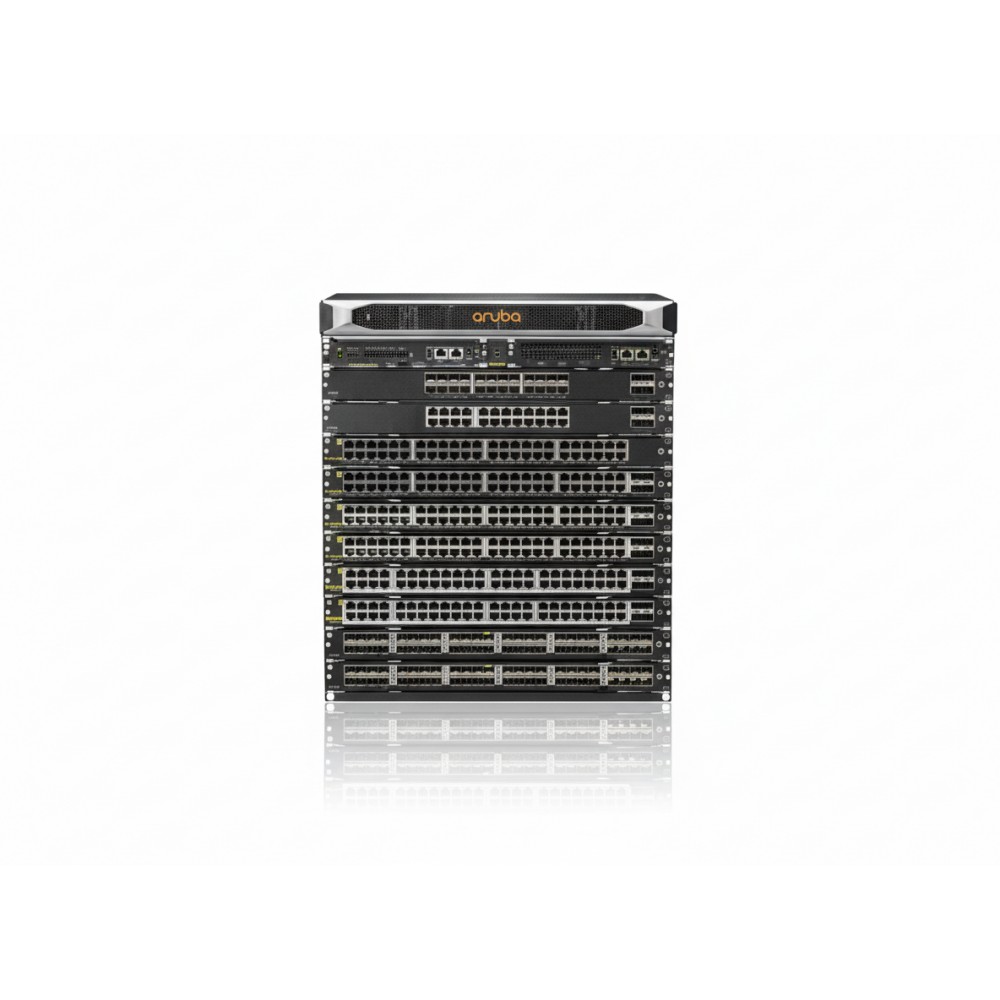

HPE R0X27-61001 Aruba CX 6410 v2 Modular Switch Chassis
Overview
The HPE R0X27-61001 is a modular 10-slot chassis designed for the Aruba CX 6410 v2 switch series, enabling scalable aggregation or core network deployments. It supports redundant management modules, line-cards and power/fan modules for high-availability environments. The chassis accommodates line-cards offering multi-gigabit access, PoE / UPoE support, and high-density uplinks, making it suitable for campus and data-center wiring-closet architectures. It integrates with the Aruba AOS-CX operating system for unified management, automation and network-fabric visibility.
Key Features
Up to 10 open module slots for line-cards and fabric modules
Dual management-module bays plus hot-swappable fan trays and power supplies
Supports line-cards with multi-gigabit (1/2.5/5/10/25/100 Gb) and PoE / UPoE capabilities
Rack-mountable chassis engineered for high-density aggregation or core use
Front-serviceable modules and modular architecture for ease of upgrade and maintenance
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X27-61001 |
| Product Type | Modular switch chassis (Aruba CX 6410 v2) |
| Module Slots (Line Cards) | Up to 10 open slots |
| Management Module Slots | 2 |
| Fan Tray Slots | 4 front-serviceable fan trays |
| Power Supply Bays | Up to 4 modular power supplies (ordered separately) |
| Fabric Capacity (Switching) | Up to ~28 Tbps (max fully populated configuration) |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 0 °C to 45 °C |
| Supported Altitude | Up to 10,000 ft (3,048 m) |
| Airflow Direction | Front-to-back |
| Form Factor (H × W × D in inches) | Approximately 20.8 × 17.5 × 17.7 in |
| Weight (empty chassis) | Approximately 64.7 lbs |
| PoE Support via Line Cards | Supports IEEE 802.3af/at/bt (dependent on installed modules) |
| Architecture | Modular chassis with mixed-speed interface support (1/2.5/5/10/25/100 Gb) |
