Detailed Specifications

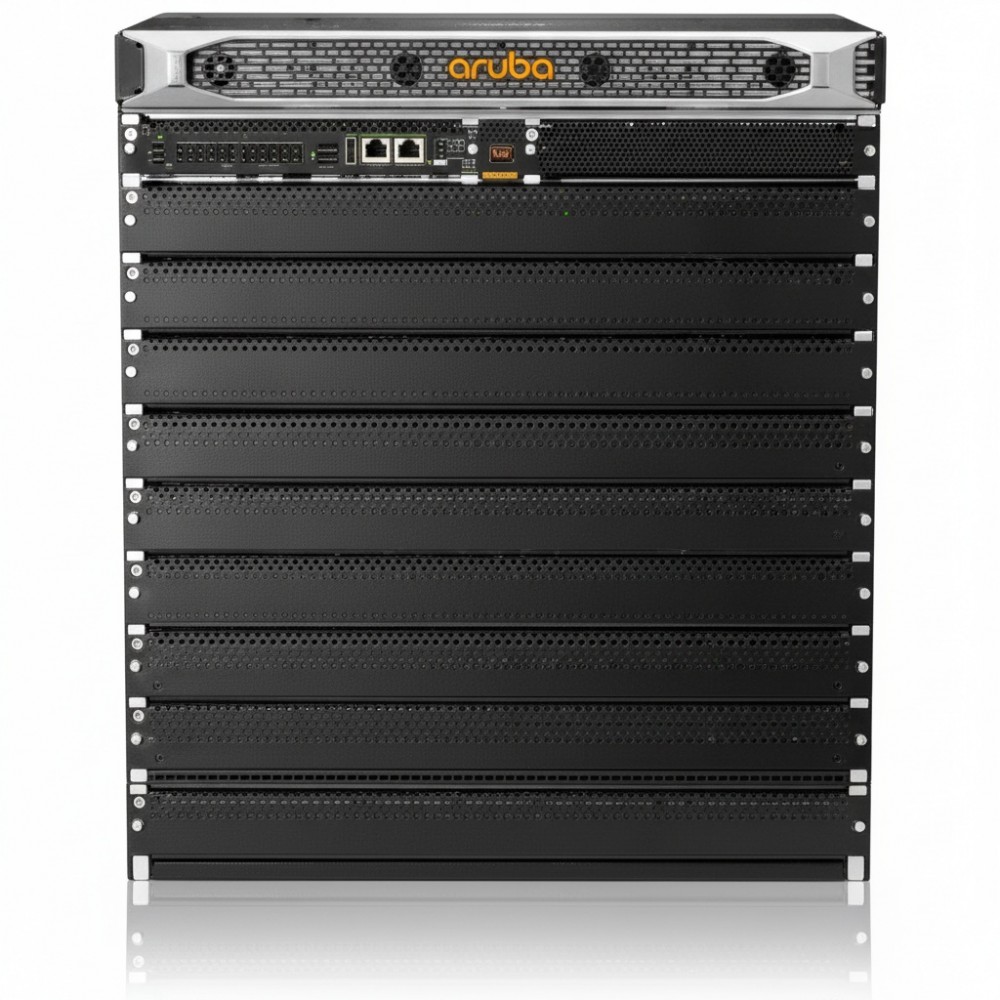

HPE R0X27A Aruba CX 6410 Switch Chassis
Overview
The HPE R0X27A is a modular switch chassis built for the Aruba CX 6410 series, aimed at enterprise campus or data-center core/aggregation deployments. It supports up to ten high-density line-card slots, redundant power and fan modules, and enables non-blocking multi-terabit switching fabrics. The chassis fits standard rack-mount installations and integrates with Aruba's AOS-CX operating system for advanced programmability, analytics and high-availability configurations. It is suited to environments where growth, serviceability and high throughput are required.
Key Features
Up to 10 line-card slots allow incremental interface capacity
Dual management-module bays with hot-swappable fan trays and power modules
High-density support for 1/2.5/5 Gb Smart-Rate access, 10/25/100 Gb uplinks
Non-blocking switching fabric with up to 28 Tbps fabric capacity
Front-to-back airflow and rack-mount form-factor for data-center standard use
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | R0X27A |
| Product Type | Modular switch chassis (Aruba CX 6410 series) |
| Module Slots (Line Cards) | Up to 10 open module slots |
| Management Module Slots | 2 |
| Fan Tray Slots | 4 front serviceable fan trays |
| Power Supply Bays | Supports up to 4 modular power supplies |
| Fabric Capacity (Switching) | Up to 28 Tbps |
| Throughput | Up to approx. 11.4 Bpps (packets per second) |
| Input Voltage | 110-127 / 200-240 VAC (PSUs ordered separately) |
| Form Factor (H × W × D) | Approx. 20.8 × 17.5 × 17.7 in |
| Weight | Approx. 64.7 lbs (29.3 kg) empty chassis |
| Operating Temperature | 0 °C to 45 °C |
| Airflow Direction | Front to Back |
| PoE Support via Line Cards | Supports IEEE 802.3af/at/bt (line-card dependent) |
| Max Altitude | Up to 10,000 ft (3,048 m) |
| Architecture | Modular chassis supports mixed-speed interface modules |
